Cable Tester Underground Fiber Optic Cable Locator Lan Cable Tester

FOB Price

USD $100 - $107 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HOTOTECH		Place of Origin	China
Model Number	MY6818

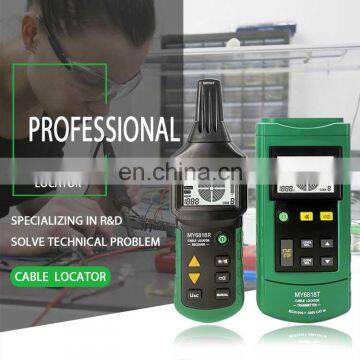

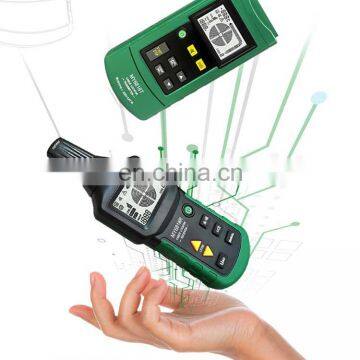

Cable Tester Underground Fiber Optic Cable Locator Lan Cable Tester

Product Description

Technical parameters of transmitter

Out putsignal	125kHz
External voltage identification range	DC 12-400 V±2.5%;AC 12-400V (50~ 60Hz±2.5%
Display	LCD, with function display and column chart
External voltage's dielectric strength	Max. 400V ACID
Overvoltagetype	CAT III 300V
Pollution degree	2
Power supply	1*9V, IEC 6LR61
Power onsumption MIN current	About 31mA
Power onsumption MIN current	About 115mA
Fuse	F 0.5A 1OOOV, 6.3X32mm
Range of temperature In work	0°C to 40°C,With Maximum relative humidity of 80% (non condensation)
Range of temperature In storage	-20°C to 60°C.with maximum relative humiditv of 80% (non condensation)
Altitude	Max. 2000m
Dimensions (HWD)	190mmx89mmx42.5mm
Weight	Without battery 360g

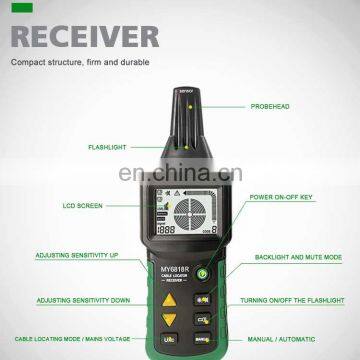

Technical parameters of receiver

Depth of tracking	The depth of tracking depends on the material and specific applications
Cable locating mode Single pole application	About 0-2m
Cable locating mode Dual pole application	About 0-0.5m
Cable locating mode Single loop line	Up to 2.5m
Grid voltage identification	About 0-0.4m
Display	LCD with funcation display and column chart
Power supply	6*1.5V,IEC Lr03
Power consumption MIN current	About 32 mA
Power consumption MAX current	About 89mA
Range of temperature In work	0°C to 40°C,with maximum relative humidity of 80% (non-condensation)
Range of temperature In storage	-20℃ to 60℃ with maximum relative humidity of 80% (non-condensation)
Altitude	Max. 2000m
Dimensions (HWD)	241.5mmx78mmx38.5mm
Without battery	About 280g
