Home > Instruments & Meters > Meter for Electricity > Multimeter > 1000VDC or 700VAC LCD,1999 CountsDigital Multimetro-UK-830LN
US$ 3 - 3
MOQ: 40 Sets
Key Specifications
Get Latest Price
Brand Name:
custom made
Place of Origin:
Guangdong, China
Model Number:
UK-830LN
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mini Digital Multimeter Universal Meter 0-600V Test AC DC Voltage MetersUS$ 3.5 - 3.5MOQ: 10 Sets -
DT9205A 1999 Maximum Display Pocket MultimeterUS$ 4.5 - 4.5MOQ: 40 Sets
-
DT 9205A Multimeters 1000V LCD Display Handheld Low Price Digital Multimeter in MultimetroUS$ 4 - 4MOQ: 500 Sets
-
DT 9205A Multimeter AC DC 1000V LCD Display Low Price Digital Multimeters Automatic Voltage in MultimetroUS$ 4.3 - 4.3MOQ: 500 Sets
-
FS9800 Multimeter Digital Multimeter, 20A/20A, 50 MOhms, 1000VUS$ 6 - 6MOQ: 40 Sets
Brand Name
custom made
Place of Origin
Guangdong, China
Model Number
UK-830LN
Operating Temperature
0 to 40℃
Dimensions
31.5*91*189mm
Measuring Inductance Range
NC
Measuring Capacitance Range
200μF
Measuring Resistance Range
200MΩ
Measuring Voltage Range
1000VDC or 700VAC
Measuring Current Range
20A
Digital Multimetro-UK-830LN
| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 200mV | 100μV | ±(0.5%+2) |
| 2V | 1mV | |
| 20V | 10mV | |
| 200V | 100mV | |
| 1000V | 1V | ±(0.8%+2) |
| AC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 200mV | 100μV | ±(1.2%+3) |
| 2V | 1mV | ±(0.8%+3) |
| 20V | 10mV | |
| 200V | 100mV | |
| 700V | 1V | ±(1.2%+2) |
| DC CURRENT | ||
| Range | Resolution | Accuracy |
| 2mA | 1μA | ±(1.2%+2) |
| 20mA | 10μA | |
| 200mA | 100μA | ±(1.4%+2) |
| 20A | 10mA | ±(2.0%+2) |
| AC CURRENT | ||
| Range | Resolution | Accuracy |
| 2mA | 1μA | ±(1.2%+3) |
| 20mA | 10μA | |
| 200mV | 100μA | ±(1.8%+3) |
| 20A | 10mA | ±(3.0%+7) |
| RESISTANCE | ||
| Range | Resolution | Accuracy |
| 200Ω | 0.1Ω | ±(1.0%+2) |
| 2kΩ | 1Ω | ±(0.8%+2) |
| 20kΩ | 10Ω | |
| 200kΩ | 100Ω | |
| 2MΩ | 1kΩ | |
| 20MΩ | 10kΩ | ±(1.2%+2) |
| 200MΩ | 100kΩ | ±(5.0%+10) |
| CAPACITANCE | ||
| Range | Resolution | Accuracy |
| 2nF | 1pF | ±(4.0%+5) |
| 20nF | 10pF | |
| 200nF | 100pF | |
| 2μF | 1nF | |
| 200μF | 100nF | |
| FREQUENCY | ||
| Range | Resolution | Accuracy |
| 2kHz | 1Hz | ±(2.0%+5) |
| 20kHz | 10Hz | ±(1.5%+5) |
| TEMPERATURE | ||||
| Range | Resolution | Accuracy | ||
| -20℃ to 0℃ | 0℃ to 400℃ | 400℃ to 1000℃ | ||
| -20℃ to 1000℃ | 1℃ | ±5.0% of rdg ±4 digits | ±1.0% of rdg ± 3 digits | ±2.0% of rdg |

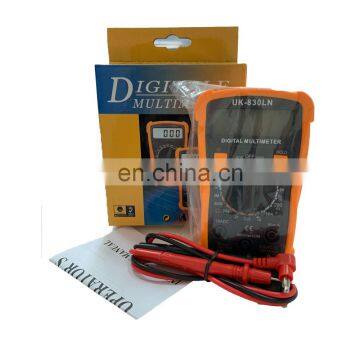

| Packaging List | |
| Instrument Case | 1pcs |
| Test Line | 2pcs(red&black) |
| Standard Resistor | 1set |
| user manual | 1pcs |
