UNI-T UT278A Earth Leakage Current Ground Resistance Clamp Meter

UNI-T UT278A Earth Leakage Current Ground Resistance Clamp Meter photo-1

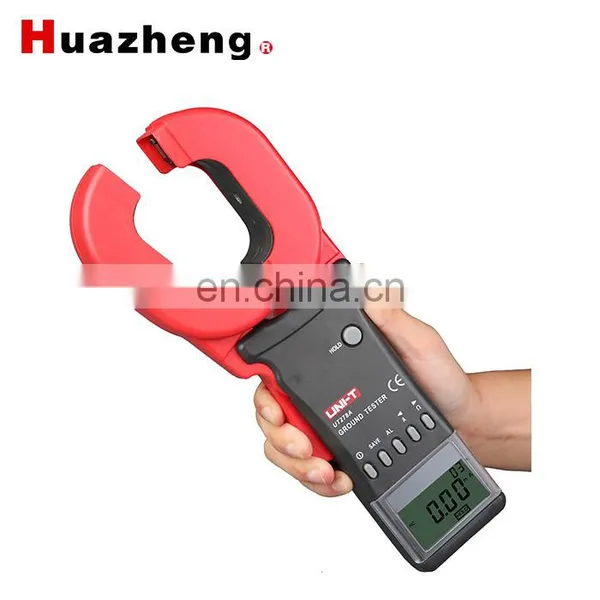

UNI-T UT278A Earth Leakage Current Ground Resistance Clamp Meter photo-2

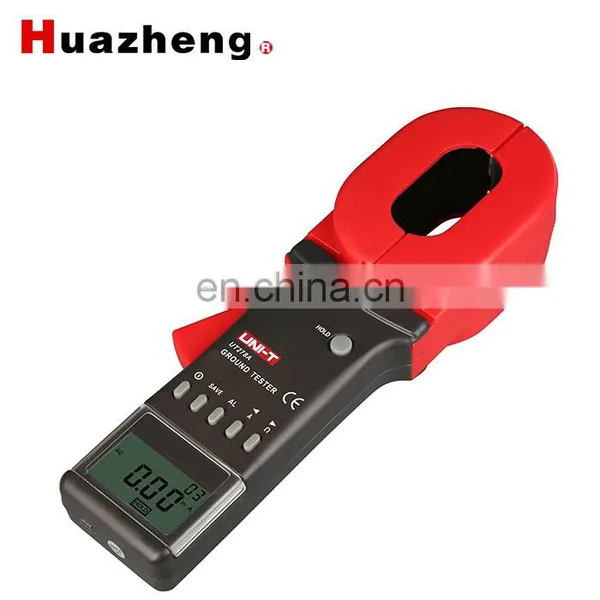

UNI-T UT278A Earth Leakage Current Ground Resistance Clamp Meter photo-3

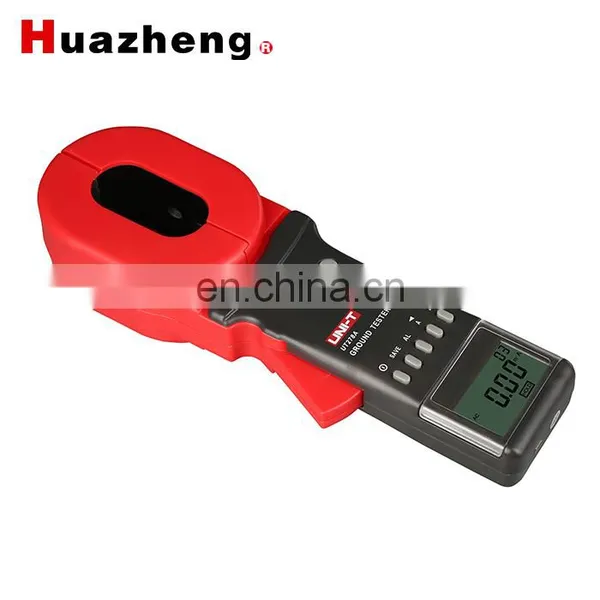

UNI-T UT278A Earth Leakage Current Ground Resistance Clamp Meter photo-4

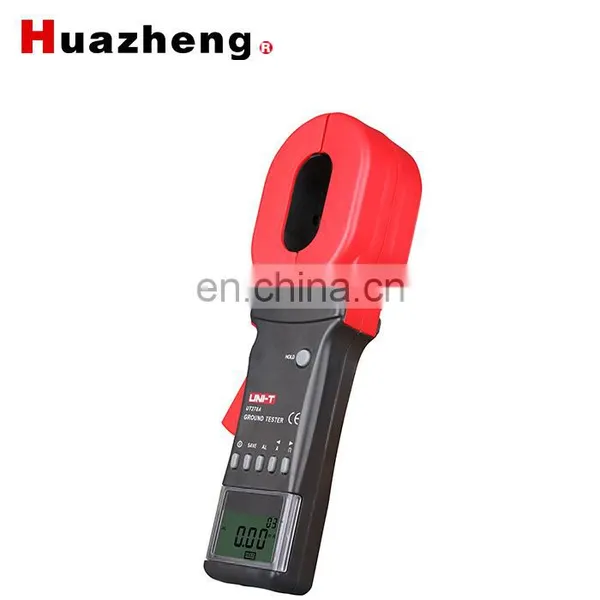

UNI-T UT278A Earth Leakage Current Ground Resistance Clamp Meter photo-5
US$ 80 - 500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
UNI-T
Place of Origin:
Hebei, China
Model Number:
UT278A
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.
Brand Name UNI-T
Place of Origin Hebei, China
Model Number UT278A
Weight 1.3kg
Operating Temperature -10~40C
Dimensions 285*85*56mm
Measuring Inductance Range 40Hz~100kHz
Measuring Capacitance Range 40nF~4000
Measuring Resistance Range 0.01-1200Ω
Measuring Voltage Range AC 0~600V; resolution 0.01V
Measuring Current Range AC 0.0A~2000A;resolution 0.1A
Display Type Digital Only

UNI-T UT278A Earth Leakage Current Ground Resistance Clamp Meter



Product Description

Ground Resistance Clamp Meter specifications

UT270 series clamp earth resistance tester is widely used in electric power, telecommunications, meteorology, oil field, construction and industrial electrical equipment, such as the ground resistance measurement, loop resistance measurement. In the measurement of the grounding system with a loop, it is not necessary to disconnect the ground from the assembly line, without the need of auxiliary electrode, safe and fast.

UT278A series clamp grounding resistance instrument with long jaw and round jaw points, long jaw, especially suitable for the flat ground.



Specifications

Range

Best Accuracy

Model



UT278A

Earth Ground Resistance (Ω)

0.01Ω-0.099Ω

±(1%+0.01)



0.1Ω-0.99Ω

±(1%+0.01)



1.0Ω-49.9Ω

±(1%+0.1)



50Ω-99.5Ω

±(2%+0.5)



100Ω-199Ω

±(3%+1)



200Ω-395Ω

±(6%+5)



400Ω-590Ω

±(10%+10)



600Ω-800Ω

±(20%+20)



800Ω-1200Ω

±(25%+30)

Leakage Current(A)

0mA-9mA

±(2.5%+1)



10mA-99mA

±(2.5%+5)



100mA-299mA

±(2.5%+10)



0.30A-2.99A

 ±(2.5%+0.1)



3.0A-9.9A

±(2.5%+0.3)



10.0A-20.0A

±(2.5%+0.5)



3A-30A

±(2.5%+0.5)

Features

Display Count

4 Digits Display LCD

Auto Range



Jaw Capacity



32mm

Single Measure Time

1 Second

Resistance Measurement Frequency

>1KHz

Current Measurement Frequency

50Hz/60Hz

Resistance Limit Alarm

1Ω-199Ω

Current Limit Alarm

1mA-499mA

Beeper and Light Alarm



Jamming Signal Recognition



Over-Range Display



Low Battery Indication



Data Logging



99
