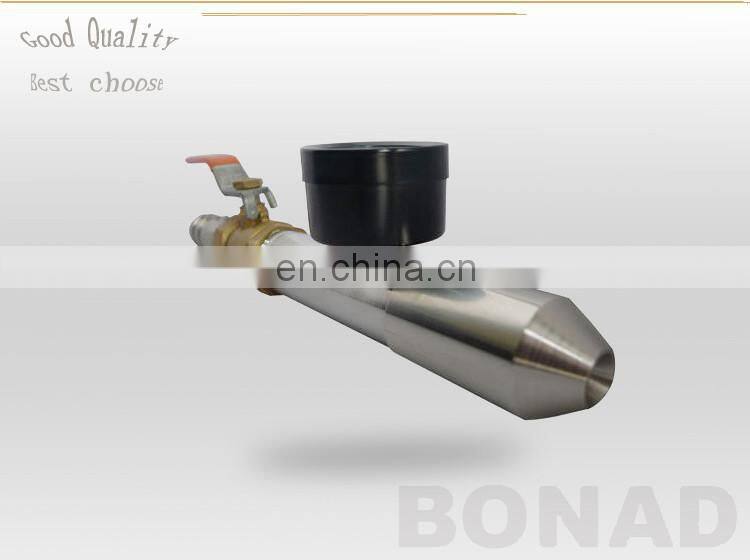

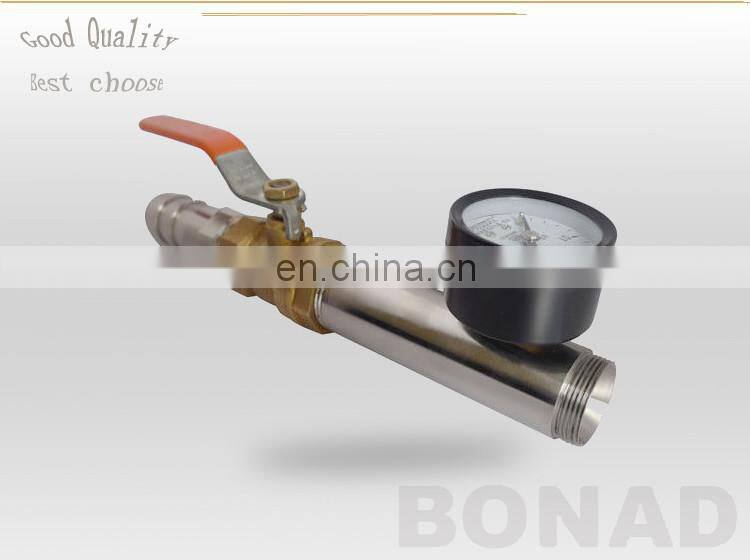

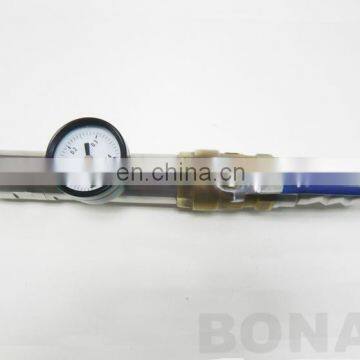

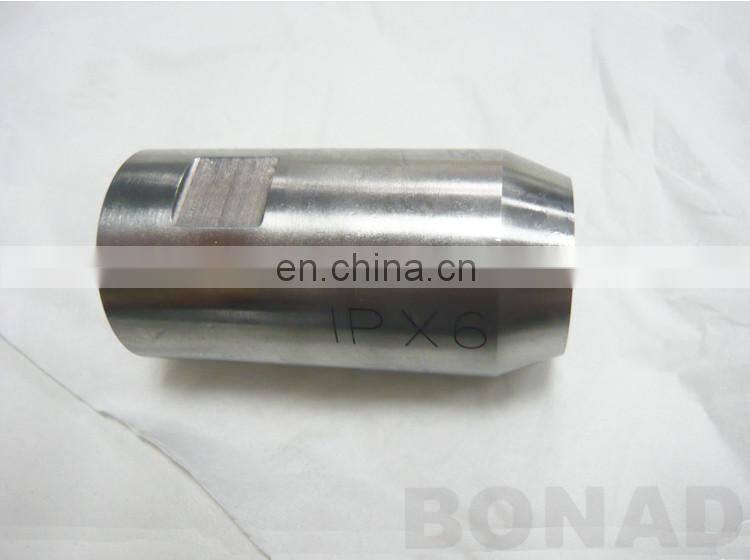

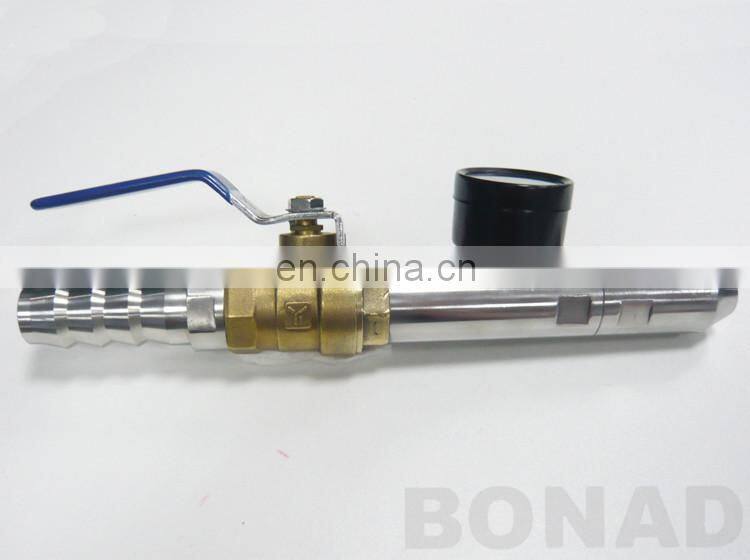

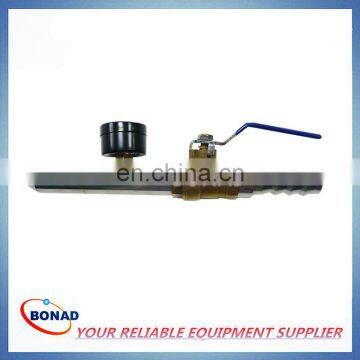

IP Waterproof Test Equipment IPX5 and IPX6 Jet Nozzle With Pressure Gauge

IP waterproof Test Equipment  IPX5 and IPX6 Jet Nozzle with pressure gauge

IEC60035-5 IEC60529 Jet Nozzle IPX5 and IPX6 call for a specimen to be sprayed with water from all practicable directions. IPX5 specifies a nozzle with a 6.3mm diameter opening and a flow of 12.5l/min. IPX6 specifies a nozzle with a 12.5mm diameter opening and a flow rate of 100L/min.

2.Applications:

Test Condition:

1,The tests are conducted with fresh water.

2,During the tests for IPX1-IPX6 the water temperature should not differ by more than 5 K from the temperature of the specimen under test. If the water temperature is more than 5K below the temperature of the specimen a pressure balance shall be provided for the enclosure.

3,During the purpose of the tests ,the surface area of the enclosure is calculated with a tolerance of 10%.

4,Adequate safety precaution should be taken when testing the equipment in the energized condition.

• Stainless steel nozzles
• Valve for water flow regulation and shut off
• Pressure gauge
• Hose connector
• Interchangeable nozzles

Conforms To

IEC60529, 60598-1, 60335-1, EN60335-1, 60950,60529, GB4208,2423., 7000.1 GB/T4942.2, 4706.1
