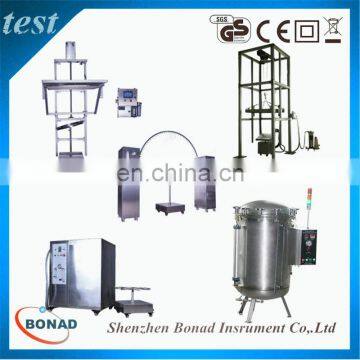

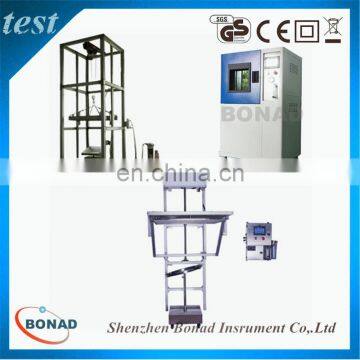

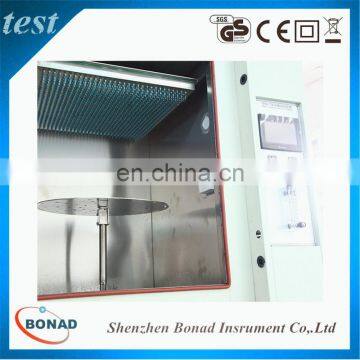

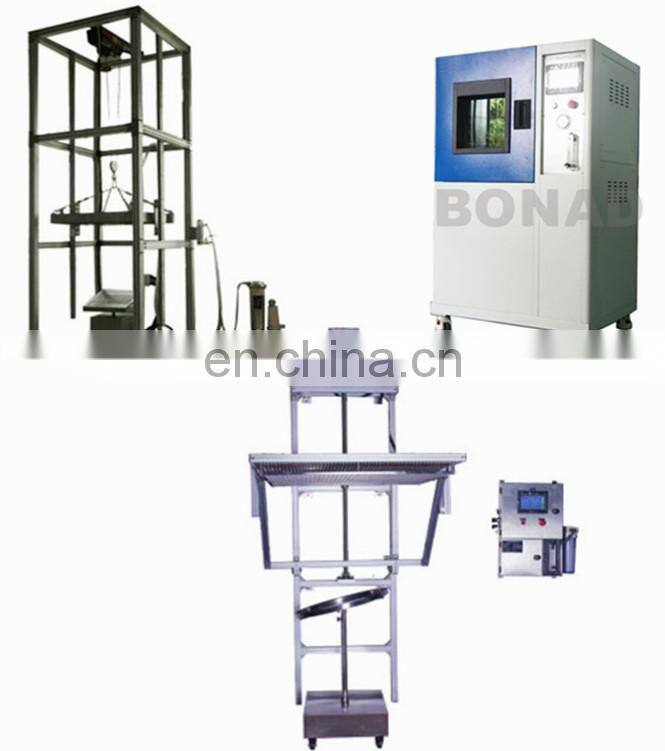

IP Rating Ipx1 Ipx2 Ipx3 Ipx4 Test Equipment

Technical parameter :

No.

model

BND-IPX12A-600

1

Drip area

600*600 mm

2

Inner size

L800*D800*H1000mm

3

Outer size

About 1250*1000*1750mm

4

Turntable diameter

600 mm

5

Turntable bearing

50KG

6

Turntable lifting range

350-700 mm

7

Dripping aperture

0.4mm.

8

Distance between holes

20*20 mm

9

Rainfall

1-5 mm/min(±0.5mm/min)

10

Flow adjustment mode

Manual

11

Drop box height

stationary

12

Turntable speed

1 r/min

13

Turntable tilt

0° or 15°

14

Testing times

0-999 min

15

protector

Leakage, water short-circuit

16

voltage(V)

220V

17

power(KW)

1.0

18

standard

IEC60529:1989+A1:1999,GB4208,GB7000.(IPX1,IPX2)

Technology parameter:

No.

Model

BND-IPX34C-R1200

1

Swing pipe size (mm)

R1200 (Can customize R1000,R800,R600,R400, R200swing pipe)

2

External dimensions (mm)

L3200*D2400*H2400

3

Flow (L / mm))

0-6L/min

4

Turntable Size (mm)

800 (can customize600,400,200 turntable)

5

Turntable height adjustable range

1350-1950mm

6

Pendulum tube diameter (mm)

>15

7

Water pore size (mm)

0.4 mm

8

Pendulum tube angle

120º(IPX3), 350º(IPX4)or customize

9

Swing speed tube

120°(to and fro) 4S,360°(to and fro)

12S(accurate control)or customize

10

Swing pipe material

                  SUS304 stainless steel

11

Turntable speed test

1-5r/min(accurate control)

12

protective device

Leakage, water shortage, short circuit

13

Power supply (V)

220V

14

 Power(KW)

1

15

Standards

IEC60529:1989+A1:1999,(IPX3,IPX4)
