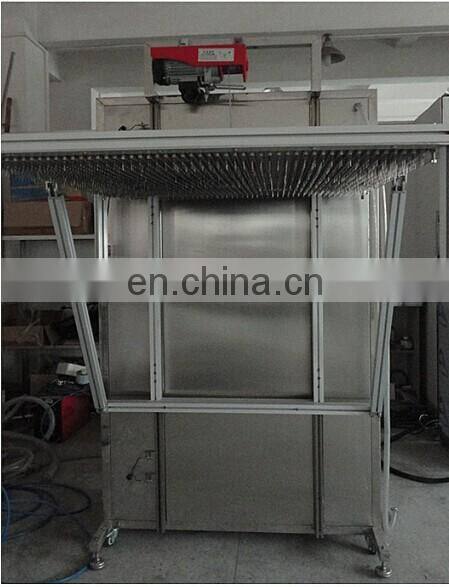

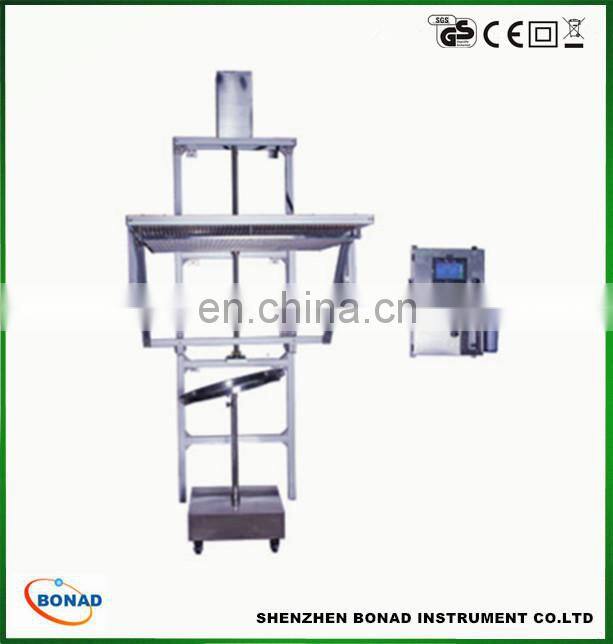

IPX1 IPX2 Fixed Type Vertical Rain Drop Test Chamber

IPX1 IPX2  Fixed  Type Vertical Rain Drop Test Chamber

Appliance:

According to IEC60529: 1989 + A1: 1999, GB4208-2008, GB7000.1-2002 specified in the IPX1 / 2/3/4 test requirements of the standard manufacturing.

Drop rain rain chamber Uses:
This equipment is main to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components. After the test, through the test result to determine whether the performance of products meet the requirements in order to facilitate product design, improvement, testing and factory inspection.

Drop rain rain chamber Features:
1 This equipment is suitable for the waterproof testing of IPX1, IPX2, IPX3 and IPX4.

2 inner box and turntable all made by SUS304 # stainless steel plate , to ensure it dose not rust after long-term use

3 Pendulum tube drive use domestic high-quality stepper motor, swing tube angle, swing tube speed, turntable speed and other parameters can be set and displayed on the touch screen, swing tube speed and angle precision adjustable.

4 Pendulum flow and pressure are manually adjustable on the panel .

5 Pendulum pipe water supply line is equipped with a filter, can filter impurities in water, effectively prevent the nozzle tube clogging.

6 Water into the water tank automatically controlled by the float valve water ,Pump selection of domestic brands  stainless steel self-priming pump ,The water tank is made of high quality SUS304 # stainless steel welded together, the pipeline is made with domestic famous brand (LianSu), and the water pipe is made of stainless steel, which is made of domestic famous brand (Guangzhou Lingxiao) The entire waterway is made of high-quality SUS304 # stainless steel and PVC material, to prevent pipe rust, affect the test results.

7 turntable using domestic high-quality stepper motor, speed and angle can be set on the touch screen ,Precision stepless in the standard range

8 Taiwan Wei Lun 7-inch touch screen + Panasonic PLC, electrical components used such as LG, Omron and other imported brands, wiring process in line with national standards

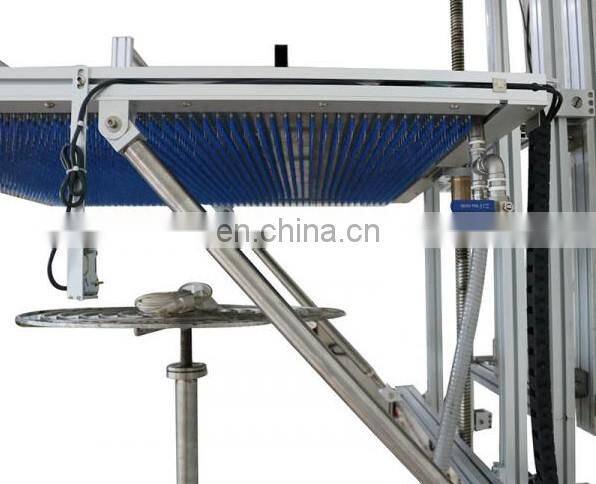

9 The drip box is made of stainless steel with high-rust-proof design, nozzle contact position using a brass conical design, convenient and timely replacement and replacement of the needle.

Technical parameter:
