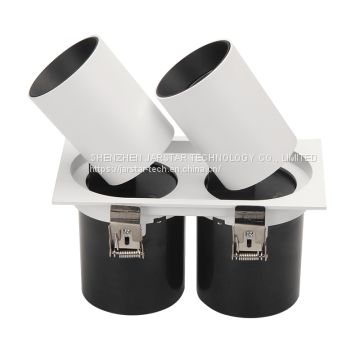

LED Grille Downlight RC White LED Grille Downlight White LED Grille Downlight manufacturer
Model: JST-RC
Wattage: 12W-70W
LED Chip: Citizen/Cree/Epistar
Driver Brand: OSRAM/Philips/Lifud
RA: ＞90
Finish Color: White/Black/Customized
Beam Angle: 15°/24°/36°/60°
Size: 160mm/175mm/330mm
Cutout: 150mm/160mm/320*160mm
LED Grille Downlight Description
New grille spot light die-casting high-rank aluminum integrated heat sink. international top COB CITIZEN chip, high quality driver, combined with JST exclusive optical system of lens and , Standard driver originally researched and developed by JST, stable specifications, glare-free, good heat sink, brilliant quality, more than 50,000 hours life span.
custom color LED Grille Downlight Advantages
1. Patent design with multi-funcations, Hiding light body and Rotable 360°
2. Optic lens stay in deep of the housing to perfermance unti-glare UGR
3. High Lighting perfermance to save 60%-80% energy
4. Improved prdocution visibility through High color rendering CRI>90
5. Best same color perfermance at same CCT because the COB SDCM
6. Long life time CITIZEN COB to meet 5 years warranty
7. Different installation ways for option: Recessed and Surfacemounted
8. Different Control system: Triac dimming, 1-10V dimming, Dali dimming, App dimming
Long lifespan LED Grille Downlight Specification
Model |
Power |
CRI |
CCT |
PF |
Current |
Input Voltage |
Beam Angle |
Dimension |
Cutout |
JST-RC |
12W |
>80/90 |
2700K-5000K |
>0.90 |
0.30A |
AC220-240V |
15°/24°/36°/60° |
L98*H120mm |
90mm |
JST-RC |
15W |
>80/90 |
2700K-5000K |
>0.90 |
0.35A |
AC220-240V |
15°/24°/36°/60° |
L98*H120mm |
90mm |
JST-RC |
20W |
>80/90 |
2700K-5000K |
>0.90 |
0.50A |
AC220-240V |
15°/24°/36°/60° |
L130*H135mm |
120mm |
JST-RC |
25W |
>80/90 |
2700K-5000K |
>0.90 |
0.60A |
AC220-240V |
15°/24°/36°/60° |
L130*H135mm |
120mm |
JST-RC |
30W |
>80/90 |
2700K-5000K |
>0.90 |
0.75A |
AC220-240V |
15°/24°/36°/60° |
L160*H155mm |
140mm |
JST-RC |
35W |
>80/90 |
2700K-5000K |
>0.90 |
0.90A |
AC220-240V |
15°/24°/36°/60° |
L160*H155mm |
140mm |
JST-RC |
12W*2/3 |
>80/90 |
2700K-5000K |
>0.90 |
0.30A*2/3 |
AC220-240V |
15°/24°/36°/60° |
L185*W100*H120mm |
175*90mm |
JST-RC |
15W*2/3 |
>80/90 |
2700K-5000K |
>0.90 |
0.35A*2/3 |
AC220-240V |
15°/24°/36°/60° |
L185*W100*H120mm |
175*90mm |
JST-RC |
20W*2/3 |
>80/90 |
2700K-5000K |
>0.90 |
0.50A*2/3 |
AC220-240V |
15°/24°/36°/60° |
L240*W130*H135mm |
230*120mm |
JST-RC |
25W*2/3 |
>80/90 |
2700K-5000K |
>0.90 |
0.60A*2/3 |
AC220-240V |
15°/24°/36°/60° |
L240*W130*H135mm |
230*120mm |
Application
Fashion stores, Stations, Hotels, Offices, Shopping malls, Clubs, Supermarkets etc.
JST is an innovative ODM and cheap led downlight, LED grille downlight and hotels LED track light manufacturer. We are the trustworthy company with good reputation.
