Home > Products > LED Grille Downlight > LED Grille Downlight RC Series Three Head custom LED Grille Downlight for sale

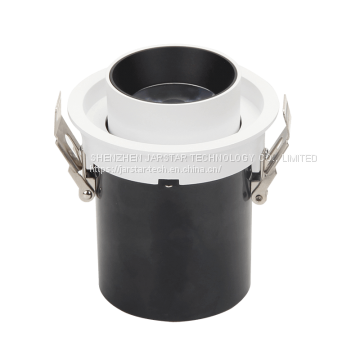

LED Grille Downlight RC Series Three Head custom LED Grille Downlight for sale
- 100000 Piece / Pieces per Month
- Shenzhen
- T/T PayPal
- 3 days
Product Description
LED Grille Downlight RC Series Three Head custom LED Grille Downlight for sale White LED Grille Downlight manufacturer
Model: JST-RC
Wattage: 7W-70W
LED Chip: Citizen/Cree/Epistar
Driver Brand: OSRAM/Philips/Lifud
RA: >90
Finish Color: White/Black/Customized
Beam Angle: 15°/24°/36°/60°
Size: 160mm/175mm/330mm
Cutout: 150mm/160mm/320*160mm
Description
New grille spot light die-casting high-rank aluminum integrated heat sink. international top COB CITIZEN chip, high quality driver, combined with JST exclusive optical system of lens and , Standard driver originally researched and developed by JST, stable specifications, glare-free, good heat sink, brilliant quality, more than 50,000 hours life span.
Jarstar-LED Grille Downlight Advantages
1. Patent design with multi-funcations, Hiding light body and Rotable 360°
2. Optic lens stay in deep of the housing to perfermance unti-glare UGR<19
3. High Lighting perfermance to save 60%-80% energy
4. Improved prdocution visibility through High color rendering CRI>90
5. Best same color perfermance at same CCT because the COB SDCM<3
6. Long life time CITIZEN COB to meet 5 years warranty
7. Different installation ways for option: Recessed and Surfacemounted
8. Different Control system: Triac dimming, 1-10V dimming, Dali dimming, App dimming
Specification
Model | Power | CRI | CCT | PF | Current | Input Voltage | Beam Angle | Dimension | Cutout |
JST-RC | 7W*3 | >80/90 | 2700K-5000K | >0.90 | 0.30A*2/3 | AC220-240V | 15°/24°/36°/60° | L192*W72*H110mm | 182*65mm |
JST-RC | 12W*3 | >80/90 | 2700K-5000K | >0.90 | 0.30A*2/3 | AC220-240V | 15°/24°/36°/60° | L270*W100*H120mm | 260*90mm |
JST-RC | 15W*3 | >80/90 | 2700K-5000K | >0.90 | 0.35A*2/3 | AC220-240V | 15°/24°/36°/60° | L270*W100*H120mm | 260*90mm |
JST-RC | 20W*3 | >80/90 | 2700K-5000K | >0.90 | 0.50A*2/3 | AC220-240V | 15°/24°/36°/60° | L345*W130*H135mm | 335*120mm |
JST-RC | 25W*3 | >80/90 | 2700K-5000K | >0.90 | 0.60A*2/3 | AC220-240V | 15°/24°/36°/60° | L345*W130*H135mm | 335*120mm |
Application
Fashion stores, Stations, Hotels, Offices, Shopping malls, Clubs, Supermarkets etc.
As a professional LED downlights exporter, we can supply high quality energy saving downlights with cheap price.
/led-grille-downlight/led-grille-downlight-rc-series-three-head.html
Contact Us
- SHENZHEN JARSTAR TECHNOLOGY CO., LIMITED
- Contact nameSteven
- Phone86-0755-21005325
- AddressLonghua District Shenzhen,Guangdong
LED Downlight | LED Track Light | LED Linear Light | LED Hotel Downlight |
LED Grille Downlight | LED Surface Mounted Downlight | LED Magnet Light |
- LED Down Light Model: MDL-RDL13
- LED Down Light Model: MDL-RDL15
- LED Down Light Model: MDL-RDL17
- LED Down Light Model: MDL-RDL16
- LED Down Light Model: MDL-ADL
- LED Down Light Model: MDL-RDL12
- LED Down Light Model: MDL-RDL14
- LED Down Light Model: MDL-RDL18
- LED Down Light Model: MDL-RDL19
- LED Down Light Model: MDL-RDL29
- LED Magnet Light MG SP Series Customized LED Magnet Light Supplier/Exporter led magnet light for hotels
- LED Magnet Light MG SP05-6W Series led bar magnet recessed adjustable LED Magnet Light price
- LED Magnet Light MG TK G Series exhibition lighting solutions light bar magnets LED Downlights Exporter
- LED Surface Mounted Downlight SMC Series Power Saving Downlights company White LED Surface Mounted Downlight
- LED Surface Mounted Downlight SME Series waterproof LED Downlight for sale surface mounted downlight price

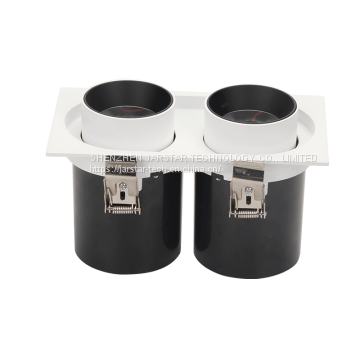

- LED Grille Downlight RC Series Two Head custom color LED Grille Downlight Customized LED Grille Downlight
