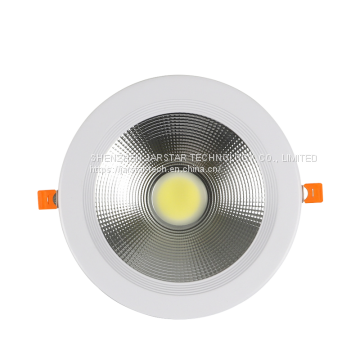

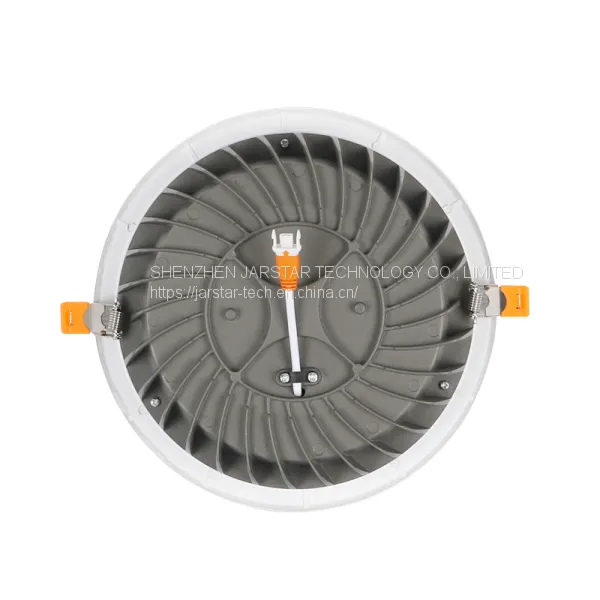

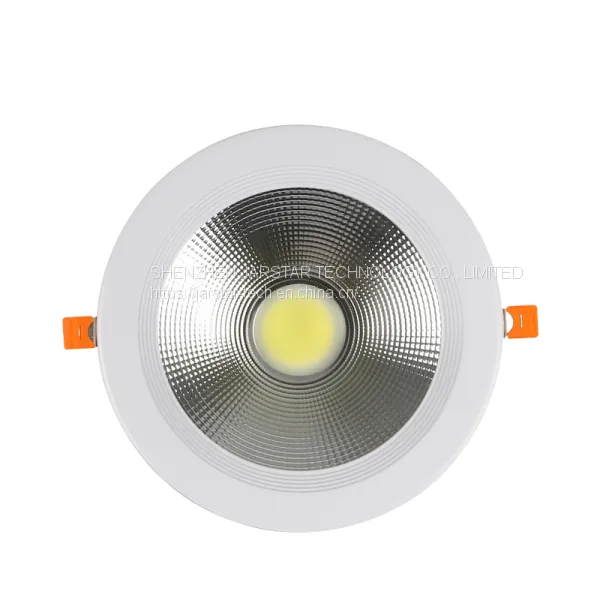

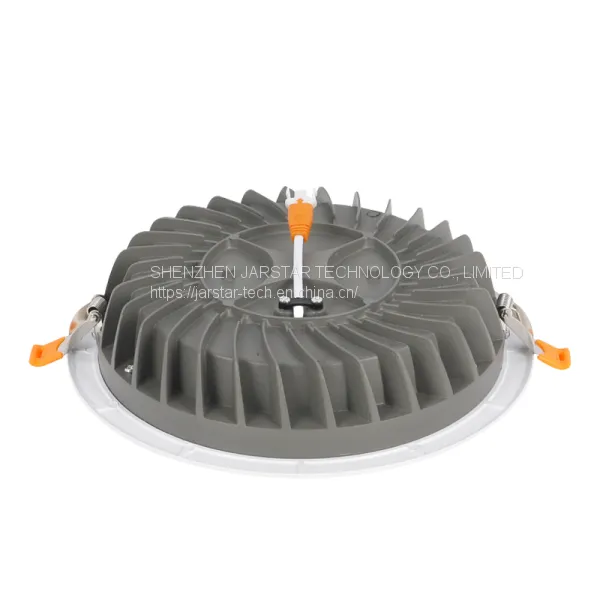

LED Downlight DTT Series high efficiency LED Downlight custom LED Downlight manufacturer
Model: JST-DTT
Wattage: 7W-50W
LED Chip: Citizen/Cree/Epistar
Driver Brand: OSRAM/Philips/Lifud
RA: ＞90
Finish Color: White/Black/Customized
Beam Angle: 90°/110°
Diameter: 90mm-230mm
Cutout: 75mm-210mm
Description
Jarstar DTT Series are originally researched and developed by JST, Protection class up to IP20, die-casting aluminum housing, baking finished surface, use bright reflective paper, reflectivity> 95%, high-grade frosted glass, light transmittance> 90%, high quality Citizen/Cree LEDs , with OSRAM/LIFUD/TRIDONIC high quality exterior driver, dimmable, good heat sink, brilliant quality, more than 50,000 hours life span.
Advantages
1. High brightness, Low SDCM﹤3, low light decline
2. High efficacy, high illuminance
3. Glare-free design, perfect light spot and accurate beam angle, make surroundings of comfortable illumination
4. Exterior driver(100-277v input)
5. Refined components and design, guarantee a long life span of over 50,000 hours
Specification
Model | Power | CRI | CCT | PF | Current | Input Voltage | Beam Angle | Dimension | Cutout |
JST-DTT | 7W | >80/90 | 2700K-5000K | >0.65 | 0.15A | AC220-240V | 90°/110° | D90*H55mm | 75mm |
JST-DTT | 10W | >80/90 | 2700K-5000K | >0.65 | 0.25A | AC220-240V | 90°/110° | D120*H55mm | 95mm |
JST-DTT | 15W | >80/90 | 2700K-5000K | >0.90 | 0.35A | AC220-240V | 90°/110° | D175*H52mm | 150mm |
JST-DTT | 20W | >80/90 | 2700K-5000K | >0.90 | 0.50A | AC220-240V | 90°/110° | D195*H52mm | 170mm |
JST-DTT | 30W | >80/90 | 2700K-5000K | >0.90 | 0.75A | AC220-240V | 90°/110° | D225*H52mm | 205mm |
JST-DTT | 40W | >80/90 | 2700K-5000K | >0.90 | 1.00A | AC220-240V | 90°/110° | D225*H66mm | 205mm |
JST-DTT | 50W | >80/90 | 2700K-5000K | >0.90 | 1.25A | AC220-240V | 90°/110° | D230*H108mm | 210mm |
Application
Offices, shopping malls, fashion stores, Stations, supermarkets, exhibitions etc.
