Help Center32202 Tapered Roller Bearing 15x35x15mm for RV Reducer Crankshaft
Related Products
-
32004U Crankshaft Bearings for Robot Arm 20x42x15mm Tapered Roller Bearing Thin SectionUS$ 10 - 100MOQ: 12 Sets -
718/144 Angular Contact Ball Bearing for rv ReducerUS$ 10 - 300MOQ: 5 Sets
-
33001-9.4 Tapered Roller Bearing for RV Reducer Crankshaft BearingsUS$ 10 - 100MOQ: 12 Sets
-
30101 Tapered Roller Bearing 12x27x13mm for RV Reducer Crankshaft BearingsUS$ 10 - 100MOQ: 12 Sets
-
32102 Crankshaft Bearing 15x30x13.1mm for RV ReducerUS$ 10 - 100MOQ: 12 Sets
Inner ring: 15mm
Outer ring: 35mm
Width: 15mm Lower deviation
Weight: 0.05kg

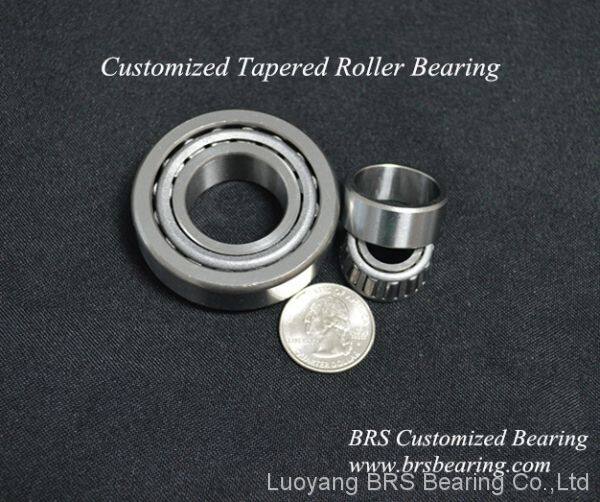

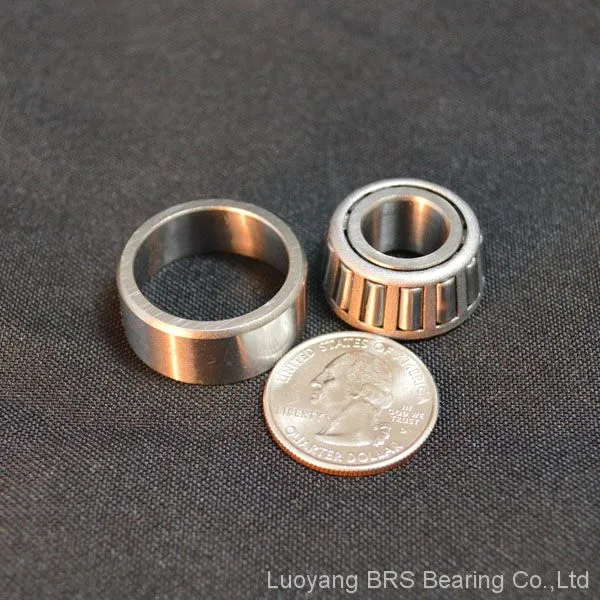

Structure: single row tapered roller bearing, separable inner and outer ring.
Precision grade: P5/V2
32202 tapered roller bearing is widely applied on RV-80E RV-70F RV-120C reducers. It's thin section tapered roller bearing, has light weight, high rigidity, low noise, and long service life. BRS made crankshaft bearings all passed strict QC, can provide stable operation and good safety and reliability. It can work continuously in a harsh working environment for a long time and has high impact resistance.
* High contact fatigue strength, to ensure bearings service life.
* Good wear resistance to maintain the bearing accuracy and stability, and extend the service life.
* Up to standard hardness ensuring bearings to achieve high contact fatigue strength and wear resistance.
* During processing, bearing parts will go through cold and hot working, so bearing steel should have good processability.
| RV Reducer Model | Models | d (mm) | D (mm) | T (mm) |
| RV-20E RV-25 | 33001-9.4 | 9.4 | 24 | 13 |
| RV-20E RV-25 | 33001 | 10 | 24 | 13 |
| RV-20E RV-42N | A2125/10 | 12 | 27 | 13 |
| RV-20E RV-42N | 30101 | 12 | 27 | 13 |
| RV-50C | 30202*2J | 15 | 30 | 12.7 |
| RV-50C | 32102 | 15 | 30 | 13.1 Lower deviation |
| RV-50E | 30202 | 15 | 35 | 11.75 |
| RV-80E RV-70F RV-120C | 32202 | 15 | 35 | 15 Lower deviation |
| RV-80E RV-70F RV-120C | 32202X1 | 15 | 36 | 15 Lower deviation |
| RV-110E RV-110F RV-127F RV-200C | 32004U | 20 | 42 | 15 |
| RV-160E CR-320C | 30204 | 20 | 47 | 15.25 |
| RV-160E CR-320C | 30204U | 20 | 47 | 15 Lower deviation |
| RV-320CA CR-400C | 32204U | 20 | 47 | 17 Lower deviation |
| RV-320E RV-500C | 32006X2 | 30 | 58 | 20 |
| RV-320E RV-500C | 33006X2 | 30 | 58 | 19.7 |
| RV-450E | 32206X3 | 30 | 65 | 22 Lower deviation |
