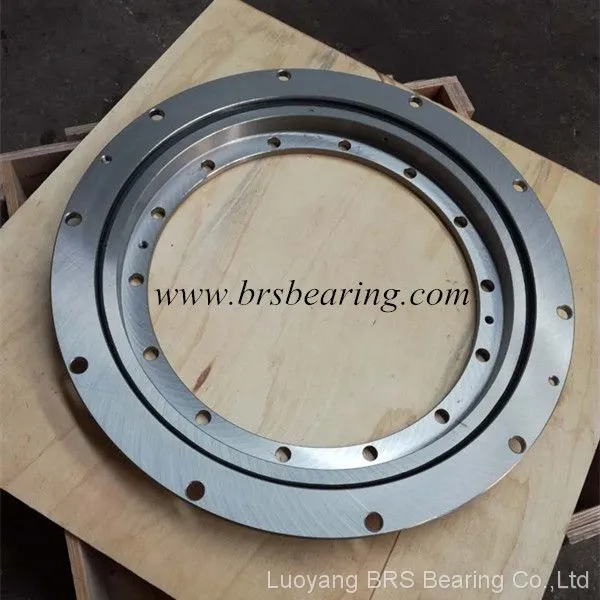

RKS.23 0541 light series slewing bearing 434x648x56mm
equivalent model: VLU200544/RK6-22P1Z/23-0541-01/230.20.0500.013
Typ 21/650.0
size:434x648x56mm
Inner ring dia.: 434mm
Outer ring dia.: 648mm
Mounting height: 56mm
Weight: 31kg
Structure: light series four point contact ball slewing bearing without gear, profiled inner and outer ring, with mounting holes
Materials: 50Mn
Precision grade: P5
Sealing: sealed both sides
Lubrication type: Grease lubrication
Lubrication hole: Yes
Load direction: axial, radial and tilting moment
Working temperature: -20℃~80℃
RKS.23 0541 light series slewing ring can be applied to the rotary parts of mechanical equipments, vehicles and construction machinery that require light weight and light load, such as the circular scraper clarifier central drive or ladle turret.
RKS.23 light series slewing ring models
| Model No. | D (mm) | d (mm) | H (mm) | Je (mm) | Ji (mm) | Ca (kN) | Cao (kN) | Mass (kg) |
| RKS.23 0411 | 518 | 304 | 56 | 490 | 332 | 169 | 284 | 23.5 |
| RKS.23 0541 | 648 | 434 | 56 | 620 | 462 | 188 | 380 | 31 |
| RKS.23 0641 | 748 | 534 | 56 | 720 | 562 | 200 | 440 | 36.5 |
| RKS.23 0741 | 848 | 634 | 56 | 820 | 662 | 211 | 524 | 43 |
| RKS.23 0841 | 948 | 734 | 56 | 920 | 762 | 222 | 580 | 48 |
| RKS.23 0941 | 1048 | 834 | 56 | 1020 | 862 | 231 | 664 | 54 |
| RKS.23 1091 | 1198 | 984 | 56 | 1170 | 1012 | 244 | 766 | 62 |
Customized size & structure available.
