33001-9.4 Tapered Roller Bearing for RV Reducer Crankshaft Bearings
US$ 10 - 100
MOQ: 12 Sets
Key Specifications
Get Latest Price
Brand Name:
RIGBRS
Place of Origin:
China
Model Number:
33001-9.4
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days
Related Products
-
30101 Tapered Roller Bearing 12x27x13mm for RV Reducer Crankshaft BearingsUS$ 10 - 100MOQ: 12 Sets -
32102 Crankshaft Bearing 15x30x13.1mm for RV ReducerUS$ 10 - 100MOQ: 12 Sets
-
30202 Tapered Roller Bearing 15x35x11.75mm for RV Reducer CrankshaftUS$ 10 - 100MOQ: 12 Sets
-
A2125/10 RV Reducer Crankshaft Bearing 12x27x13mm for Robot JointsUS$ 10 - 100MOQ: 12 Sets
-
30202*2J RV Reducer Crankshaft Bearing 15x30x12.7mm Tapered Roller BearingsUS$ 10 - 100MOQ: 12 Sets
Brand Name
RIGBRS
Place of Origin
China
Model Number
33001-9.4
Number of Row
Single Row
Seals Type
without
Precision Rating
P5
Outside Diameter
24, 65
Bore Size
9.4, 30

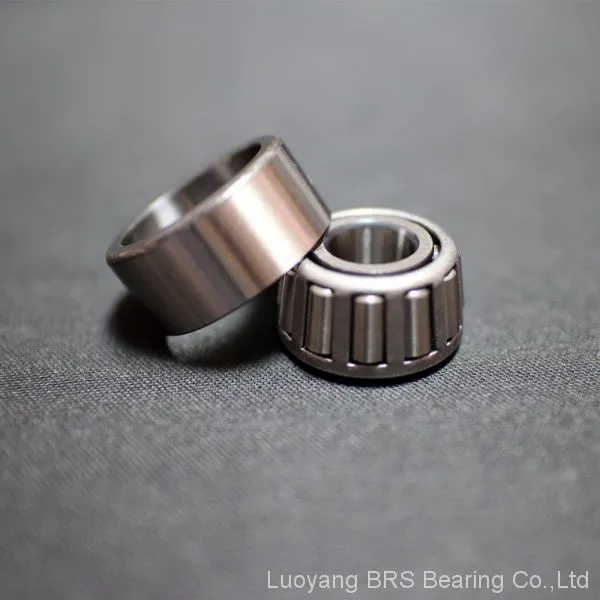

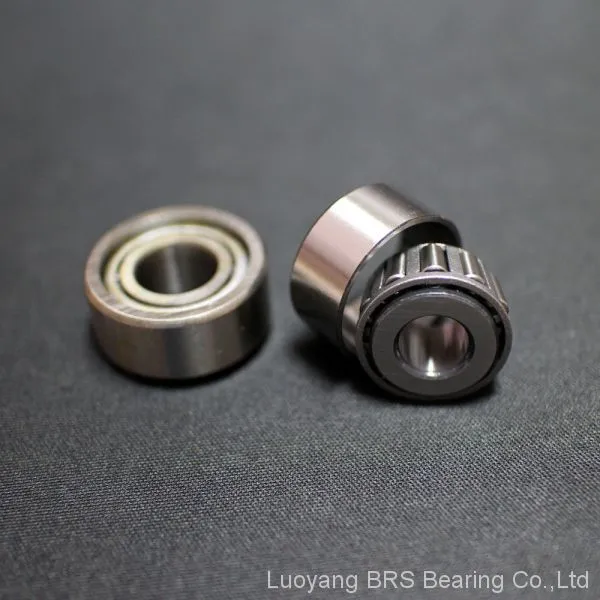

33001-9.4 tapered roller bearing for RV reducer crankshaft bearings
* Up to standard hardness ensuring bearings to achieve high contact fatigue strength and wear resistance.
* During processing, bearing parts will go through cold and hot working, so bearing steel should have good processability.
Inner ring: 9.4mm
Outer ring: 24mm
Width: 13mm
Weight: 0.03kg
Structure: single row tapered roller bearing, separable inner and outer ring.
Precision grade: P5/V2
* High contact fatigue strength, to ensure bearings service life.
* Good wear resistance to maintain the bearing accuracy and stability, and extend the service life.* Up to standard hardness ensuring bearings to achieve high contact fatigue strength and wear resistance.
* During processing, bearing parts will go through cold and hot working, so bearing steel should have good processability.
| RV Reducer Model | Models | d (mm) | D (mm) | T (mm) |
| RV-20E RV-25 | 33001-9.4 | 9.4 | 24 | 13 |
| RV-20E RV-25 | 33001 | 10 | 24 | 13 |
| RV-20E RV-42N | A2125/10 | 12 | 27 | 13 |
| RV-20E RV-42N | 30101 | 12 | 27 | 13 |
| RV-50C | 30202*2J | 15 | 30 | 12.7 |
| RV-50C | 32102 | 15 | 30 | 13.1 Lower deviation |
| RV-50E | 30202 | 15 | 35 | 11.75 |
| RV-80E RV-70F RV-120C | 32202 | 15 | 35 | 15 Lower deviation |
| RV-80E RV-70F RV-120C | 32202X1 | 15 | 36 | 15 Lower deviation |
| RV-110E RV-110F RV-127F RV-200C | 32004U | 20 | 42 | 15 |
| RV-160E CR-320C | 30204 | 20 | 47 | 15.25 |
| RV-160E CR-320C | 30204U | 20 | 47 | 15 Lower deviation |
| RV-320CA CR-400C | 32204U | 20 | 47 | 17 Lower deviation |
| RV-320E RV-500C | 32006X2 | 30 | 58 | 20 |
| RV-320E RV-500C | 33006X2 | 30 | 58 | 19.7 |
| RV-450E | 32206X3 | 30 | 65 | 22 Lower deviation |
