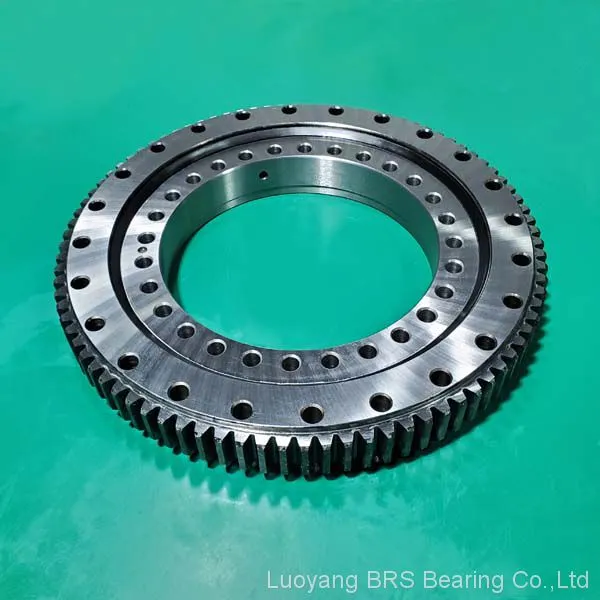

RKS.161.14.0644 crossed roller bearing
Inner ring dia.: 574mm
Outer ring dia.: 742.8mm
Mounting height: 56mm
Weight: 52kg
Structure: crossed roller slewing bearing with external gear, with mounting holes on inner and outer ring.
Materials: 42CrMo/50Mn
Clearance: based on requirements
Sealing: sealed both sides
Lubrication type: Grease lubrication
Lubrication hole: Yes
Load direction: axial, radial and tilting moment
RKS.161.14.0644 cross roller bearing are designed for bearing arrangements where stiffness is important or zero operational clearance or preload as well as constant resistance to rotation are required.
Single row crossed cylindrical roller slewing bearings require tighter specifications for the flatness and stiffness of the support surface than single row four-point contact ball slewing bearings.
Application: cranes, access platforms, bucket wheel excavators, conveyor booms, indexing tables, ladle turrets, robots, railway bogies, rotary platforms, solar mirrors, tunnel boring machines, wind turbines, etc.
More RKS crossed roller slewing bearing related to RKS.161.14.0414
| Model No. | dm (mm) | D (mm) | d (mm) | H (mm) | Je (mm) | Ji (mm) | Mass (kg) |
| RKS.161.14.0414 | 414 | 504 | 344 | 56 | 455 | 368 | 32 |
| RKS.161.14.0544 | 544 | 640.8 | 474 | 56 | 585 | 498 | 44 |
| RKS.161.14.0644 | 644 | 742.8 | 574 | 56 | 685 | 598 | 52 |
| RKS.161.14.0744 | 744 | 838.8 | 674 | 56 | 785 | 698 | 59 |
| RKS.161.14.0844 | 844 | 950.4 | 774 | 56 | 885 | 798 | 71 |
| RKS.161.14.0944 | 944 | 1046.4 | 874 | 56 | 985 | 898 | 77 |
| RKS.161.14.1094 | 1094 | 1198.4 | 1024 | 56 | 1135 | 1048 | 91 |
