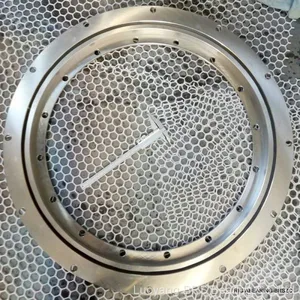

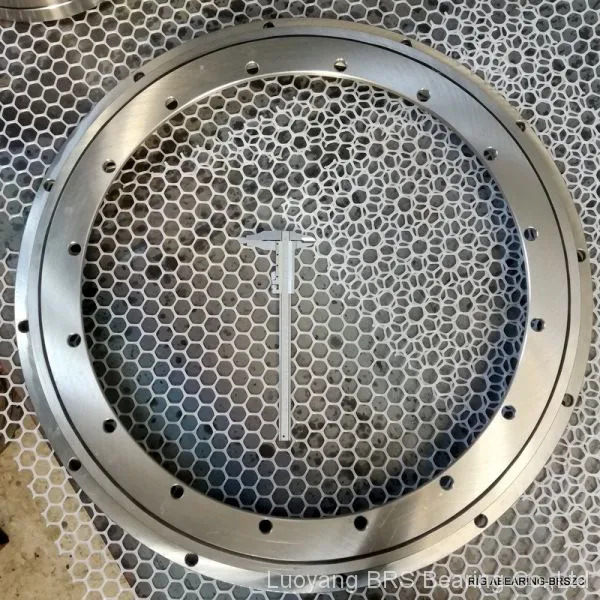

RKS.23 1091 slewing bearing light series slewing ring
equivalent model: VLU201094/23-1091-01/230.20.1000.013
Typ 21/1200.0
Inner ring dia.: 987mm
Outer ring dia.: 1198mm
Mounting height: 56mm
Weight: 62kg
Structure: light series four point contact ball slewing bearing without gear, profiled inner and outer ring, with mounting holes.
Materials: 50Mn
Precision grade: P5
Sealing: sealed both sides
Lubrication type: Grease lubrication
Lubrication hole: Yes
Load direction: axial, radial and tilting moment
Working temperature: -20℃~80℃
RKS.23 1091 light series slewing ring can be applied to the rotary parts of mechanical equipments, vehicles and construction machinery that require light weight and light load, such as the circular scraper clarifier central drive or ladle turret.
| Model No. | D (mm) | d (mm) | H (mm) | Je (mm) | Ji (mm) | Ca (kN) | Cao (kN) | Mass (kg) |
| RKS.23 0411 | 518 | 304 | 56 | 490 | 332 | 169 | 284 | 23.5 |
| RKS.23 0541 | 648 | 434 | 56 | 620 | 462 | 188 | 380 | 31 |
| RKS.23 0641 | 748 | 534 | 56 | 720 | 562 | 200 | 440 | 36.5 |
| RKS.23 0741 | 848 | 634 | 56 | 820 | 662 | 211 | 524 | 43 |
| RKS.23 0841 | 948 | 734 | 56 | 920 | 762 | 222 | 580 | 48 |
| RKS.23 0941 | 1048 | 834 | 56 | 1020 | 862 | 231 | 664 | 54 |
| RKS.23 1091 | 1198 | 984 | 56 | 1170 | 1012 | 244 | 766 | 62 |
Customized size & structure are available.
