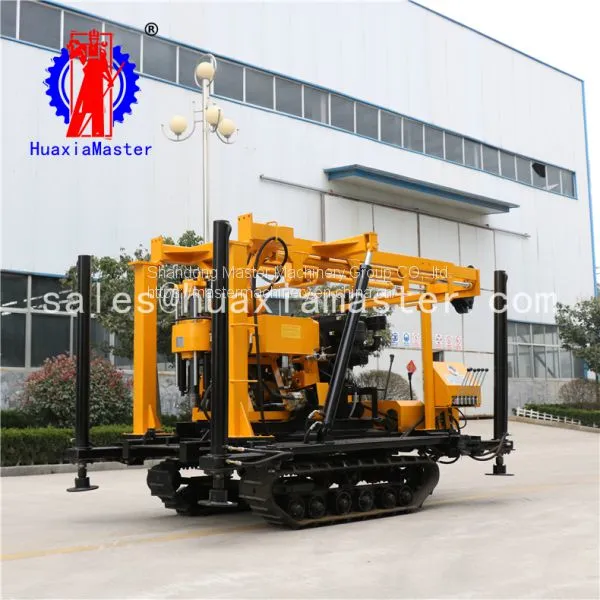

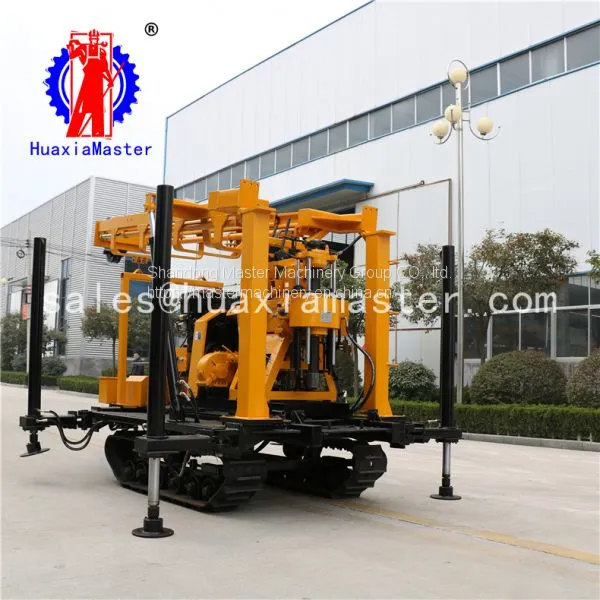

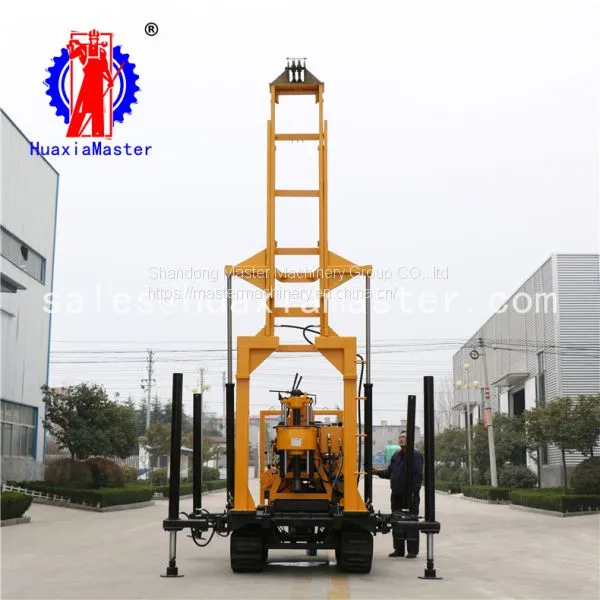

Help CenterXYD-200 Like Tank Water Well Hydraulic Rotary Diamond Core Machine For Rock Sample
Related Products
-
XY-3 600 Geological Survey and Geophysical Exploration EquipmentUS$ 6000 - 7500MOQ: 1 Set -
XYD-3 Core Drilling Machine and Track Hydraulic Core Drilling MachineUS$ 4000 - 6000MOQ: 1 Set
-
XY-100 100 Meters Hydraulic Water Well Core Sampling Drilling RigUS$ 6000 - 7500MOQ: 1 Set
-
Sell High Quality Xy-150 Hydraulic Exploration Core Drilling RigUS$ 4000 - 6000MOQ: 1 Set
-
XY-180 One Hunderd Hydraulic Water Well Drilling RigUS$ 4000 - 6000MOQ: 1 Set
c
· crawler water well drilling rig uses automatic Telescopic drilling rig ,it uses two high-strength cylinders to support.There is a group of hydraulic valves to control super nation of drill tower so that it saves time and effort, safe and reliable when user operates, the maximum for the user to create benefits.
· the chassis uses a rubber belt track so that the weight is light,the cost of life cycle is lower.It can reduce noise of the vehicle walking mechanism,reduce car body's shake,reduce the oil consumption.It can walk on the pavement of city and don't hurt the pavement.
· the chassis comes with four high-strength threaded legs(or Hydraulic high leg) the threaded legs install rate and adjust is fast and convenient, can be used for work plane leveling.It can make loading and unloading reduce the cost of to improve efficiency.It also can be used as auxiliary support when the track drilling rig is working.
· using 48V electric starting diesel engine is reduced the operate's labour intensity greatly.Especially in cold season,when diesel engine start hardly,it will show superiority vastly.
· the drilling rig is equipped with BW-160 independent mud pump,the pump flow and pressure are big,the maintenance is convenient,the parts of the machine are convenient to buy all over the country.
2. Parameters of XYD-200 crawler water well drilling rig
XYD-200 crawler water well drilling rig | |
Drilling depth |
200m |
Maximum opening diameter |
75-300mm |
Final hole diameter |
75mm |
Kelly |
53/59*4200mm |
Drill pipe diameter |
50/60mm |
Drilling angle |
90°-75° |
Auxiliary power diesel engine |
16.2kw 2200r/min |
Structural weight/Size |
3000kg /3800*1950*2700 |
Spindle | |
Spindle speed |
64/128/287/557r/min |
Spindle stroke |
450mm |
Windlass | |
Single rope lifting force |
24kn |
Single rope lifting speed |
0.12/0.22/0.49/0.95m/s |
Drum diameter |
140mm |
Wire rope diameter |
13mm |
Wire rope capacity |
35m |
Derrick | |
Rated load |
5t |
Effective height |
6m |
Tower leg specification |
89mm |
