Manufacturing High Conductivity Enameled Coated Cooper Wire
Specifications
Size: 0.03mm-2.50mm
Class: 130 / 155 / 180 / 200 / 220
Film coating material: polyurethane, polyester, polyesterimide, polyamide-imide, polyimide
Paint film thickness: based on the standards and requested by clients
Standard: GB IEC JIS NEMA
Certification: pass UL, SGS, ROHS, ISO9001
Others: can offer OEM service, customized colour and packaging
Product Description
Performance Features:
The enameled coated cooper wire has excellent conductivity, scratch resistance, adhesion and electrical properties, also has good performance at high temperature resistance, ductility, heat shock and cut through.
Main Application:
1. Household appliance, electronic instruments and telecommunication apparatus
2. Electrical motors, miniature motors and some highly-demanded transformers
3. Deflection coil, audio devices, buzzer, watch, microphone, receiver and so on.
Product Details:
| Product Name | Manufacturing High Conductivity Enameled Coated Cooper Wire | ||||
| Coating Material | UEW | PEW | EIW | EI/AIW | AIW |
| Thermal Class | 130, 155, 180 | 130, 155, 180 | 180 | 200, 220 | 220 |
| Size (mm) | 0.03-2.50 | 0.03-2.50 | 0.03-2.50 | 0.03-2.50 | 0.03-2.50 |
| Insulation Thickness (IEC) |
Grade1 Grade2 Grade3 |
Grade1 Grade2 Grade3 |
Grade1 Grade2 Grade3 |
Grade1 Grade2 Grade3 |
Grade1 Grade2 Grade3 |
| Standard |
GB 6109 IEC 60317 JIS 3202 NEMA MW 1000 |
GB 6109 IEC 60317 JIS 3202 NEMA MW 1000 |
GB 6109 IEC 60317 JIS 3202 NEMA MW 1000 |
GB 6109 IEC 60317 JIS 3202 NEMA MW 1000 |
GB 6109 IEC 60317 JIS 3202 NEMA MW 1000 |
Particular types of enameled coated cooper wire can be solderable or self-bonding(with a bonding layer).
Packaging
For Reference:
| Reel / Spool | PL-2 | PT-2 | PT-4 | PT-10 | PT-15 | PT-25 | PT-60 |
| Rolls per Carton | 9 rolls | 6 rolls | 4 rolls | 2 rolls | 1 or 2 rolls | 1 or 2 rolls | 1 roll |
| Pallet | According to the carton size, and up to clients' request | ||||||
Company Information
About Our Company
Area and output: Own 10800 square meter factory area, annual output over 4000 tons.
Experience: 10-year export experience and specialized in the field of enameled wire production since 2000.
Cooperating clients: Till now our products are sold to Malaysia, India, Indonesia, Cuba, Russia, Japan, USA, HK, Pakistan, Germany and so on. Have earn good reputation in the industry.
Advantages: Superior quality, timely delivery and considerate service.
About Our Product
Wide range of products: enameled copper wire, enameled aluminum wire, enameled copper clad aluminum wire
Sizes: 0.03-2.80mm(AWG10~48, SWG12~49)
1. Solderable Polyurethane Enameled Round Wire, Class 130/155/180 (UEW/130, UEW/155, UEW/180)
2. Polyester Enameled Round Wire, Class 130/155/180 (PEW/130, PEW/155, PEW/180 )
3. Polyesterimide Enameled Round Wire, Class 180 (EIW/180)
4. Polyesterimide Overcoated With Polyamide-imide Enameled Round Wire, Class 200/220 (EI/AIW/200, EI/AIW/220 )
5. Polyimide Enameled Round Wire, Class 220 (AIW/220)
Produce as per clients' request
GB6109 ( Enameled round copper wire)
GB3955 ( Enameled round aluminum wire)
SJ/T 11223-2000 ( Enameled round copper clad aluminum wire)
GB 4074 (Test methods of enameled copper winding wire)
NEMA MW 1000
IEC 60317
JIS 3202
Or standard requested by clients
Certificate
ISO9001:2008 Quality Management Systerm
ROHS Certification
SGS Certification
Pass UL (enameled round copper wire and enameled round aluminum wire)

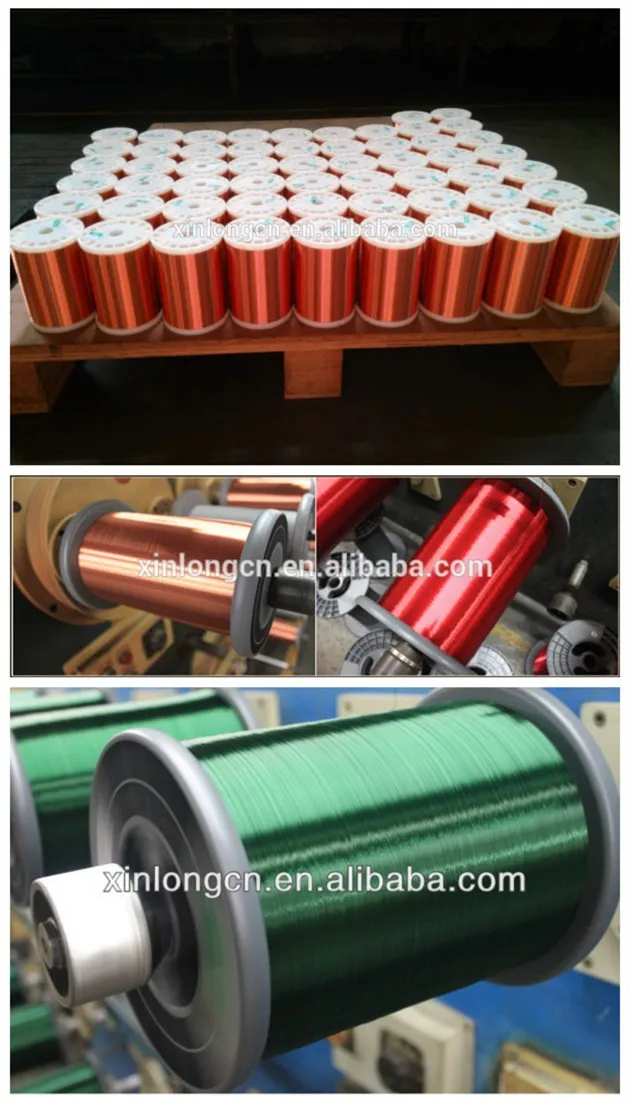

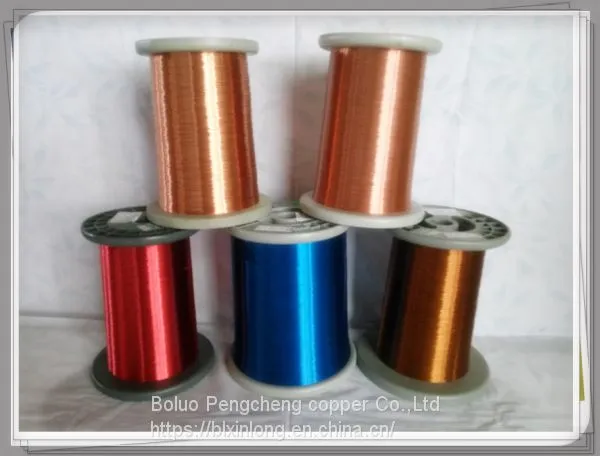

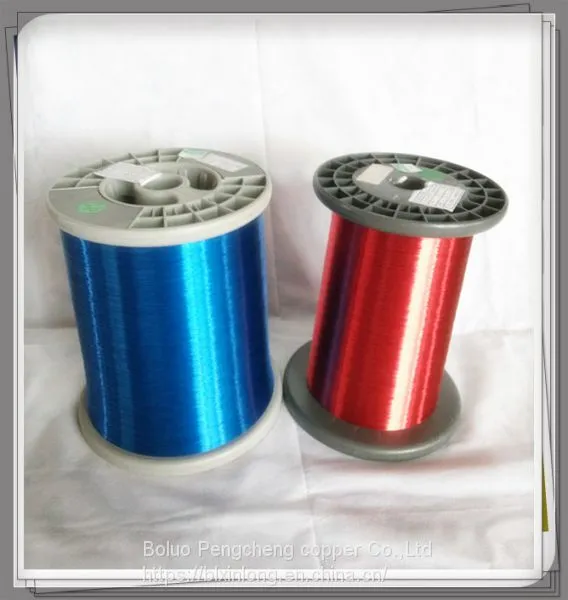

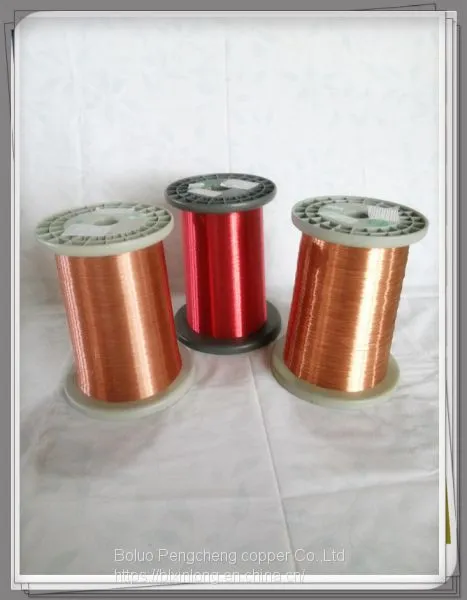

Picture Show
Our Services
1. Factory direct and timely delivery
2. Free sample are available
3. Can offer original certificate for free, such as Form E, Form B and CO
4. Goods are sold with rerun or refund guarantee due to quality issues
5. Customized size, colour, logo and packaging are accepted, and able to OEM
6. Close to Dongguan, Guangzhou and Shenzhen, can arrange to pick up clients come to visit
