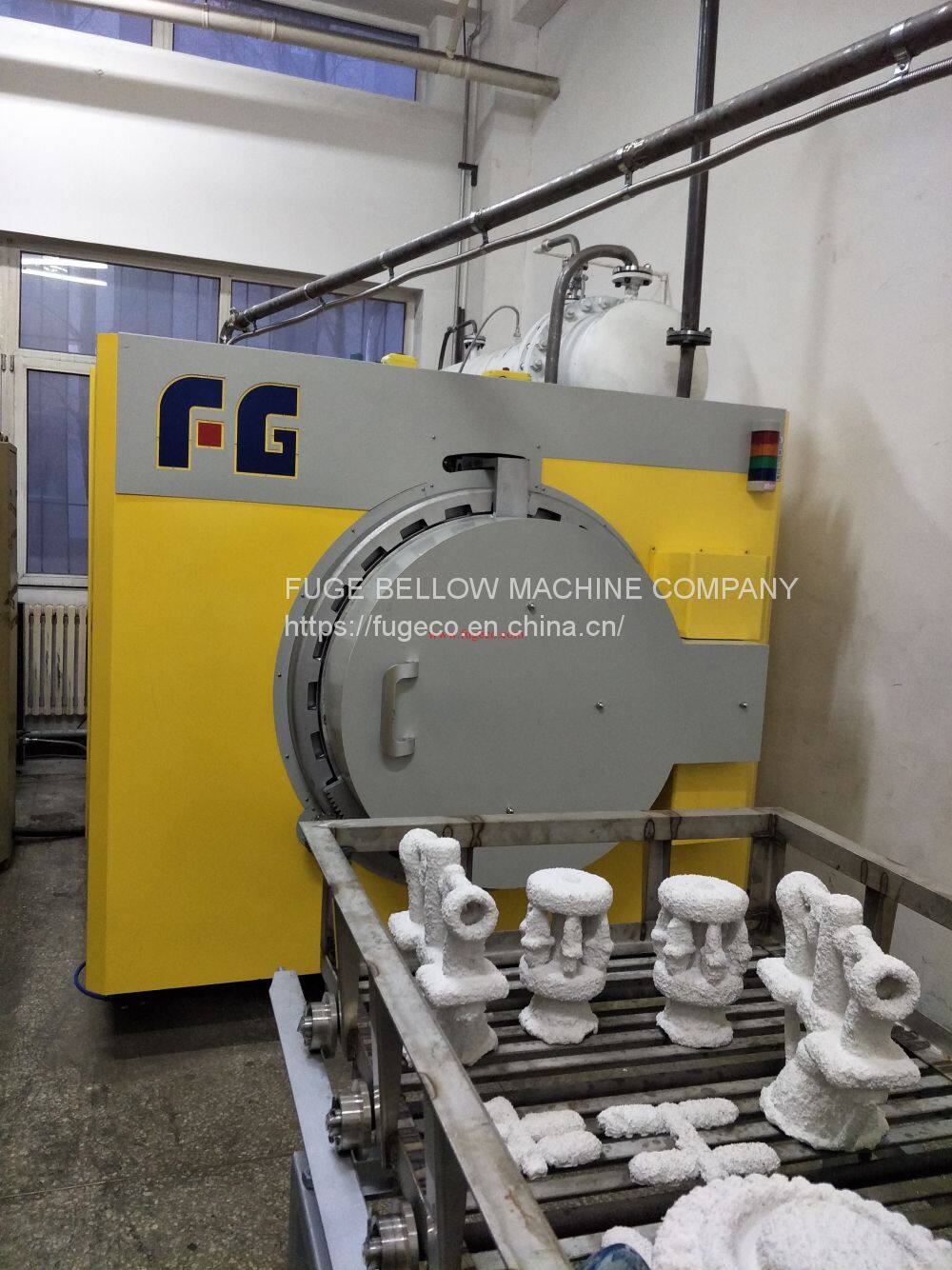

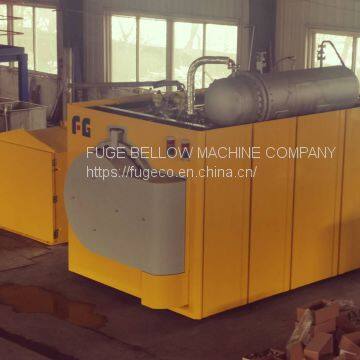

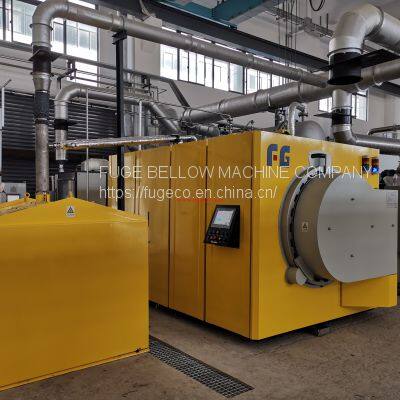

Dewaxing Autoclave
Use the high temperature and high pressure steam to dewax from ceramic shell mold
Key features
Efficiency ：Designed as an integration of the steam boiler and dewaxing chamber to save space and promote efficiency .
Easy operation：Easy to operate in automatic and manual modes .
Fast：Double layers pressure vessel takes short time for pressure balance, and the time can be adjusted on certain conditions.
Stability : Siemens PLC programmable controller with strong anti-interference ability and stable performance.
Traceability ：Paperless recorder to monitor the whole working status, and allow user downloads the technical process data for analysis.
Green Optional Heat Recovery Unit to save cost.
Parameter list
1 | MODEL | FG-TLF1000 | FG-TLF1200 | FG-TLF1400 |
2 | Design pressure | 1.0MPa | 1.0MPa | 1.0MPa |
3 | Design temperature | 183.2℃ | 183.2℃ | 183.2℃ |
4 | Working pressure | 0.9 MPa | 0.9 MPa | 0.9 MPa |
5 | Working temperature： | ≤179℃ | ≤179℃ | ≤179℃ |
6 | Pressure Balance Time | ≤5s(at the pressure of 0.6 Mpa) | ≤5s(at the pressure of 0.6 Mpa) | ≤5s(at the pressure of 0.6 Mpa) |
7 | Inner Dimension | Φ1000×1200 | Φ1200×1500 | Φ1400×1600 |
8 | Dewaxing Time | 0～60min (Adjustable） | 0～60min (Adjustable） | 0～60min (Adjustable） |
9 | Heat Recovery Unit | Optional | Optional | Optional |
10 | Overall Size | 3600(L)×2200(W)×2400mm(H) | 3930(L)×2300(W)×2910mm(H) | 4350(L)*2460(W)*3100mm(H) |
