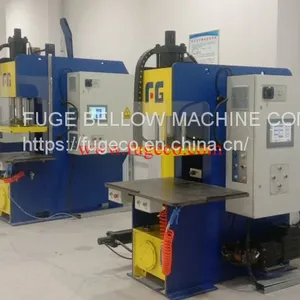

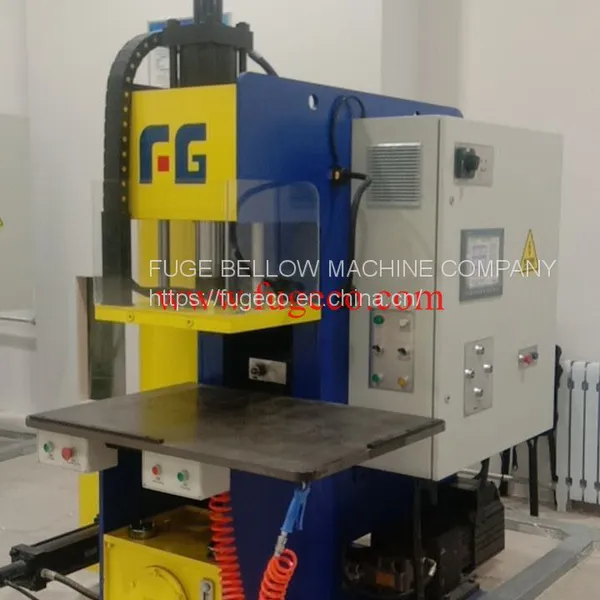

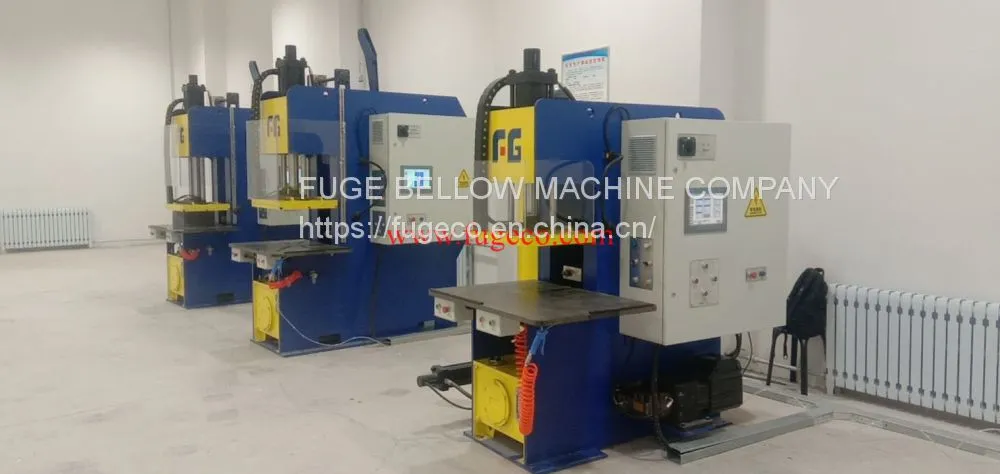

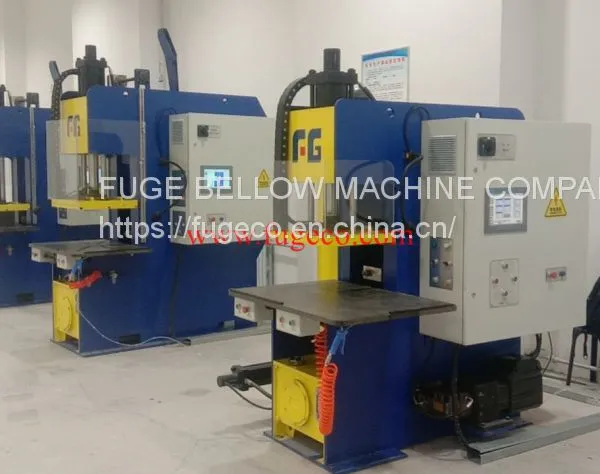

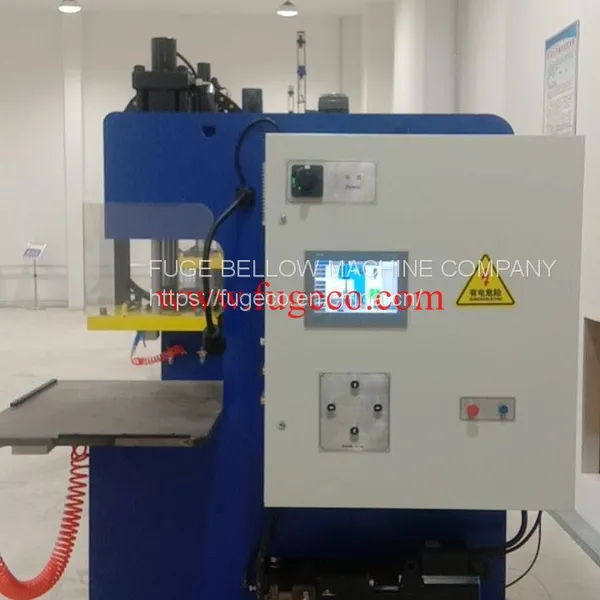

Help CenterCeramic Core Injector
Related Products
Operation: Easy to operate in manual and automatic modes .
Reasonable structure: C-Frame to save space .
Convenience : HMI is to display the parameters of auto setting pressure .
Multi-protection: It equipped with multi-protection for nozzle position , overpressure, dual temperature , pinch hand .
Advanced Control System: Precisely control temperature,flow and pressure for injecting , to ensure the qualify of ceramic cores.
Description |
Parameters |
|
Model |
FG-TXJ35T |
FG-TXJ50T |
Max. Clamp force |
35T |
50T |
Platen stroke |
535mm |
535mm |
Injection Pressure |
0.35-8MPa（Adjustable） |
0.35-8MPa（Adjustable） |
Single Shot Capacity |
3.2L（Adjustable） |
3.2L（Adjustable） |
Ceramic Reservoir Capacity |
76L |
76L |
Air pressure |
0.6MPa(Dry and clean air ) |
0.6MPa(Dry and clean air ) |
Electrical Standard |
380V 50Hz 3ph 18KW |
380V 50Hz 3ph 30KW |
Dimension （LXWXH） |
1450mmX2224mmX2996mm |
150mmX2355mmX3016mm |
