AY Horizontal Centrifugal Oil Pump

AY Horizontal Centrifugal Oil Pump thumbnail-1

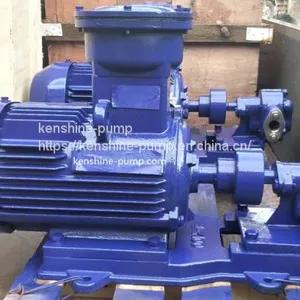

AY Horizontal Centrifugal Oil Pump thumbnail-2
AY Horizontal Centrifugal Oil Pump thumbnail-3
AY Horizontal Centrifugal Oil Pump thumbnail-4
AY Horizontal Centrifugal Oil Pump thumbnail-5
AY Horizontal Centrifugal Oil Pump photo-1
AY Horizontal Centrifugal Oil Pump photo-2
AY Horizontal Centrifugal Oil Pump photo-3
AY Horizontal Centrifugal Oil Pump photo-4
AY Horizontal Centrifugal Oil Pump photo-5
US$ 950 - 15000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
kenshine-pump
Place of Origin:
China
Model Number:
40AY40*2
Contact Supplier Request Quote Chat Now
Kenshine-pump
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name kenshine-pump
Place of Origin China
Model Number 40AY40*2
Application Other, high temperature oil pump
Fuel Other, electric motor
Power Electric
Usage Oil
Theory Centrifugal Pump
Standard or Nonstandard Standard
Structure Single-stage Pump
Pressure Other, middle pressure

AY type high temperature centrifugal oil pump is divided into six structures: single-stage single-suction cantilever type, two-stage single-suction cantilever type, single-stage single-suction cantilever type, single-stage double-suction double-support type, two-stage single-suction double-support type and two-stage single-suction double-support type.

AY type high temperature centrifugal oil pump is especially suitable for conveying high temperature and flammable, explosive or toxic liquid. The installation method is horizontal center line support. The suction flange and outlet flange of the pump are cast on the pump body and are vertically upward. The bearing chamber (packing box) and the pump cover are cast into one, which can be used for packing seal, balanced type, flow type and series mechanical seal. An optional jacket of a water-cooled chamber is cast outside the shaft seal chamber. The water-cooled chamber shall be specially provided or provided when the conveying medium is water with a temperature exceeding 66 ° c and hydrocarbon action exceeding 150 ° c.

Impeller for the whole casting, and through static balance check, the axial force of the pump mainly depends on the impeller balance hole to balance.

The bearing body is equipped with a set of radial ball bearings and a set of thrust ball bearings mounted back to back. The bearings are lubricated with thin oil of oil swing ring. The external surface of the bearings is cast with heat sink, which can be cooled by air (T

Pump maintenance does not have to disassemble the suction or discharge pipeline.  It is easy to disassemble the impeller, shaft, bearing, shaft seal and other parts. The shaft seal adopts mechanical seal. The pump is driven directly by a motor through a flexible diaphragm extension coupling. Viewed from the direction of the motor, the pump rotates counterclockwise.

AY type high temperature centrifugal oil pump can be used in petroleum refining, petrochemical and chemical industries and other places to transport petroleum, liquefied petroleum gas and other media without solid particles.

Flow: 1 to 612m3/h

Head: 370 to 670m

Liquid temperature: -20 to 400Degree Celsius.

Pump material: cast iron, cast steel, alloy steel

Model Flow Head Speed Efficiency NPSH Shaft power Motor type motor power Pump weight
m3/h m rpm % m KW KW kg
40AY40×2 6.25 80 2950 31 2.7 4.4 YB132S2-2 7.5 163
40AY40×2A 5.85 70 2950 31 2.7 3.6 YB132S1-2 5.5
40AY40×2B 5.4 60 2950 31 2.5 2.85 YB112M-2 4
40AY40×2C 4.9 50 2950 31 2.5 2.17 YB100L-2 3
50AY60 12.5 70 2950 42 2.9 5.67 YB132S2-2 7.5 130
50AY60A 11.2 53 2950 39 2.9 4.1 YB132S1-2 5.5
50AY60B 9.9 39 2950 37 2.8 2.8 YB112M-2 4
50AY60×2 12.5 120 2950 37 2 11 YB160M2-2 15 210
50AY60×2A 12 105 2950 36 2 9.5 YB160M2-2 15
50AY60×2B 11 90 2950 35 1.9 7.7 YB160M1-2 15
50AY60×2C 10 76 2950 35 1.7 6 YB160M1-2 11 170
65AY60 25 60 2950 56 3.1 7.3 YB160M1-2 11
65AY60A 22.5 49 2950 54 2.8 5.6 YB132S2-2 7.5
65AY60B 20 37.5 2950 52 2.5 3.9 YB132S1-2 5.5
65AY100 25 110 2950 47 3 15.9 YB180M-2 22 190
65AY100A 23 92 2950 46 2.9 12.5 YB160L-2 18.5
65AY100B 21 73 2950 44 3 9.5 YB160M2-2 15
65AY100×2 25 205 2950 49 2.8 29.1 YB225M-2 45
65AY100×2A 23 178 2950 47 2.7 23.7 YB200L2-2 37 310
65AY100×2B 22 154 2950 46 2.7 20.1 YB200L1-2 30
65AY100×2C 20 130 2950 45 2.6 15.7 YB180M-2 22
80AY60 50 60 2950 62 3.2 13.2 YB160L-2 18.5 200
80AY60A 45 49 2950 61 3 9.9 YB160L-2 15
80AY60B 40 38 2950 60 3 6.9 YB160M1-2 11
80AY100 50 104 2950 59 3.1 24 YB200L2-2 37 220
80AY100A 45 85 2950 56 3 18.6 YB200L1-2 30
80AY100B 40 76 2950 54 2.9 15.3 YB180M-2 22
80AY100×2 50 200 2950 57 3.6 47.8 YB280S-2 75 380
80AY100×2A 47 175 2950 55 3.5 40.7 YB250M-2 55
80AY100×2B 43 153 2950 53 3.3 33.8 YB225M-2 45
80AY100×2C 40 125 2950 51 3.3 26.7 YB200L2-2 37
100AY60 100 63 2950 72 4 23.8 YB200L2-2 37 220
100AY60A 90 49 2950 71 3.8 16.9 YB200L1-2 30
100AY60B 79 38 2950 67 3.5 12.2 YB160L-2 18.5
100AY120 100 123 2950 66 4.3 50.6 YB280S-2 75 320
100AY120A 93 108 2950 62 4 44.1 YB280S-2 75
100AY120B 85 94 2950 62 3.8 35.5 YB250M-2 55
100AY120C 79 75 2950 59 3.6 27.5 YB200L2-2 37
100AY120×2 100 240 2950 61 4.5 107.2 YB315M2-2 160 500
100AY120×2A 93 205 2950 60 4.3 86.6 YB315M1-2 132 500
100AY120×2B 86 178 2950 59 4.2 70.7 YB315S-2 110 500
100AY120×2C 79 150 2950 58 4.1 55.7 YB280S-2 75 500
150AY75 180 80 2950 75 3.9 52.3 YB250M-2 75 290
150AY75A 160 66 2950 74 3.8 38.9 YB200L2-2 55 290
150AY75B 145 46 2950 73 3.6 24.9 YB315M2-2 37 290
150AY150 180 157 2950 69 3.6 111.6 YB315M1-2 160 600
150AY150A 168 137 2950 68 3.3 92.2 YB315M1-2 132 600
150AY150B 155 116 2950 67 3.2 73.1 YB315S-2 110 600
150AY150C 140 94 2950 65 3.1 55.5 YB280S-2 75 550
150AY150×2 180 300 2950 67 3.6 219.5 YB355L-2 315 1500
150AY150×2A 167 258 2950 65 3 180.5 YB355S4-2 250 1500
150AY150×2B 155 222 2950 62 2.9 151.5 YB355S3-2 220 1500
150AY150×2C 140 181 2950 60 5.5 115 YB315M2-2 160 1500
200AY75 300 75 2950 79 5.5 77.6 YB315S-2 110 275
200AY75A 260 60 2950 78 5.5 54.5 YB280S-2 75 275
200AY75B 225 45 2950 77 5.5 35.8 YB250M-2 55 275
200AY150 300 150 2950 76 4.5 161 YB355S3-2 220 620
200AY150A 270 137 2950 75 4.2 132 YB355S1-2 185 620
200AY150B 243 127 2950 73 3.8 115.1 YB315M2-2 160 620
200AY150C 219 112 2950 72 3.5 92.8 YB315M1-2 132 620
200AY150×2 300 300 2950 74 5.5 331.2 YB450M1-2 450 1400
200AY150×2A 287 270 2950 73 5.4 289 YB450S3-2 400 1400
200AY150×2B 270 239 2950 72 5.2 244 YB450S2-2 355 1400
200AY150×2C 247 195 2950 70 5 187.4 YB355S4-2 250 1400
250AYS80 500 80 2950 82 6.5 132.8 YB355S1-2 185 450
250AYS80A 440 62 2950 81 6.5 91.7 YB280M-2 132 450
250AYS80B 370 44 2950 80 6.5 55.4 YB280M-2 90 450
250AYS150 500 153 2950 79 4.8 264 YB450S1-2 315 1500
250AYS150A 472 136 2950 78 4.6 224 YB355M-2 280 1500
250AYS150B 444 119 2950 77 4.2 187 YB355S4-2 250 1500
250AYS150C 400 96 2950 76 4 138 YB355S1-2 185 1500
250AYS150×2 500 303 2950 79 4.8 522 JBO710M2-2 630 2500
250AYS150×2A 472 272 2950 79 4.5 443 JBO710S2-2 560 2500
250AYS150×2B 444 230 2950 78 4.3 357 YB450S3-2 200 2500
250AYS150×2C 400 190 2950 77 4 269 YB450S1-2 315 2500


Product Tags: oil pump , centrifugal pump , high temperature pump , transfer pump , booster pump , horizontal pump
