YRTS460 Rotary Table Bearings (high Speed Type) /INA Axial/radial Bearing Series460X600X70mm

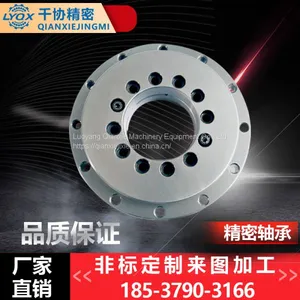

YRTS460 Rotary Table Bearings (high Speed Type) /INA Axial/radial Bearing Series460X600X70mm thumbnail-1
YRTS460 Rotary Table Bearings (high Speed Type) /INA Axial/radial Bearing Series460X600X70mm photo-1
US$ 100 - 800 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ZLYQX
Place of Origin:
China
Model Number:
YRTS460
Contact Supplier Request Quote Chat Now
Luoyang Qianxie Machinery Equipment Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ZLYQX
Place of Origin China
Model Number YRTS460
Precision Rating P2/P4/P5
Outside Diameter 600,
Bore Size 460,

YRTS series high-speed Axial/radial bearings (referred to as YRTS rotary bearings) series are the same as the YRT series, but the internal structure is different from the YRT series. The turntable bearing series is low and uniform. Therefore, for the occasions that require relatively low friction but relatively high speed, this series can be used, such as bearings for shafts driven by direct drive motors.



Features: Axial/radial bearings YRT, YRTS and axial angular contact ball bearings ZKLDF are ready-to-fit high precision bearings for high precision applications with combined loads. They can support radial loads, axial loads from both sides and tilting moments without clearance and are particularly suitable for bearing arrangements with high requirements for running accuracy, such as rotary tables, face plates, milling heads and reversible clamps.


YRTS high-speed rotary table bearings are high-precision bearings. They are widely used in CNC machines, industrial robot arms, etc. These high-precision equipment fields are very common, so the stability and reliability of YRTS itself is also very important.

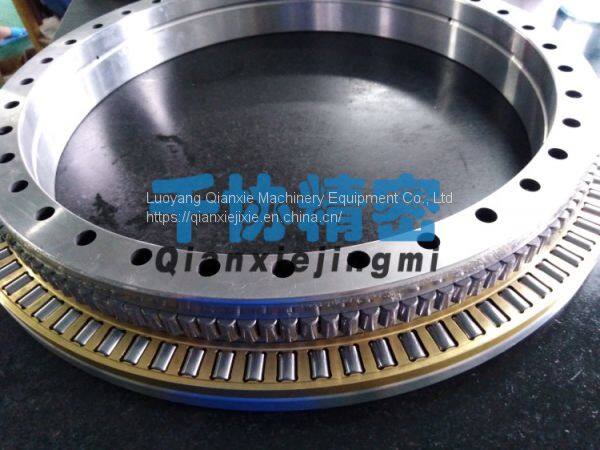

YRTS bearings are mainly subjected to radial load by a row of radial rolling rollers, and axial loads are supported by two rows of axial rollers. Such a bearing structure will make the YRTS bearing have a relatively strong load capacity and increase.The stability of the rotation. YRTS is a radial roller belt retainer, so it is more suitable for high-speed rotation. The rotating body is also very stable under the support of three rows of rollers.


YRTS high-speed rotary table bearings, its shape and structure are generally the same as the YRT type. But its internal structure is very different from the YRT series. Because of this, the limit speed of YRTS rotary table bearings will be higher than the YRT series. At the same time, the friction torque of the YRTS is relatively lower and uniform. Therefore, YRTS still has obvious advantages and is more suitable in the operation of high-speed and low-friction equipment.


YRTS are highly rigid and the bearings are also preloaded.Its accuracy is also up to P4, P2 level, YRTS is the most used in those high speed work. YRTS has been widely used in such fields as vertical grinding machines, indexing heads, and gear hobbing machines.


YRT Series Model No.


YRT50 YRT80 YRT100 YRT120 YRT150 YRT180 YRT200 YRT260 YRT325 YRT395 YRT460 YRT580 YRT650 YRT850 YRT950 YRT1030 YRT1200


YRTS200,YRTS260,YRTS325,YRTS395,YRTS460,YRTS580 YRTM150,YRTM180,YRTM200,YRTM260,YRTM325,YRTM395,YRTM460,YRTM580


ZKLDF100,ZKLDF120,ZKLDF150,ZKLDF180,ZKLDF200,ZKLDF260,ZKLDF325,ZKLDF395,ZKLDF460,ZKLDF580


Type Dimension The fixing   hole
d D H H1 H2 C d1 dn dm Inner   ring outer   ring
Unit：mm do ds Ts QTY4) dL QTY4)
mm mm
YRTS200 200 300 45 30 15 15 274 215 285 7 11 6.2 46 7 45
YRTS260 260 385 55 36.5 18.5 18 345 280 365 9.3 15 8.2 34 9.3 33
YRTS325 325 450 60 40 20 20 415 342 430 9.3 15 8.2 34 9.3 33
YRTS395 395 525 65 42.5 22.5 20 486 415 505 9.3 15 8.2 46 9.3 45
YRTS460 460 600 70 46 24 22 560 482 580 9.3 15 8.2 46 9.3 45

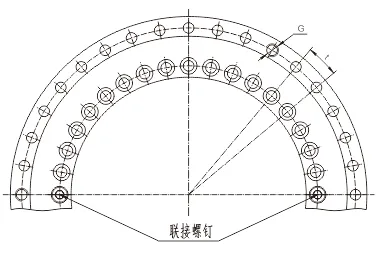

Type Screw connection QYT Connect screws   holes pitch1）t The tightening torque Basic   load rating Limited speed weight
Axial Radial
Dynamic Static Dynamic Static
MA2） Ca Coa Cr Cor Grease
G QTY QTY*t N   m KN


r/min ≈Kg
YRTS200 2 M8 3 48*7.5° 14 105 635 78 202 950 9.7
YRTS260 2 M12 3 36*10° 34 131 840 85 275 800 18.3
YRTS325 2 M12 3 36*10° 34 191 1260 108 300 680 25
YRTS395 2 M12 3 48*7.5° 34 214 1540 121 390 600 33
YRTS460 2 M12 3 48*7.5° 34 221 1690 168 570 500 45
