Home > Products > industrial panel pc > ALL in One Celeron J1900 Industrial Panel PC Windows 15'' Touch Screen Computer IP65 Waterproof Touch PC

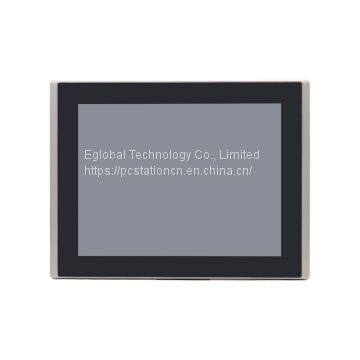

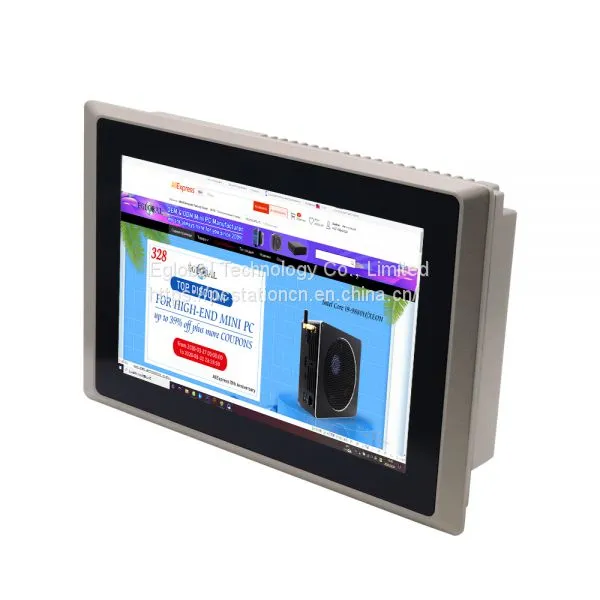

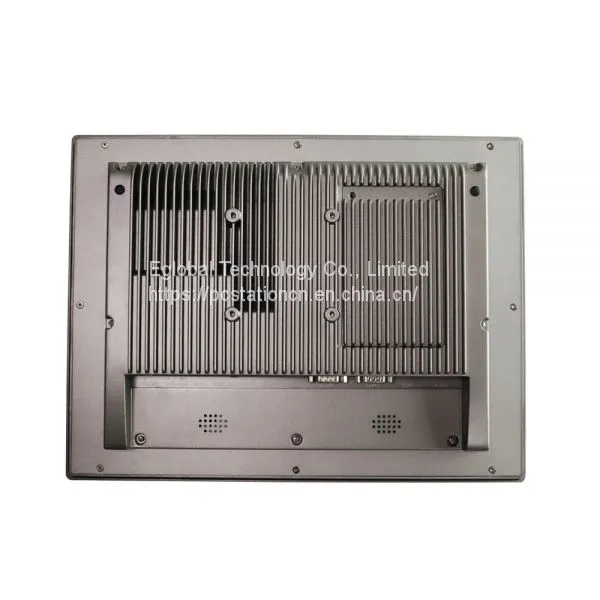

ALL in One Celeron J1900 Industrial Panel PC Windows 15'' Touch Screen Computer IP65 Waterproof Touch PC
- 10000 Set / Sets per Month
- Shenzhen
- T/T PayPal Other
- 2 days
You May Like
-
Mini Computer 2 Lan Intel i9 9880H i7 9850H Windows 10 Pro 2*DDR4 2*M.2 NVMe Desktop Gaming PC 4K HTPC DP HDMI
-
Intel Core i3 7100U Fanless Mini PC Wind10 Barebone DDR4/DDR3 4K HTPC WiFi HDMI VGA
-
Gaming Computer Intel i9 8950HK 6 Cores 12 Threads Mini PC Win10 2*DDR4 32GB 4K HDMI Mini DP
-
Industrial fanless mini PC i5 8250U 4 cores 2 * DDR4 2 * COM Wind10 Linux mini Desktop computer VGA HDMI Wi-Fi
Product Details
| Brand Name | EGLOBAL | Place of Origin | China | |
| Model Number | EG1501-J1900 | Type | All-In-One | |
| Screen Size | 15" | Products Status | Stock | |
| Processor Brand | Intel | Processor Main Frequency | 1.4GHZ | |
| Display Type | LCD | Graphics Card Type | Integrated Card | |
| Hard Drive Capacity | Other, NO | Memory Capacity | ≥ 4GB |
Product Description
Eglobal industrial touch screen panel PC can be used as an industrial controller to operate reliably in the industrial environment. Industrial touch panel pc has important computer attributes and features, such as computer motherboard, CPU, hard disk, memory, Bluetooth, WiFi, peripherals and rich interfaces, and operating system, control network and protocol, computing power, and good man-machine interface. The products and technologies of the industrial control industry are very special and belong to intermediate products. They are regarded as providing stable, reliable, embedded and intelligent industrial computers in other industries. At present, industrial panel pc has been widely used in communications, industrial control sites, highways and streets toll collection, medical treatment, environmental protection and all aspects of people's lives. The industrial panel pc is suitable for working in harsh environments with a lot of dust, large temperature changes, and many electromagnetic radiations, and has also been favored by the majority of users.
- Front Panel IP65 Waterproof.
- Low consumption 9~36V wide voltage input.
- Aluminum Alloy case and fanless system without cooling fan, no any noisy.
- Rich interfaces fit for many applications and multiple processors for your option.
2020 Best All in One Computers Celeron J1900 Onboard Memory 15'' Inustrial Panel PC Specifications:
Basic Information: | |
CPU | Intel Celeron J1900 |
TDP | 15W |
Chipset | Refer to CPU |
Memory | Onboard DDR3L 4GB RAM |
OS | Windows 7/Windows 8/Windows 10/Linux/ WES7 |
Watchdog timer | 1 ~ 255 seconds programmable |
Video | Refer to CPU |
Input/output port | |
Switch | 1 x Power On/Off Switch |
Power | 1 x DC 9 ~ 36V 3-pin Phoenix Terminal |
Amplifier | 2 x 8Ω 1W Amplifier output (Optional) |
USB | 3 x USB2.0, 1 x USB3.0, Built-in 1xUSB2.0 Dongles Port |
Display | 1 x HDMI |
LAN | 2x Gigabit Ethernet RJ45 Intel i211-AT |
Audio | 1 x Audio Line-out |
COM | 2 x DB-9 COM1&COM2,RS-232/422/485 |
GPIO | 1 x 14bit GPIO (Optional) |
Others | 2 x 3-wire COM3&COM4 RS-232/485 Phoenix Terminal 2 x 3-wire COM5&COM6 RS-232 Phoenix Terminal 1x Phoenix terminal remote switch interface |
Storage | |
MSATA | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s 1xM.2² (Core CPU only) |
SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
Wi-Fi | |
Module | 1x Mini PCIE Half port for WiFi module 1x Mini PCIE Full port for 3G/4G module |
Antenna | 2 x inner RF cables without external antennas, |
Power and Working Environment | |
Input | DC 9 ~ 36V 3-pin Phoenix Terminal |
Operating Temperature | -20°C ~ 60°C |
Storage Temperature | -30°C ~ 70°C |
Storage Humidity | 10~90% @30°C, non-condensing |
Display Information | |
LCD Type | 15" TFT-LCD |
Resolution | 1024x768 |
Max color | 16.7M |
Brightness | 350 cd/m² |
Perspective (CR>=10) | -85~85° (H), -85~85° (V) |
Backlight | LED |
Backlight life (hour) | 30,000 |
Product Dimension & Details | |

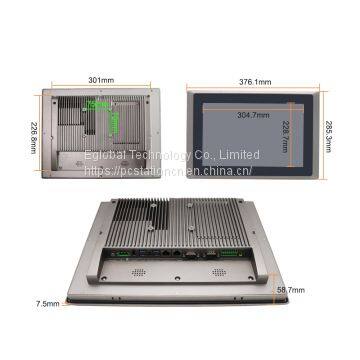

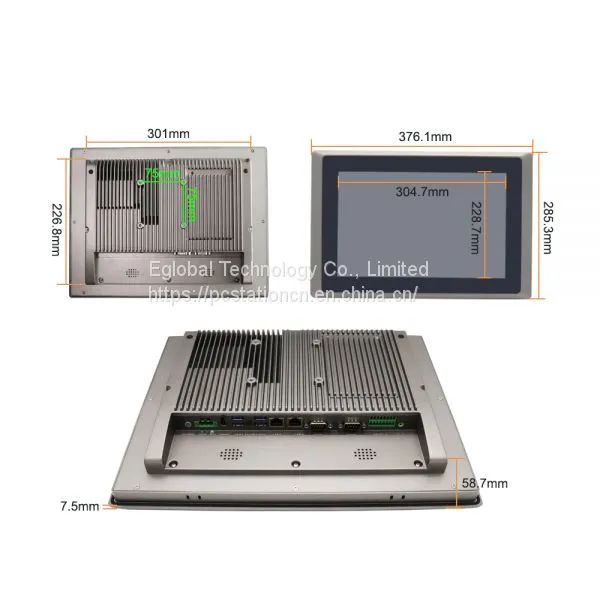

Size | 376.1*285.3*58.7 mm |
Weight | Net 6kg, Gross 7.6kg |
Shell | Silver color aluminum alloy(any customized color for bulk order) |
Installation method | VESA 75/ Panel mounting |
Cooling Mode | Fanless |
Package Content | |
Standard | 1xAll-in-one PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xTouchpen |
Touch Screen Information | |
Type | 5-wire resistive |
Transmitiance | 78% |
Lifetime | 250g clicks 10 million times |
