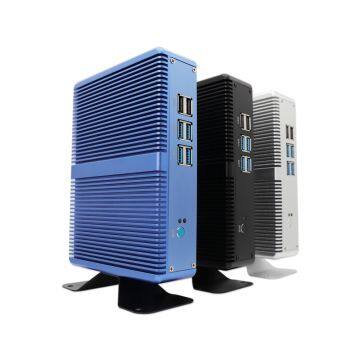

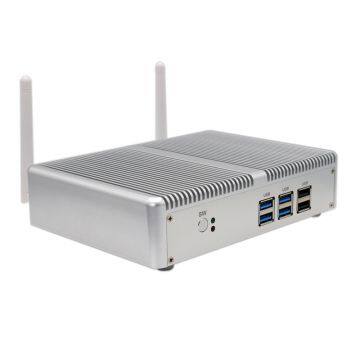

Help CenterIntel Core i3 7100U Fanless Mini PC Wind10 Barebone DDR4/DDR3 4K HTPC WiFi HDMI VGA
Related Products
-
Gaming Computer Intel i9 8950HK 6 Cores 12 Threads Mini PC Win10 2*DDR4 32GB 4K HDMI Mini DPUS$ 580 - 581MOQ: 1 Set -
Industrial Fanless Mini PC i5 8250U 4 Cores 2 * DDR4 2 * COM Wind10 Linux Mini Desktop Computer VGA HDMI Wi-FiUS$ 290 - 300MOQ: 1 Set
-
ALL in One Celeron J1900 Industrial Panel PC Windows 15'' Touch Screen Computer IP65 Waterproof Touch PCUS$ 552 - 553MOQ: 1 Set
-
Mini Computer 2 Lan Intel i9 9880H i7 9850H Windows 10 Pro 2*DDR4 2*M.2 NVMe Desktop Gaming PC 4K HTPC DP HDMIUS$ 610 - 620MOQ: 1 Set
-
CHUWI HeroBox Fanless Mini PC Linux/Win10 (64-bit) Desktop 8+180GB SSD 4K MINI PCNegotiableMOQ: 1
Feature:
♦ Full aluminium silver color shell, Exquisite production craft on ouside design
♦ Fanless system without cooling fan and slim design 174*127*37MM
♦ Low consumption TDP only 15W
♦ Can be mounted back of monitor or wall
♦ Package include the mini pc device, power adapter, a VESA mount, dual WiFi antennas(optional), a HDMI cable( as a gift), a Screw Bag, Warranty Card
General | |
CPU |
Onboard Intel Core i3-7100U 2.4GHz Dual Core Four Thread processor |
Core (FSB) |
100MHz |
CPU Technique |
14nm |
L3 Cache |
3MB Cache, CPU Integrated |
BOIS |
AMI BIOS, ACPI supported Support calls on function automatically Support Wake-On-LAN |
Chipset |
Intel KABY LAKE |
Memory |
1* SO-DIMM DDR3L Slot Support 2GB/4GB/8GB DDR3L-1600, DD3L-1333, LPDDR3-1600, LPDDR3-1333 |
Storage |
SSD: 8G/16G/32G/64G/128G/256G/512G/1TB HDD: 160G/320G/500G/1TB |
Operating System |
Windows 7/Windows 8/Windows 10/Linux |
Audio |
ALC662 sound chip, 6-channel Intel Panther Point HDA |
Network |
Onboard Realtek RTL8168E PCI-E Gigabit Ethernet NIC 10/100Mbps/1000Mbps BaseT LAN |
Video |
Intel HD Graphics 5500 |

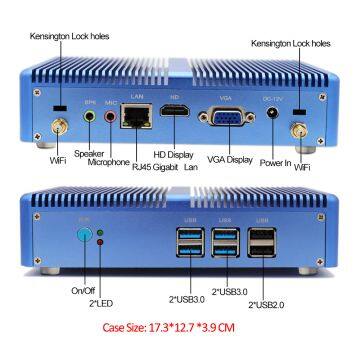

I/O port | |
front panel ports |
2*USB2.0, 2*USB3.0, 1* Power indicator and switch |
Backside ports |
1*HDMI, 1*VGA, 1*LAN, 1*MIC, 1*SPK, 2*WiFi antennas |
Internal ports |
1*M-SATA3.0 port, support 6Gb/s 1*SATA3.0 port, support 6Gb/s 1*mini-PCIE port(WIFI&Bluetooth) |
Power and Working Environment | |
Input |
DC100-240V AC/50-60Hz |
Output |
DC 12V~19V/5A |
Operating Temperature |
0/70 Centigrade(32F~140F) |
Storage Temperature |
-20/+85 Centigrade |
Relative Humidity |
0%~90% (non-condensing) |
Energy-saving |
Support Energy-saving technology, Speedstep |
64 bit computing |
Support 64 bit computing |
Virtualization |
Intel VT-x |
Hyper-threading |
Support Hyper-Threading |
Product Dimension & Details | |
Size |
174*127*37MM |
Weight |
1.5KG |
Consumption |
15W |
Shell |
Silver color aluminum alloy |
Package Content |
Mini PC device, power adapter, a VESA mount, dual WiFi antennas(optional), a HDMI cable( as a gift), a Screw Bag, Warranty Card |
