Specifications:
Brand: EGLOBAL
Type: Mini PC
Video Card Type: Built-in Card
Type: Desktop Minicomputer Processors
Model: Core i5 8250U Processor
Manufacturer: Intel
Article: GK / G4
Hard Disk Capacity: ≤ 40 GB
Memory Capacity: ≤ 128 MB Ubuntu
Feature: Fanless System 0.00 dB
Wireless: 300M Wifi with dual antennas
Graphic Card: Intel UHD Graphics 620
App: Industrial, education, business, home theater, projects
Color: Black
Chasis: All aluminum alloy
Capacity: 1 pcs Msata SSD + 1pcs 2.5 inch HD supported
Memory Type: 2 * DDR4 Non-ECC laptop RAM slot
Warranty: 3 years
Feature:
1. Full aluminum black/silver color shell, Exquisite production craft on ouside design
2. Fanless system without cooling fan, fit for industrial grade field, work as long as 24 hours
3. Support Watchdog, Auto power on, RTC, PXE boot, State lamp interface, trigger switch(wafer 1*2), CMOS clear button
4. Low consumption TDP only 15W
5. Can be mounted on the wall
6. Package include the mini pc device, power adapter, dual WiFi antennas(optional), a HDMI cable( optional), a Screw Bag
General | |
CPU |
Onboard Intel Core i5-8250U 1.6GHz Max 3.4GHz Quad Core Eight Threads processor |
Core (FSB) |
100MHz |
CPU Technique |
14nm |
L1 Cache |
4 x 32 KB, 8-Way, 64 byte lines |
L2 Cache |
4 x 256 KB, 4-Way, 64 byte lines |
L3 Cache |
6 MB, 12-Way, 64 byte lines MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, HTT, EM64T, EIST, Turbo Boost |
Motherboard |
Xeon E3-1200 v6/7th Gen Intel Core/DRAM Registers - 5914 - 7th Generation Intel Processor Fami |
BOIS |
American Megatrends Inc. 5.12 |
Chipset |
Intel KABYLAKE |
Memory |
2* SO-DIMM DDR4 Slot Support 4GB/8GB/16GB/32GB Dual channel, DDR4-2400, LPDDR3-2133 |
Storage |
1*MSATA SSD: 8G/16G/32G/64G/128G/256G/512G/1TB 1*SATA HDD: 160G/320G/500G/1TB |
Operating System |
Windows 10/Linux |
Audio |
Intel High Definition Audio Controller |
Network |
Onboard Intel i211 Gigabit Network Connection 10/100Mbps/1000Mbps BaseT LAN |
Video |
Intel UHD Graphics 620 |

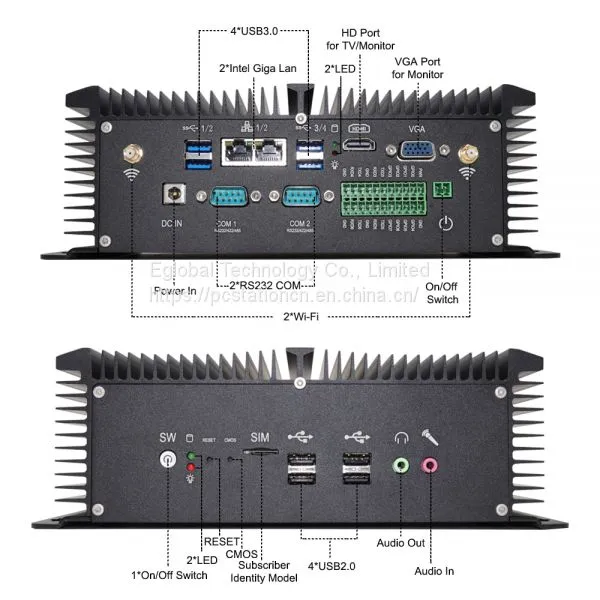

I/O port | |

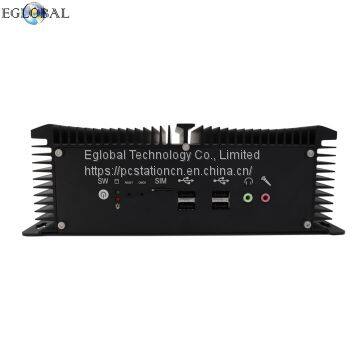

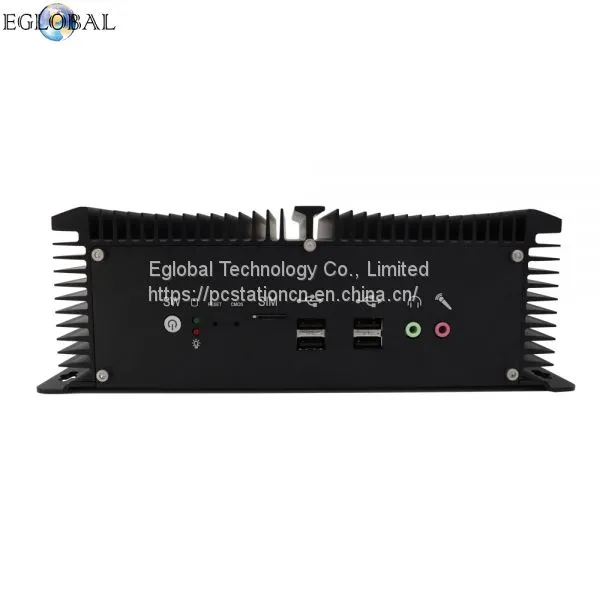

front panel ports |
1* Switch, 2*LED(red for power, green for hard disk), 1*Reset, 1*CMOS clear button, 1*SIM Card slot, 4*USB2.0, 1*MIC, 1*SPK |

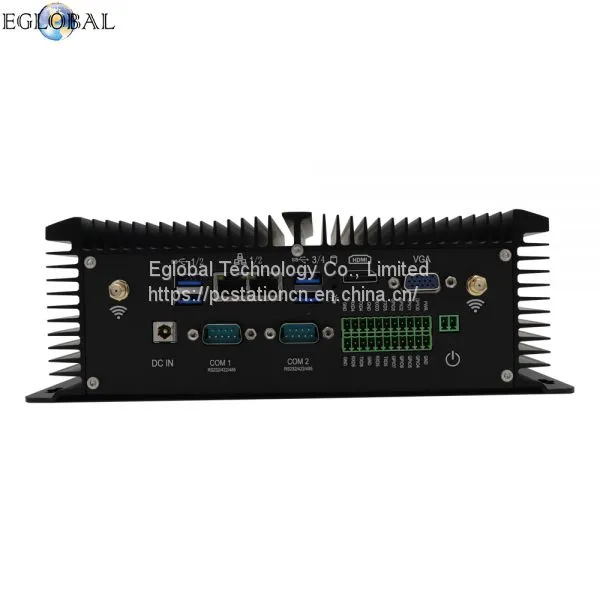

Backside ports |
2*WIFI, 1*DC IN, 4*USB3.0, 2*LED(red for power, green for hard disk), 1*HDMI, 1*VGA, 2*RJ45 LAN, 2*COM, 1*GPIO, 1*2Pin Phoenix terminal power supply input |
COM |
2*COM ports, can change to RS232/422/485 from BIOS |
SIM |
Embedded SIM card slot with push function |
Internal ports |
1*M-SATA3.0 port, support 6Gb/s 1*SATA3.0 port, support 6Gb/s 1*mini PCIE-half port for WiFi module 1*mini PCIE-full port for 3G/4G module |
Power and Working Environment | |
Input |
DC100-240V AC/50-60Hz |
Output |
DC +9V~+36V, recommend 12V/5A |
Operating Temperature |
0/+60Centigrade |
Operating Humidity |
0%~90% (non-condensing) |
Storage Temperature |
-20/+80 Centigrade |
Storage Humidity |
0%~50% (non-condensing) |
Relative Humidity |
20%~85% (non-condensing) |
MTBF |
MTBF = 50,000h |
Vibration frequency (5 ~ 200 Hz) |
(1g) acceleration amplitude (0.5mm) |
Impact |
Acceleration (10g) duration (11MS) |
Product Dimension & Details | |
Size |
150*83*224mm(248mm chassis) |
Weight |
3.5KG |
Consumption |
15W |
Shell |
Black/Silver color aluminum alloy(any customized color for bulk order) |
Package Content |
Mini PC device, power adapter, dual WiFi antennas(optional), a HDMI cable( optional), a Screw Bag |
Business Terms:
1) Delivery Time: 1~2 business days for sample preparation, 3~5 business days for big quantity delivery;
2) Warranty: All computers above are offered with 3 years warranty and have CE, FCC, ROHS certification;
3) Payment Mode: PayPal(Sample Order), T/T, Western Union and Moneygram are accepted.
4) Payment: 100% payment in advance for small order; 30% TT in advance, balance before shipment for qty order.
5) OEM Service: supply free OEM service for order qty up to 100 units per time, otherwise may charge OEM fees.
(OEM include: Logo printing and pasting, customer designing package printing and packing, some function design and produce for big QTY orders.)
