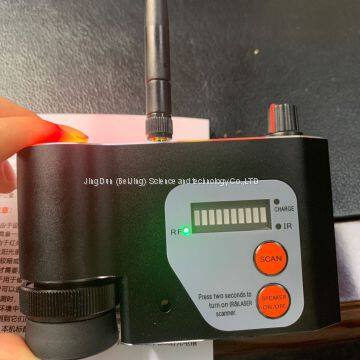

301 Multi-function Detector (RF Detector, Detector of Hidden Video Cameras) LaserScan Hidden Camera Locator / Detector

Product description:

As electronic products become smaller and more intelligent, electronic products such as pinhole cameras, bugs and locators become smaller and smaller, and the camouflage becomes more and more concealed. While such products are used for legal purposes, illegal elements also appear to make them used for illegal snooping on other people's privacy, which brings many unsafe factors to the society and individuals, such as intelligence leakage, business secrets being stolen, personal privacy being secretly photographed, etc. It becomes a difficult problem to effectively find out the illegally installed equipment for stealing secrets.

After comprehensively analyzing the characteristics of various pinhole cameras, bugs and locators in the market, thedevelopers of this product have concluded that to realize non-contact detection of such devices, detection shall be conducted from the following three aspects:

1、 Detect the electromagnetic RF signal emitted by the target device.

The target device basically has one feature: it communicates with the device controller by emitting electromagnetic signals. Whether the operator is using the communication network or the WiFi network to transmit the audio and video obtained by the theft, they will radiate electromagnetic wave signals, so the detection of electromagnetic wave signals is one of the detection methods.

2、 Detection of pinhole camera imaging lens

Basically all cameras require optical lenses to focus on ambient light. And no matter what object the camera body is masquerading as, its optical lens must be exposed to the visual range.For normal shooting, use a special beam generator to emit a beam to the target lens to detect the optical lens. The presence and absence of a probe is also an important method of detection.

3、 Detection of infrared signal semitted by the camera

Micro cameras are mounted red next to the lens in order to shoot properly in dark cinditions.The external light is lit to illuminate the environment for easy shooting,so the infrared light emitted by the detection camera is also an effective method.

Product introduction:

This product integrates three detection methods in one,can be on pinhole cameras, eavesdroppers, locators and other equipment optical lens, emitted electromagnetic waves and infrared light for effective detection.

How to use:

Turn the top knob of the detector clockwise to power on, and the product is in electromagnetic wave detection mode by default.

1, Electromagnetic wave detection mode

The detector comes with a radio frequency (RF) detection antenna and an electromagnetic wave signal emitted by the target device when it is detected. The device panel signal strength indicator will indicate the signal strength, and the built-in buzzer will make a sound prompt. The detector’s RF signal detection sensitivity can be adjusted by the top knob,and the radio frequency signal detection sensitivity can be switched on. The default sensitivity is minimal,and continued clockwise rotation increases sensitivity when the RF level indicator first letter. Sensitivity is at its highest when the lights are on, and the probe locator/wiretap is generally medium sensitive. The detection of WIFI cameras requires higher sensitivity to detect.

2, Optical lens detection mode

Frist turn on the detector power, then press the panel SCAN button, the detector’s beam transmitter will issue. A beam of special wavelength and frequency, with the user holding a detector,eyes close to the eyepiece for observation. When the beam emitted by the transmitter hits the optical lens of the detected camera, due to the camera optical lens objentive. The first piece is basically a convex lens that focuses on the incident light emitted by the detector. And reflection, reflecting light at a 180-degree angle in the original way to the light source after the point of transmission installed in the observation eyepiece, light 5X optical amplification through the objective lens, and eventually imaged on the of the observer’s retina via a eyepiece lens through the eyepiece, the camera will be able to clearly see the camera’s lens flashing at 1.6HZ frequency, and then you can enter check the flashing point of light in one step to check if a miniature camera is installed.

3, Infrared detection mode

Short press panel button speaker on/off key can turn off the probe alarm tone, long press the key for two seconds can switch the device from probe RF mode to probe infrared mode.

When the device is in detecting infrared mode, the detector front panel laser pointer is turned on and the front of the panel is detected in infrared. The sensor is in a receiving state, the user is holding the detector to detect the environment, when the infrared detector detects the ring in infrared with a set intensity value, the detector will sound and light an alarm, and the laser pointer will indicate. Indicates the specific installation lication of the infrared emitter, the user can easily find the detected target device.

Attention:

1,because the equipment works in infrared detection mode will also turn on the laser pointer, laser to the human eye has certain damage, so please do not shine a laser pointer on the eyes of a person or animal.

2,because the infrared detection mode sensitivity is relatively high, so during the day light is more adequate, the sun the light also contains infrared light, which can cause false positives.

Infrared detection mode please be in darker light or use the light-off environment because the camera will only need to turn on infrared light in the light Re-lihgting.

3,because of the use of secret filming, eavesdropping, tracking equipment is not always on the state, these devices can be turned on or off by remote control, when we hold a detector to detect, it is possible that these devices are not turned on and we can turn the detector on the and place it in a suspicious environment when the installer when eavesdropping devices are opened remotely, the detectors can detect the radio frequency they emit in a timely manner or an infrared signal and prompt.

4,Charging. The tupe-c charging cable is standard on this machine and can be used with any 5V voltage USB output charger. Charge, the charging light appears red when charging, and the charging light goes out when fully charged.

Product parameters:

RF frequency detection range:10-3000Mhz

RF signal detection distance: (depending on the signal source signal strength)

GSM：50-300cm; 3G&4G：20-100cm ; WIFI：10-100cm

Infrared detection frequency range:750-1000nm

Infrared detection distance:1-10m(depending on light source signal strength)

Laser indicator power: class ll 1mw

Observation of eyeglass magnification:5x optical magnification

Built-in rechargeable lithium battery capacity:500mah

Charging interface:Type-C charging voltage: CD 5V 1A

Built-in battery life:more than 12 hours

Net weight of the product:215g

Product with box weight:360g

Product with box size: 165mm*125mm*55mm
