Description:
This device is a light weight ,portable,battery powered x-ray scanning system dessigned in co-operation with first responders and EOD teams to meet the need of the field operative . It is light weight and comes with user friendly software that helps operators in understanding the functions and operations in a less time. The aim of portable x-ray scanner is to build own capacity and attain self-sufficiency in explosive sweeping through use of most modern gadgetry which will help in detection and locating the explosives hide in bags or other concealed devices.
Applied scene:
Security check,Exploder Clearing, Crime investigation at scene.
Forensic autopsy,check whether there is a foreign body in the body
Nondestructive testing of the industrial sector. Safety check in Security Service.
Custom house,Post and telecommuni-cations Departments.
Features:
Wide application range,Can be assembliedr
apidly on-site.
Imaging plate using amorphous silicon
technology,image is very clear.
Can operate with remote control
in the rear.
Powerful image enhancement andAnalysis tools.
Intuitive interface,Image splicing
infinite,simplicity of operation.
User-friendly software.
Can log in,real-name use system,
Convenient for later verification.
Specification:
A |
Technical Specification of the imaging plate |
|||
1 |
Sensor type |
CsI Direct Deposit |
||
2 |
Imaging area |
433.7 x 354.8 mm2 |
||
3 |
Pixel pitch |
154 μm |
||
Pixel array |
2816X2304 |
|||
4 |
Grayscale |
16 bits |
||
Limiting Resolution |
3.3 lp/m |
|||
Dynamic Range |
＞780dB |
|||
Communication Interface |
GbitE |
|||
Image Acquisition Time |
2-3s |
|||
|
Exposure Control |
F²AED |
|||
Manual |
||||
External Triggner |
||||
5 |
Operating environment |
Natural cooling |
||
8 |
Storage temperature |
-10℃-55℃ |
||
9 |
Storage humidity |
10%-90% RH |
||
10 |
Size |
460x384x15mm3 |
||
11 |
Weight |
3.5kg |
||
12 |
Outer cover |
Carbon fiber plate high-strength aluminum alloy |
||
13 |
Power dissipation |
|||
14 |
Power supply |
100-250V AC |
||
15 |
Frequency |
50/60Hz |
||
16 |
Wireless communication |
Wi-Fi , no less than 30m |
||
Technical Specification – Portable X-Ray Generator | ||||
1 |
Operating Mode |
Pulse, it launches 4000 pulses each time when charged fully |
||
2 |
Best Detecting Distance |
0.7m |
||
3 |
Voltage |
150kV |
||
4 |
Current |
0.5mA |
||
5 |
Penetration |
22mm steel |
||
6 |
Weight |
5.5Kg |
||
Technical Specification – Imaging Station (PC) | ||||
1 |
Type |
Laptop computer |
||
2 |
Processor |
Intel Core i-3, Dual Core Display |
||
3 |
Display |
14” Full High Definition LED Display |
||
4 |
Memory |
2GB |
||
5 |
Hard Drive |
250GB |
||
6 |
Optical Drive |
DVD +/-RW Media Bay Drive |
||
7 |
Operating system |
English MS Windows |
||
8 |
Software |
Adjustable X-Ray source parameters (kV, mA & time) Standard, inverted and false color images Rotate, Histogram, Pan, Zoom, Deep FocusTM |
||

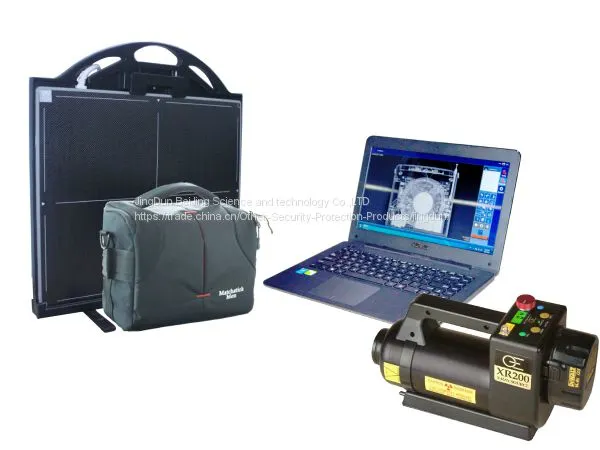

The system comprises
A robust detector pannel
A portable x-ray generator
A laptop imagingstation
Batteries and chargers
Remote control
Sofeware
