Model Number

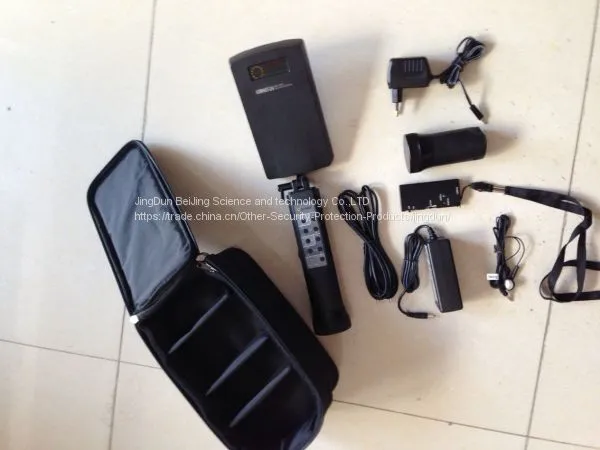

LORNET-24
Ultracompact and lightweight non-linear detector
with 2400 MHz probe frequency
ANALYSIS OF THE NATURE OF SEMICONDUCTOR
For efficient identification of artificial and natural semiconductors a listening through a built in speakerphone or headphones can be used after AM decoding of the signal in continuous mode
ANTIJAMMING
Lornet is equipped with an automatic system of protection against centered jamming by criterion of a minimum noise in the receiver path of the 2nd harmonic
CONTROL
User friendly interface and unified push-button control. It does not require pre-setting before the start
INDICATION
Vivid and explicit indication of power levels of the signal and the received harmonic-waves
Technical characteristics| Probing signal frequency range | 2400MHz +/- |
| The maximum power of the probing signal (peak // average): | |
| Pulse mode | 10W//230mW |
| Pulse mode with small duty cycle (CW) | 200mW |
| Receiver sensitivity, not worse than | -110dBm |
| The adjustment range of the probing signal power | 20dB |
| The dynamic range of the receiving path | 24dB |
| Battery life at maximum power in a pulse (continuous) mode | 3,0h (1,5h) |
| Device dimensions | 39х10х6 (22х11х7)cm |
| The full weight of the item in active state | 0.7kg |
| The bag dimensions | 44х30х35cm |
| The full weight of the item within a bag | 1.7kg |
| The operating temperature range | from +5 to +40℃ |
