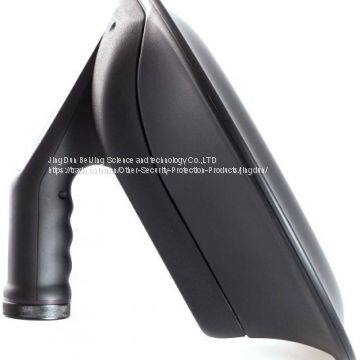

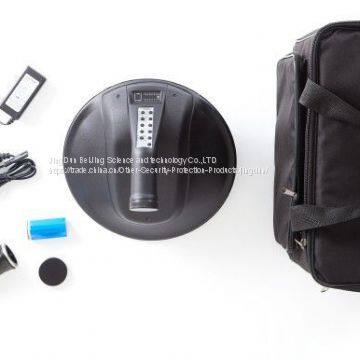

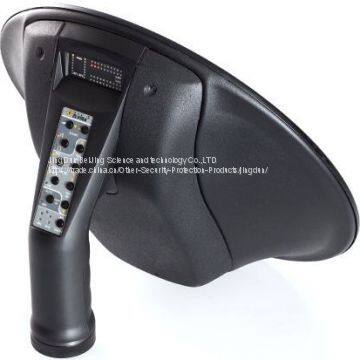

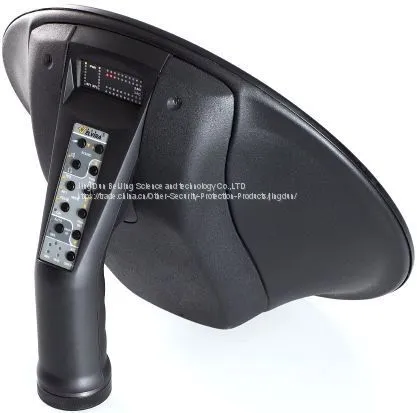

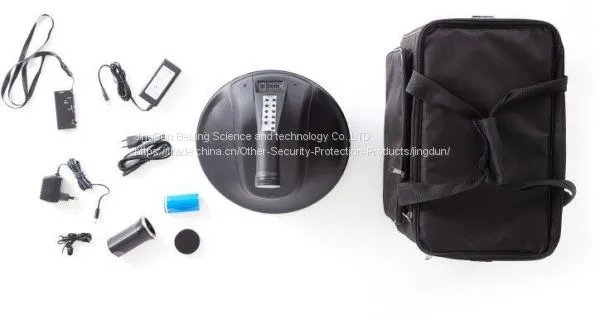

Lornet-0836 - Double Probing Frequency Non-linear Junction Detector
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
LORNET-0836
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ST-402 "Cayman" Non-linear Junction DetectorNegotiableMOQ: 1 Unit -
ST-403 "Cayman" Non-linear Junction DetectorNegotiableMOQ: 1 Unit
-
NR-2000 Non-linear Junction DetectorNegotiableMOQ: 1 Unit
-
NR-M Non-linear Junction DetectorNegotiableMOQ: 1 Unit
-
NR-900EMS Professional Non-linear Junction DetectorNegotiableMOQ: 1 Unit
Model Number
LORNET-0836
The world only non-linear detector operating simultaneously in two frequency ranges:
800 MHz and 3600 MHz
The non-linear junction detector LORNET-0836 is the indispensable tool for quick and reliable detection of devices containing semiconductor components. It can be used for counter-surveilance search works in premises (covert transmitters identification), as well as for location of explosive devices outdoors. The DPF (double probing frequency) technology with a patent pending antenna system places it truly apart from the competition.
Main competitive advantages:
• Duoble probing frequency operation mode gives significant advantages over single frequency NLJD since it is much better to detect small-sized and high-frequency semiconductor objects at high frequencies whereas the use of low frequencies benefits from improved detection in the wet ground and concrete walls;
• It is possible to operate in one of the frequency ranges and in both of them simultaneously;

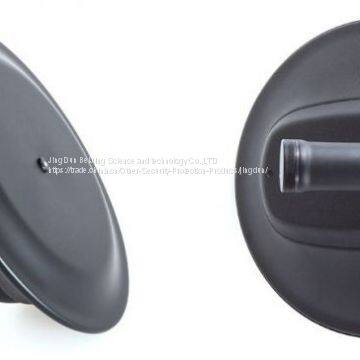

• An embedded parabolic antenna with high gain (20 dB at 3600 MHz) enables highly precise detection of semiconductor components from a long distance.
• Laser pinpointing for a space selective object localisation;
• Wide power control range, automatic and manual modes of probing signal level adjustment;
• Possibility to listen to the envelope detector output as well as to the received signal level via a built-in loudspeaker and wireless head phones to evaluate parametric impacts (e.g. knocking) on the suspicious object.
• Low-frequency range (800 MHz) gives opportunity the operate high humidity.
• High frequency range (3600 MHz)gives opportunity to spatially select the semiconductor elements location
• Reliable detection of the SIM-card at a distance of 80 centimeters.
• Compact device, the weight is 1 kg.
• Lornet is equipped with an automatic system of protection against centered jamming by criterion of a minimum noise in the receiver path of the 2nd harmonic.
• Electromagnetic radiation towards the operator is many times less than one setted by the Regulator.
Technical characteristics
| Probing signal frequency range | 800MHz +/- 3600MHz +/- |
| The maximum power of the probing signal (peak // average): | |
| Pulse mode | 18W//64mW |
| Pulse mode with small duty cycle (CW) | 6W//375mW |
| Receiver sensitivity, not worse than | -110dBm |
| The adjustment range of the probing signal power | 20dB |
| The dynamic range of the receiving path | 24dB |
| Battery life at maximum power in a pulse (continuous) mode | 2,5h (1,5h) |
| Device dimensions | 31х31х28cm |
| The full weight of the item in active state | 1kg |
| The bag dimensions | 44х30х35cm |
| The full weight of the item within a bag | 4.5kg |
| The operating temperature range | from +5 to +40℃ |
