BWC/BWX SERIES Single Way Bearing Auto Clutch With Sprag Type
- Shanghai / Ningbo / Qingdao
- T/T L/C D/P D/A Credit Card PayPal Cash Other
- 1 days
You May Like
-
CKA Series One Way Clutch Bearing
-
CKF-A SERIES Cam Clutch Bearing Backstop Clutch Main Bearing
-
FBF Series One Way Clutch Bearing Complete Freewheels With Flange
-
FSO/HPI Series Sprag Clutch One Way Bearing Clutch
-
GFK SERIES Bearing Manufacturer Clutch Release Bearing One Way
-
GFR Series Freewheel Bearing BACKSTOP CLUTCH
Product Details
| Brand Name | BLUEN | Place of Origin | China | |
| Model Number | BWC/BWX | Number of Row | Single Row | |
| Seals Type | NO | Precision Rating | P6 | |
| Outside Diameter | 71.427, 142.880 | Bore Size | 54.572, 123.881 |
Product Description
BWC Single Way Bearing Auto Clutch with Sprag Type
Description of BWC-13229 Single Way Bearing Auto Clutch with Sprag Type
Type BWC is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing
support for axial and radial loads, lubrication and sealing. The BWC type version-N accepts all types of lubricants currently
used in the power transmis-sion equipement. The sprag space tolerance must not be exceeded. Inner and outer races must
both have a minimum plain width "e", without any recess, to ensure the freewheel functions correctly. Alternatively, races can be
made in case hardened steel shafts, or housings, to the specification below. Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0, 6 mm minimum. Core hardness to be HRC35 to 45. Surface roughness not to exceed 22CLA.

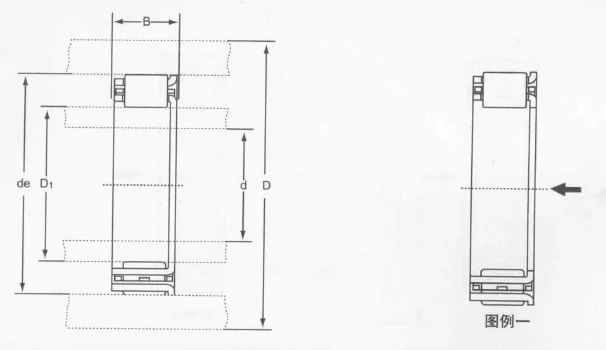

Parameter of BWC-13229 Single Way Bearing Auto Clutch with Sprag Type
| Type | Inside shaft Diameter | Outside Shaft Diameter | Maximum Width | Rated Drag Torque | ||
| D1 | Sprag Space | De | Sprag Space | B | N.M (kgf.m) | |
| x-135006 | 54.572 | +0.008-0.005 | 71.211 | ±0.013 | 20.5 | 799 (81.5) |
| BW-13231 | 54.765 | - | 71.427 | - | 13.5 | 402 (41.0) |
| BW-13214 | 15.9 | 363 (37.0) | ||||
| BW-13167 | 15.9 | 569 (58.0) | ||||
| BW-13209 | 57.760 | - | 74.427 | - | 13.5 | 554 (56.5) |
| BWC-13239B | 15.9 | 711 (72.5) | ||||
| BW-13238 | 21.0 | 1050 (107) | ||||
| X-133401 | 59.538 | - | 76.200 | - | 25.4 | 1350 (138) |
| BW-13243 | 72.217 | - | 88.882 | - | 13.5 | 637 (65.0) |
| BWC-13168 | 21.0 | 1510 (154) | ||||
| BWC-13229 | 21.6 | 1325 (135) | ||||
| BW-13255 | 26.7 | 1920 (196) | ||||
| X-133614C | 83.596 | ±0.013 | 102.555 | - | 25.4 | 3040 (310) |
| X-133402 | 85.776 | - | 104.775 | - | 25.4 | 3090 (315) |
| BWC-13251 | 103.231 | - | 119.944 | - | 15.4 | 789 (80.5) |
| BWC-13261 | 15.4 | 1580 (161) | ||||
| X-133639 | 103.231 | - | 122.230 | - | 25.4 | 4410 (450) |
| X-133403 | 123.881 | - | 142.880 | - | 25.4 | 5740 (585) |
