FE Series FE425Z Backstop Clutch FE428Z One Way FE Series Miniature Sprag Clutch

FE Series FE425Z Backstop Clutch FE428Z One Way FE Series Miniature Sprag Clutch thumbnail-1
FE Series FE425Z Backstop Clutch FE428Z One Way FE Series Miniature Sprag Clutch thumbnail-2
FE Series FE425Z Backstop Clutch FE428Z One Way FE Series Miniature Sprag Clutch thumbnail-3
FE Series FE425Z Backstop Clutch FE428Z One Way FE Series Miniature Sprag Clutch thumbnail-4
FE Series FE425Z Backstop Clutch FE428Z One Way FE Series Miniature Sprag Clutch thumbnail-5

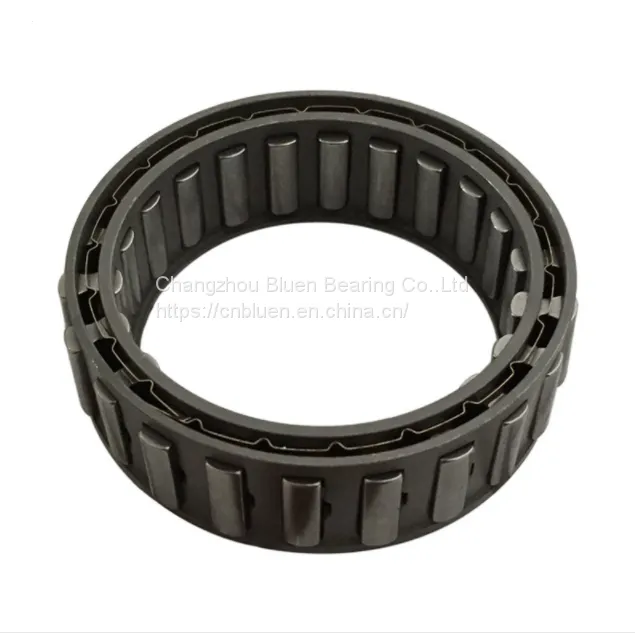

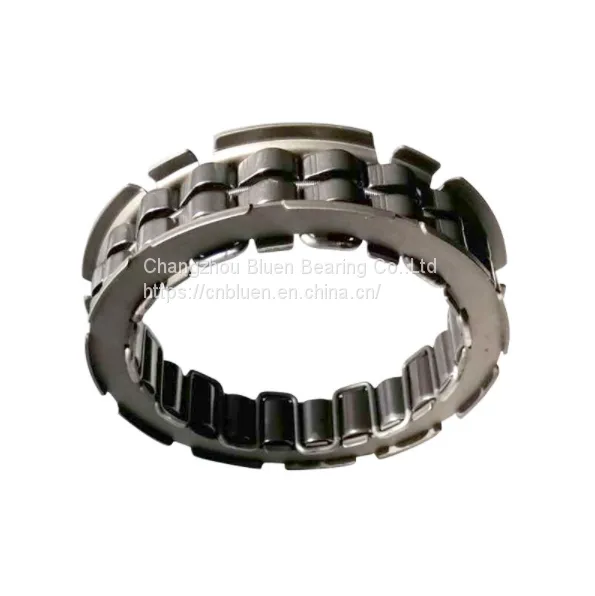

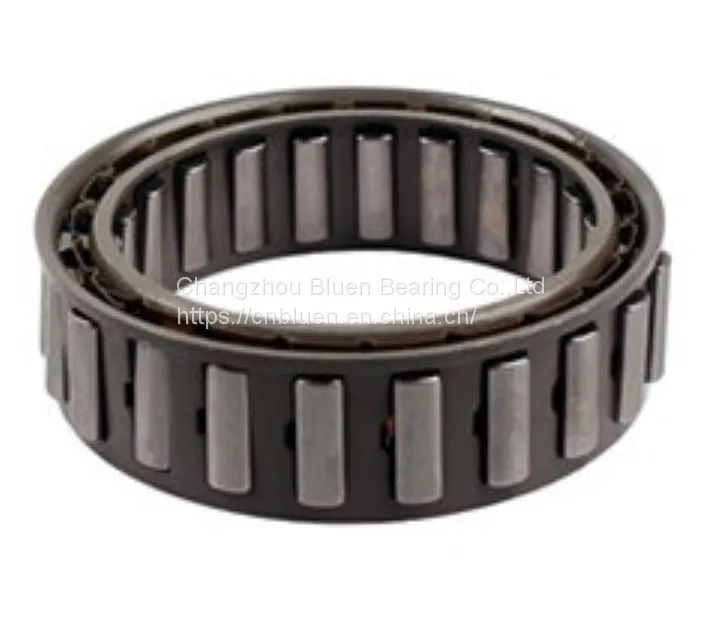

FE Series FE425Z Backstop Clutch FE428Z One Way FE Series Miniature Sprag Clutch photo-1

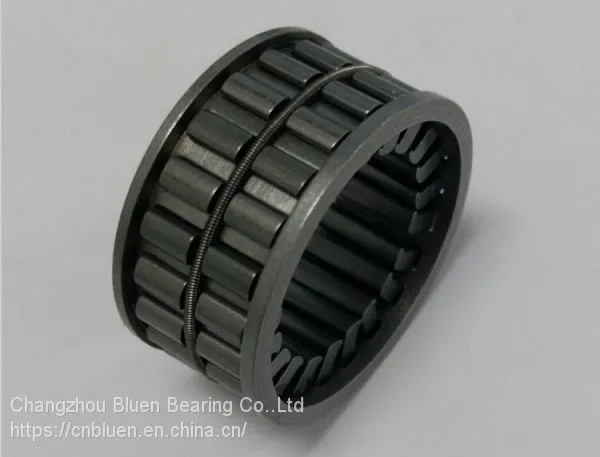

FE Series FE425Z Backstop Clutch FE428Z One Way FE Series Miniature Sprag Clutch photo-2
FE Series FE425Z Backstop Clutch FE428Z One Way FE Series Miniature Sprag Clutch photo-3
FE Series FE425Z Backstop Clutch FE428Z One Way FE Series Miniature Sprag Clutch photo-4

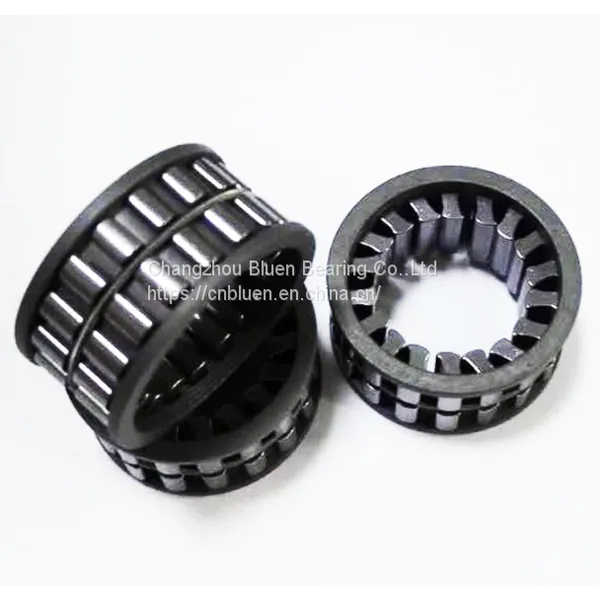

FE Series FE425Z Backstop Clutch FE428Z One Way FE Series Miniature Sprag Clutch photo-5
US$ 6 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
BLUEN
Place of Origin:
China
Model Number:
FE425Z/ FE428Z
Contact Supplier Request Quote Chat Now
Changzhou Bluen Bearing Co..Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai / Ningbo
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BLUEN
Place of Origin China
Model Number FE425Z/ FE428Z
Number of Row Single Row
Seals Type Open
Precision Rating P0
Outside Diameter 18, 88
Bore Size 2, 80

FE Series Sprag Type One Way Clutch

Feature

Freewheelclutches transmit or support torque moment by friction contact in one direction and permit idling in the opposite direction.Freewheelclutches are used as:Indexing elements to change from oscillating to intermittent rotary motion.Backstops to prevent self reversing due to load condition when the machine is not activated.Overrunning clutches to maintain driven unit activated even during slowdown, or in the case of two speed operation (by independent motors) to switch to the higher speed by passing the slower.A large quantity of freewheelclutches with varying design features and dimensions are available, depending on requirements such as: Torque, indexing frequency, idling speed and environment.The supporting equipment around the clutch has to be built accurately and of high quality for the clutch to operate properly This is why we offer support units or complete assemblies of freewheel clutches. Lubrication is especially important to obtain maximum life of freewheel clutches. Good lubrication decreases drag. Please refer to our Lubrication Selection Table for proper selection.Clutches (except the sealed Clutches of series FND, FPD, FK 62...-RS, FK 62...-2RS, FKN...RS and FKN...-2RS) are shipped rustprotected not lubricated.
For extreme applications, please consult with our technical staff.
FE448 ;FE443 ;FE422; FE423 ; FE428; FE427 ;FE432; FE433 ;FE453 ; FE437 in stock.



Different Sizes for Your Reference


Designation

d

[mm]

D

[mm]

W

[mm]

Tnom

[Nm]

nmax

[rpm]

Weight

[kg]

 Item no.
FE 412 Z 4 12 12 4 27,000 0.003 300393
FE 416 Z 8 16 12 16 19,200 0.006 300400
FE 420 Z 12 20 12 35 12,500 0.007 306041
FE 422 Z 14 22 12 53 10,100 0.008 300405
FE 423 Z 15 23 12 62 9,200 0.009 300411
FE 425 Z 17 25 12 72 8,100 0.011 300415
FE 427 Z 19 27 12 83 7,400 0.013 300422
FE 428 Z 20 28 12 93 7,500 0.013 300430
FE 430 Z 22 30 12 107 6,300 0.014 300435
FE 432 Z 24 32 12 117 5,900 0.016 300439
FE 433 Z 25 33 12 128 6,000 0.016 300445
FE 435 Z 27 35 12 143 5,100 0.017 300448
FE 437 Z 29 37 12 154 4,800 0.018 300455
FE 438 Z 30 38 12 166 4,900 0.019 300460
FE 442 Z 34 42 12 198 4,400 0.018 300463
FE 443 Z 35 43 12 207 4,300 0.022 300469
FE 448 Z 40 48 12 248 4,200 0.024 300478
FE 453 Z 45 53 12 293 3,400 0.022 300482
FE 455 Z 47 55 12 313 3,300 0.026 300487
FE 458 Z 50 58 12 344 3,100 0.029 300489
FE 459 Z 51 59 12 353 3,000 0.030 300494
FE 463 Z 55 63 12 393 2,900 0.032 300497
FE 468 Z 60 68 12 444 2,700 0.034 300501
FE 470 Z 62 70 12 465 2,600 0.035 300505
FE 473 Z 65 73 12 495 2,500 0.037 300508
FE 478 Z 70 78 12 548 2,600 0.039 300511
FE488Z 80 88 12 657 2,100 0.045 300514
FE 508 Z 100 108 12 889 1,700 0.055 300519
FE 528 Z 120 128 12 1,127 1,300 0.066 300522
FE 648 Z 240 248 12 2,673 800 0.131 300524


3_10

3_08

3_10

3_08



Product Tags: One way bearing , One way clutch , Backstop clutch , Freewheel clutch , FE , Sprag clutch , Cam clutch
