Home > Products > Ready to ship products > 1.8 degree 34mm length 4 wires 1.2A holding torque 16Ncm 2 phase hybrid NEMA 16 stepper motor shaft options single double D-cut

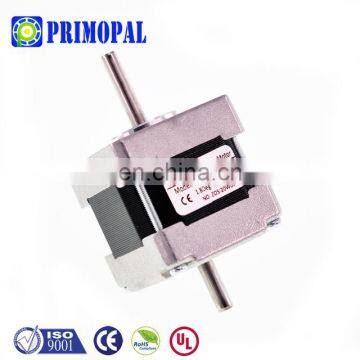

1.8 degree 34mm length 4 wires 1.2A holding torque 16Ncm 2 phase hybrid NEMA 16 stepper motor shaft options single double D-cut
USD $5.3 - $5.8
/ Piece
1 Piece(Min.Order)
- 1000 Piece / Pieces per Month
- T/T Credit Card
You May Like
-
1.8 degree 4 wire 3A 2 phase 56mm length 110N.cm Square cheap nema 23 stepper motor shaft options Single double round D-cut
-
1.8 degree 40mm length 4 wires 0.6A 1.2A holding torque 24Ncm 2 phase NEMA 16 stepper motor shaft options single double D-cut
-
1.8 degree 20mm length 4 wires 0.42A holding torque 8Ncm 2 phase single D-cut shaft cheap hybrid NEMA 16 stepper motor
-
Nema 42 1.8 degree 8A 2phase key shaft 200mm length 29N.cm holding torque key shaft square stepper motor for welding machine
-
NEMA 14 1.8 degree 20mm length 4 wires 0.4A holding torque 5.0Ncm 2 phase single D-cut shaft cheap hybrid stepper motor
-
0.9 degree 4 wire 1.7A 2 phase 40mm length 36N.cm Square nema 17 stepper motor shaft options Single double round D-cut
Product Details
| Brand Name: | PrimoPal | Place of Origin: | Shanghai, China | Model Number: | PHB39Y Series |
| Type: | Hybrid | Phase: | 2 | Certification: | CE, ISO, ROHS, UL |
| Current / Phase: | Variable, can be custom |
Product Description

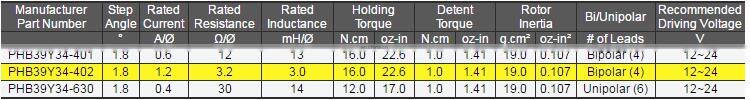

This stepper motor (MPN PHB39Y34-402) is supplied by one of the China's top stepper motor suppliers (PrimoPalMotor). It's a bipolar NEMA 16 hybrid stepper motor with 1.8° step angle (200 steps/revolution), made of high-quality cold rolled steel sheet and anti-high temperature permanent magnet. The rated current is 1.2A per phase, allowing for the holding torque of 16.0Ncm (22.6oz-in). This high-performance and high-reliability motor is terminated with 4 flying ended lead wires, and easily connected to the constant current or chopper drive controller.

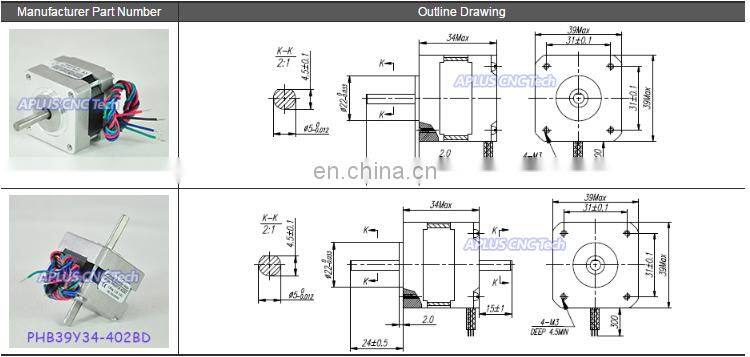

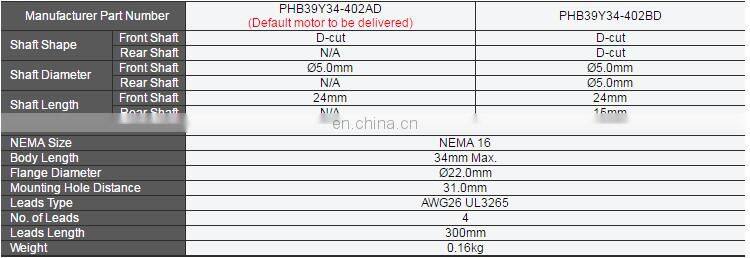

NOTE: 1.This stepper motor (MPN PHB39Y34-402) could be supplied to you with different mechanical specs of shaft, and the detailed info could be found in the following two tables. When placing your order, PLEASE LEAVE A MESSAGE TO US with the exact part number you need. Once the ordered item is shipped out of our warehouse, any requirement of changing the item is NOT acceptable.
2.Custom design could be met by us. Please contact us for confirmation, if different electrical or mechanical specifications are needed.
