Home > Products > Ready to ship products > NEMA 11 1.8 Degree 28mm Length 4 Wires 0.6A Holding Torque 4.5Ncm 2 Phase Stepper Motor Shaft Options Single Double Round D-cut
NEMA 11 1.8 Degree 28mm Length 4 Wires 0.6A Holding Torque 4.5Ncm 2 Phase Stepper Motor Shaft Options Single Double Round D-cut
US$ 7.3 - 8
/ Piece
1 Piece(Min. Order)
- T/T Credit Card
You May Like
-
NEMA 14 1.8 Degree 34mm Length 4 Wires 0.42A 0.8A Holding Torque 18Ncm 2 Phase Single Double D-cut Shaft Stepper Motor
-
NEMA 14 1.8 Degree 42mm Length 4 Wires 0.8A Holding Torque 22Ncm 2 Phase Cheap Stepper Motor Shaft Options Single Double D--cut
-
1.8 Degree 4 Wire 2 Phase 112mm Length 280N.cm Square Nema 23 Stepper Motor Shaft Options Single Double Round D-cut Key
-
1.8 Degree 4.2A 2 Phase 80mm Length 200N.cm Square High Quality Nema 23 Stepper Motor Shaft Options Single Double D-cut
-
NEMA 14 1.8 Degree 28mm Length 4 Wires 0.8A Holding Torque 12Ncm 2 Phase Single D-cut Shaft Cheap Hybrid Stepper Motor
-
NEMA 14 1.8 Degree 52mm Length 4 Wires 0.8A Holding Torque 30Ncm 2 Phase Hybrid Stepper Motor Shaft Options Single Double D-cut
Product Details
| Brand Name | PrimoPal | Place of Origin | Shanghai, China | |
| Model Number | PHB28Y Series | Type | Hybrid | |
| Phase | 2 | Certification | CE, ISO, ROHS, UL | |
| Current / Phase | Variable, can be custom |
Product Description
This stepper motor (MPN PHB28Y28-401) is supplied by one of the China's top stepper motor suppliers (PrimoPal Motor). It's a bipolar NEMA 11 hybrid stepper motor with 1.8° step angle (200 steps/revolution), made of high-quality cold rolled steel sheet and anti-high temperature permanent magnet. The rated current is 0.6A per phase, allowing for the holding torque of 4.5Ncm (6.36oz-in). This high-performance and high-reliability motor is terminated with 4 flying ended lead wires, and easily connected to the constant current or chopper drive controller.

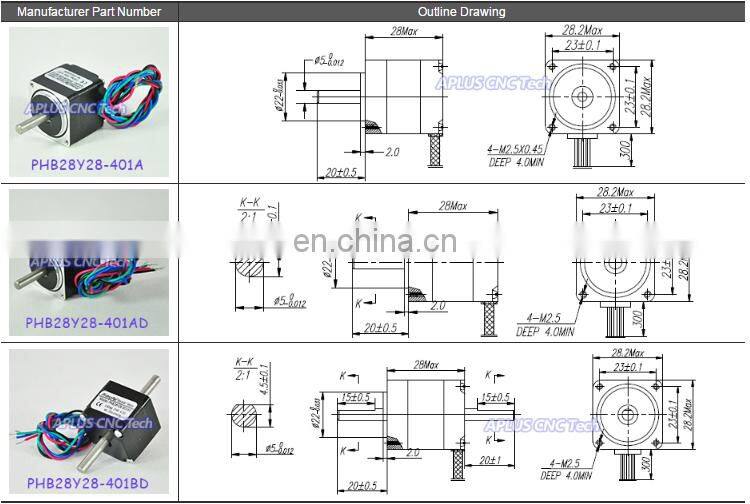

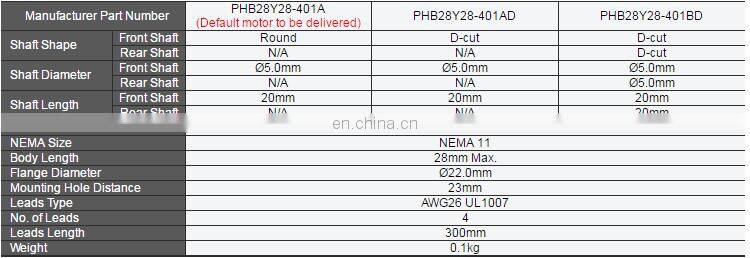

NOTE: 1.This stepper motor (MPN PHB28Y28-401) could be supplied to you with different mechanical specs of shaft, and the detailed info could be found in the following tables. When placing your order, PLEASE LEAVE A MESSAGE TO US with the exact part number you need. Once the ordered item is shipped out of our warehouse, any requirement of changing the item is NOT acceptable.
2.Custom design could be met by us. Please contact us for confirmation, if different electrical or mechanical specifications are needed.
