Home > Electrical & Electronics > Electric Motor > Stepper Motor > Nema34 1.8degree 4wires 5.6A 2.8A 4A 2phase Single Double D-cut Key Shaft 66mm Length 310 220N.cm Holding Torque Stepper Motor
Nema34 1.8degree 4wires 5.6A 2.8A 4A 2phase Single Double D-cut Key Shaft 66mm Length 310 220N.cm Holding Torque Stepper Motor
US$ 23.8 - 26
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
PrimoPal
Place of Origin:
Shanghai, China
Model Number:
PHB86S Series
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1.8degree 3A 1.1N.cm Holding Torque Cheap Nema23 Integrated Stepper Motors for Security System Engraving MachineUS$ 15 - 16MOQ: 1 Piece -
Nema34 1.8egree 4wire 5.6 2.8 4A 2phase Single Double D-cut Key Shaft 150mm Length 1200 850N.cm Holding Torque Stepper MotorUS$ 44 - 48MOQ: 1 Piece
-
Nema34 1.8degree 4wire 5.6 2.8 4A 2phase 78mm Length 420 300N.cm Holding Torque Brake Stepper Motor Shaft Options Single D-cutUS$ 61 - 64MOQ: 1 Piece
-
Nema34 1.8degree 4wire 5.6 2.8 4A 2phase 114mm Length 820 580N.cm Holding Torque Brake Stepper Motor Shaft Options Single D-cutUS$ 67 - 73MOQ: 1 Piece
-
Nema 34 1.2degree 4 Wire 4.5A 3phase 98mm Length 450N.cm Holding Torque Square Stepper Motor Shaft Options Single D-cutUS$ 38 - 42.5MOQ: 1 Piece
Brand Name
PrimoPal
Place of Origin
Shanghai, China
Model Number
PHB86S Series
Type
Hybrid
Phase
2
Certification
CE, ISO, ROHS, UL
Current / Phase
Variable, can be custom

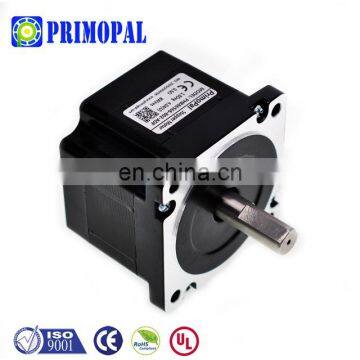

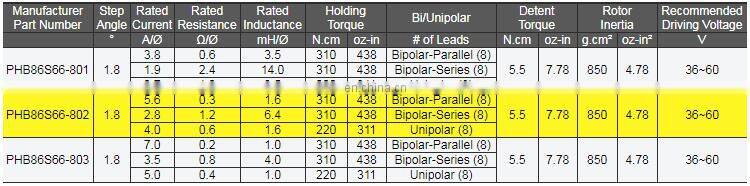

This stepper motor (MPN PHB86S66-802) is supplied by one of the China's top stepper motor suppliers (PrimoPal Motor). It's a NEMA 34 hybrid stepper motor with 1.8° step angle (200 steps/revolution) and body length of 66mm, made of high-quality cold rolled steel sheet and anti-high temperature permanent magnet. The rated current is 5.6A per phase, allowing for the holding torque of 310Ncm (438oz-in), if connected as bipolar-parallel. This high-performance and high-reliability motor is terminated with 8 flying ended lead wires, providing the maximum flexibility for your applications, including bipolar-parallel, bipolar-series and unipolar connections.

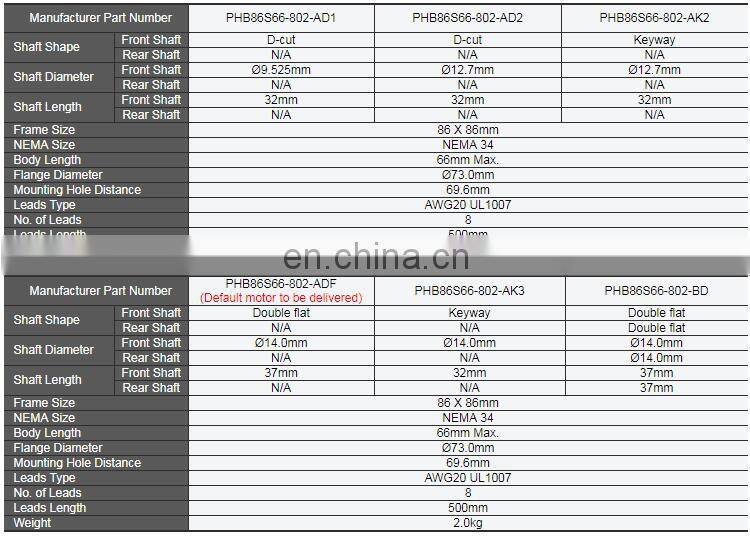

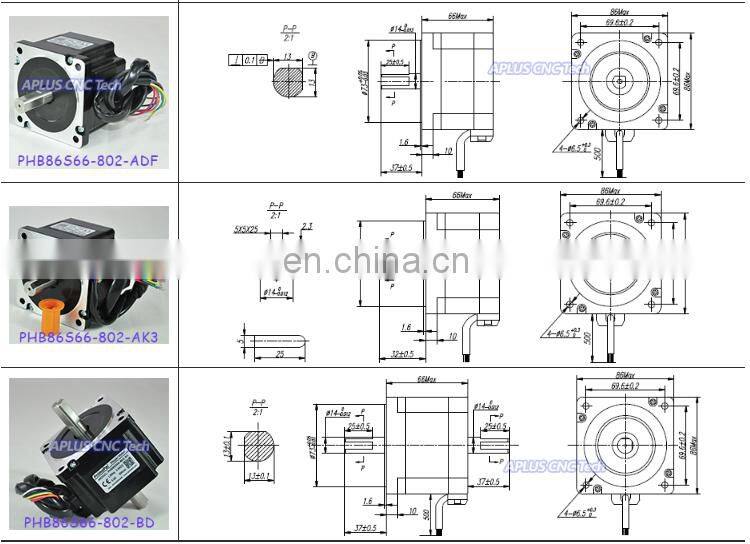

NOTE: 1.This stepper motor (MPN PHB86S66-802) could be supplied to you with different mechanical specs of shaft, and the detailed info could be found in the following two tables. When placing your order, PLEASE LEAVE A MESSAGE TO US with the exact part number you need. Once the ordered item is shipped out of our warehouse, any requirement of changing the item is NOTacceptable.
2.Custom design could be met by us. Please contact us for confirmation, if different electrical or mechanical specifications are needed.
