NEMA 8 1.8 degree 28mm length 4 wires 0.6A holding torque 1.4Ncm 2 phase double round hollow shaft stepper motor
USD $14.5 - $15.5
/ Piece
1 Piece(Min.Order)
- 1000 Piece / Pieces per Month
- T/T Credit Card
You May Like
-
Nema34 1.8degree 4wires 5.6A 2.8A 4A 2phase 98mm length 650 490N.cm holding torque motor shaft options single double D-cut key
-
Nema 24 1.8 degree 4 wires 4.2A 2 phase single D-cut shaft 90mm length 260N.cm holding torque square stepper motor
-
1.2 degree 4 wires 3.5A 3 phase single D-cut shaft 90mm length 160N.cm holding torque square Nema 24 stepper motor
-
Nema34 1.8degree 4wires 5.6A 2.8A 4A 2phase single double D-cut key shaft 66mm length 310 220N.cm holding torque stepper motor
-
1.8degree 3A 1.1N.cm holding torque cheap Nema23 Integrated Stepper Motors for security system engraving machine
-
Nema34 1.8egree 4wire 5.6 2.8 4A 2phase single double D-cut key shaft 150mm length 1200 850N.cm holding torque stepper motor
Product Details
| Brand Name | PrimoPal | Place of Origin | Shanghai, China | |
| Model Number | PHB20Y Series | Type | Hybrid | |
| Phase | 2 | Certification | CE, ISO, ROHS, UL | |
| Current / Phase | Variable, can be custom |
Product Description
This stepper motor (MPN PHB20Y28-406) is supplied by one of the China's top stepper motor suppliers (PrimoPalMotor). It's a bipolar NEMA 8 hybrid stepper motor with 1.8° step angle (200 steps/revolution), made of high-quality cold rolled steel sheet and anti-high temperature permanent magnet. The rated current is 0.6A per phase, allowing for the holding torque of 1.4Ncm (1.96oz-in). This high-performance and high-reliability motor is terminated with 4 flying ended lead wires, and easily connected to the constant current or chopper drive controller.

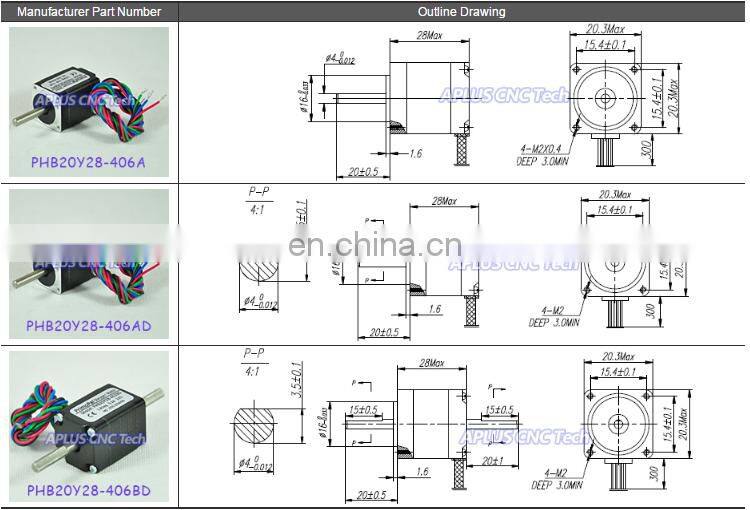

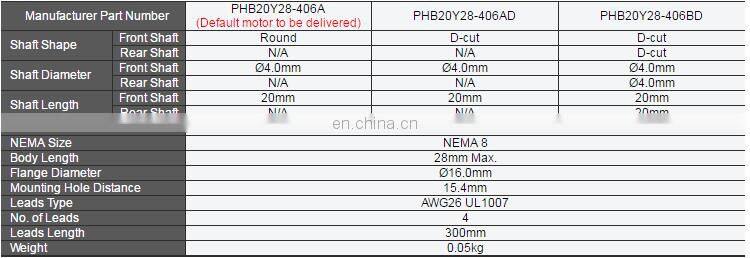

NOTE: 1.This stepper motor (MPN PHB20Y28-406) could be supplied to you with different mechanical specs of shaft, and the detailed info could be found in the following tables. When placing your order, PLEASE LEAVE A MESSAGE TO US with the exact part number you need. Once the ordered item is shipped out of our warehouse, any requirement of changing the item is NOT acceptable.
2.Custom design could be met by us. Please contact us for confirmation, if different electrical or mechanical specifications are needed.
