QDD-2 Horizontal Type Large Torque Pneumatic Brake
- Shanghai
- T/T L/C Credit Card Other Cash
You May Like
-
QDD-3 Large Torque Friction Type Caliper Disc Brake
-
QDD-3N Spring Engaged Air Caliper Disc Brake
-
QDE-4N Spring Applied Air Release Caliper Disc Brake
-
QDE-3.5N Normal Braking Air Friction Brake for Wire Machine
-
QDF-2 China Factory Supply Horizontal Clamp Plate Air Brake
-
QDG3-A2155 Air Engaged Caliper Disc Brake for Cable Machine
Product Details
| Brand Name | Handong HD | Place of Origin | China | |
| Model Number | QDD-2, QDD-3 |
Product Description

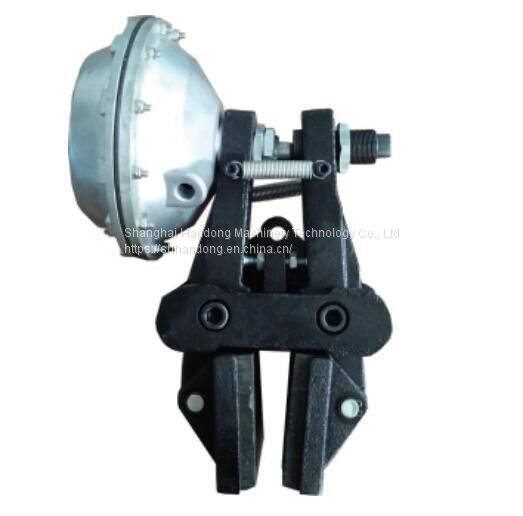

QDD-2 Horizontal type large torque pneumatic brake
QDD model horizontal type pneumatic brake is large braking torque friction type brake. There are two models of it: QDD-2, QDD-3. They can produce high braking force after inputting air source.

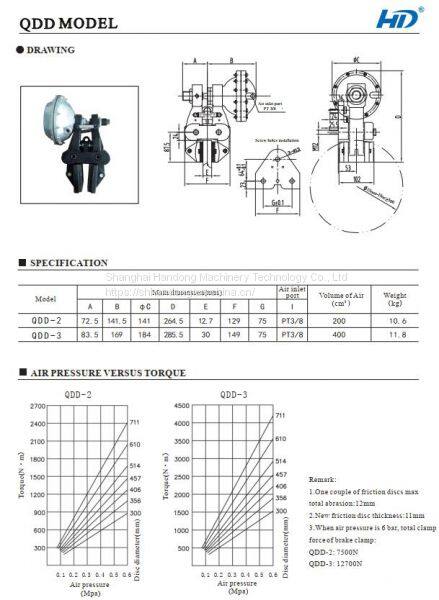

Following is the detail technical data of this type brake:
For this structure and technical data table, we will know that QDD-3 braking force is nearly twice of QDD-2. For example, when braking disc diameter is 300mm. QDD-2 braking force is 900N.m, while QDD-3 produce braking power is 1500N.m. Max braking torque of QDD-2 is 2400N.m, QDD-3 is 4200N.m.
Each brake produce and package are strictly in our factory, to make sure each product with superior quality.
