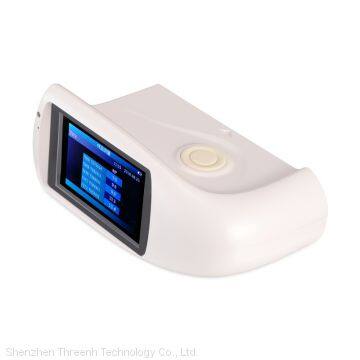

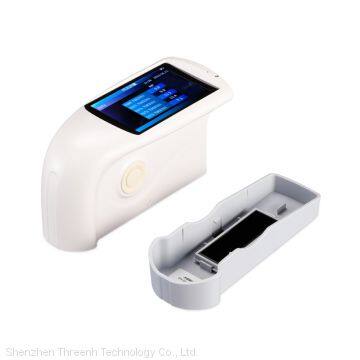

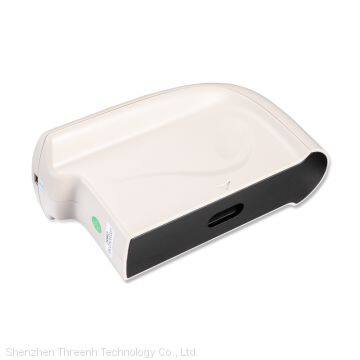

Help Center3NH 60° Luster Meter Accurate Gloss Meter for Marble Plastic Metal -- HG60
Related Products
-
3NH 20°/60°/85° Economic Gloss Meter 3 Angles Luster Meter for Marble Plastic MetalNegotiableMOQ: 1 Piece -
3NH 60° Gloss Meter Economic Accurate Manual Luster Meter for Paint Paper CarNegotiableMOQ: 1 Piece
-
3NH 60° Micropore Gloss Meter Economic Accurate Luster Meter for Marble Plastic MetalUS$ 180 - 200MOQ: 1 Piece
-
3NH 20°/60°/85° Smart Gloss Meter Touch-screen Tri Angles High Accurate Luster Meter for Marble Plastic MetalNegotiableMOQ: 1 Piece
-
3NH 60° Gloss Meter Touch-screen Smart Luster Meter for Granite Floor Car PaintNegotiableMOQ: 1 Piece
HG60 gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457. HG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.
HG60 gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.
Features:
1. 60° angle for semi gloss
2. Concise appearance, feel good
3. Display 5 sets of measurement data, good for comparison
4. Built-in lithium ion rechargeable battery
5. Basic model measurement can meet basic glossiness testing requirements
6. Connect to PC, more extend functions
7. One button for all angles measurement at the same location
8. Comply with international standards
9. Stable performance, easy to read data.
GQC6 Software Introduction:
GQC6 Software is used with 3nh gloss meter for PC connection, measurement, data management, data export, print reports, etc.
Model: | HG60 |
Measuring Angle | 60° |
Measuring Area (mm) | 9x15 |
Measuring Range | 0~300GU |
Division Value | 0.1GU |
Measurement Range Repeatability Reproducibility | 0-10GU 10-100GU 100-300GU |
Measurement Standard | Conform with JJG696 first class glossmeter working requirement |
Chromaticity Corresponding | Corresponding with CIE 1931(2°) under CIE C light source |
Errors | ±1.5 , ± 1.5% |
Measuring Time | 0.5s |
Dimension | L*W*H : 160mm*75mm*90mm |
Weight | 350g |
Language | Chinese/English |
Battery | 3200mAh Li-ion Battery ，>10000 times(within 8 hours) |
Display | TFT 3.5 inch |
Interface | USB/RS-232 |
Storage | Basic mode: 1000 |
Software | GQC6 Quality Control Software with QC report printing functions and more extended functions. |
Operation Temperature | 0~40℃（32~104°F） |
Storage Temperature | -20~50℃（-4~122°F） |
Humidity | <85% relative humidity, no condensation |

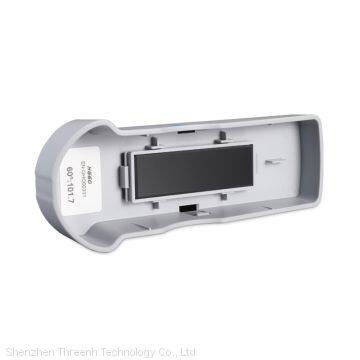

Standard Accessories | Power Adapter, USB cable, User Manual, GQC6 software CD (except HG60S), Calibration Plate |
Optional Accessories | Miniature Printer |
Note | The specifications are subject to change without notice. |
