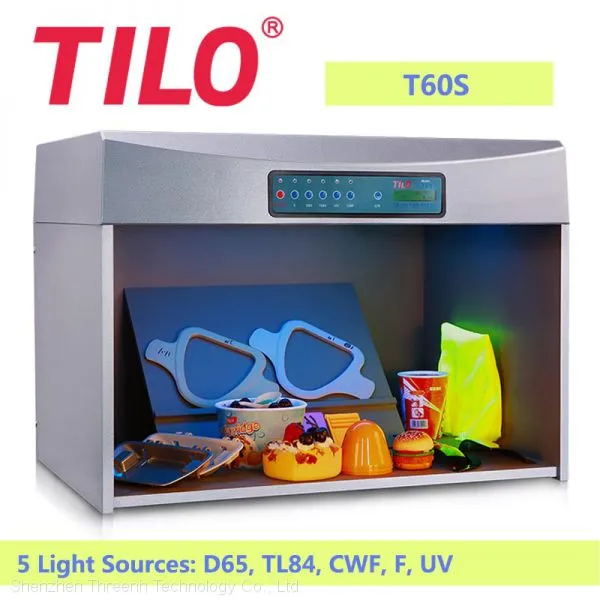

Model: T60S
5 light sources: D65/TL84/CWF/F/UV
Weight: 19.5Kg
Size(L*W*H): 695x552x502mm
T60S standard light box is widely used in many applications such as textile, toy, printing and dyeing, plastic, painting, ink, printing, pigment, chemical industry, ceramics, footwear, leather, hardware, food, cosmetics and other industries. It is general used for checking the color fastness and color difference of samples by eyes, and sometimes for fluorescent materials, so that the sample, production, quality inspection and acceptance
are carried out under the same standard light source. Accurately check the color deviation of the goods to ensure the quality to meet the requirements so as to improve product quality and market competitiveness.
Advantages of standard color light box:
1. Display name, usage count and total usage time of each light source
2. The light source is automatically switched and has the metamerism function.
3. No preheating, no flashing, which insures fast and reliable color evaluation.
4. Low energy consumption, no heat (no need for heat dissipation), high luminous efficiency.
5. Configure a more complete standard light source for English and American standards.
6. Contains American standard A light source and U30 light source
7. The name of the light source can be changed, adding light is more convenient.
Light source:
D65 International standard Artificial Daylight
Color temperature: 6500K Power: 18W
TL84 Applied to stores in Europe, Japan and China
Color temperature: 4000K Power: 18W
CWF (Cool White Fluorescent) American Standard
Color temperature: 4150K Power: 18W
F "Sun-setting Light Yellow" incandescent light source(imitation of sunset)
Color temperature: 2700K Power: 40W
UV Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments
Wavelength: 365nm Power: 18W
