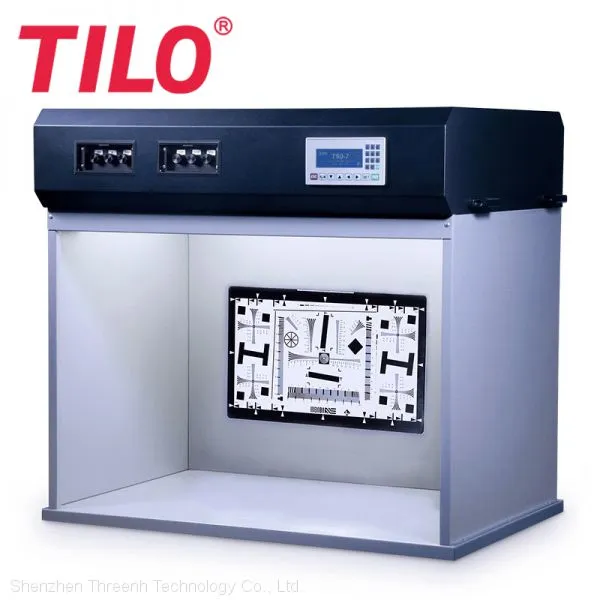

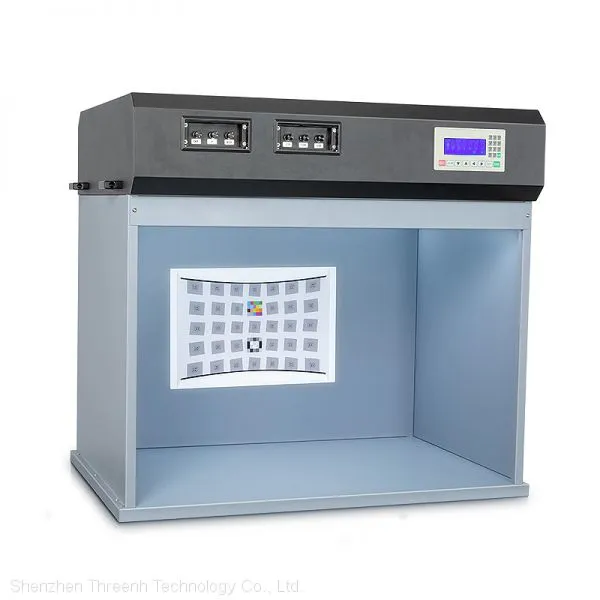

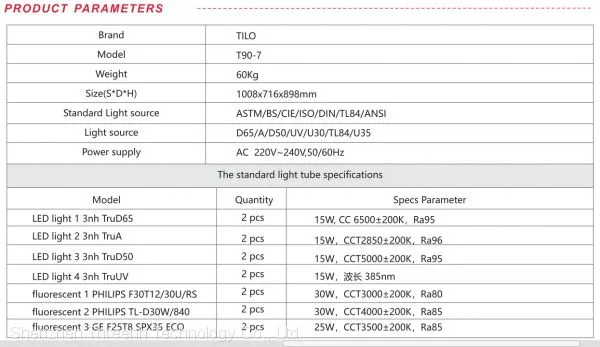

Model: T90-7
7 Light Sources: D65, A, D50, UV, U30, TL84, U35
Weight: 60Kg
Size(L*W*H): 1008*716*898mm
T90-7 color light box adopts 7 light sources, 4 of them are LED and the rest 3 are fluorescent light source (Life up to 25000 times). The multi light source turn-on makes easy to check the metamerism of samples.
Tilo T90-7 color light box is widely used in textile, toy, dye, plastic, pigment, painting, inking, printing, chemical, ceramic, leather, hardware, food etc industries. It can help check color fastness to visual assessment, color proofing, color difference and fluorescent material etc, and ensure these steps, sample, the production, quality inspection, check and accept to be done in the same standard light source. Accurate check the color difference for better color quality control, to improve product competitive.

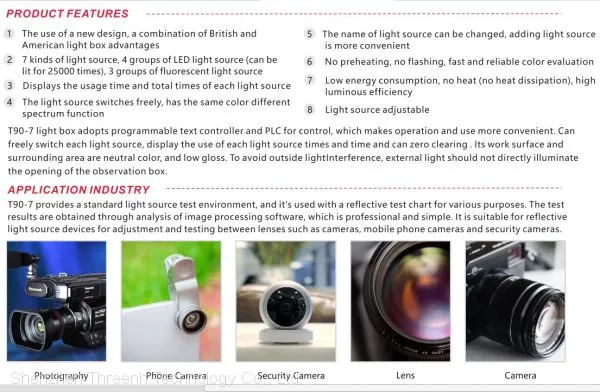

Features:
1. Unique International Design Appearance, combination of the characteristics of Verivide and X-rite light box.
2. 7 light source, 4 sets of LED light (Life up to 25000 times), 3 sets of fluorescent light source.
3. Display the use time and numbers of every light source.
4. Adjustable illumination light.
5. Automatic switch among light sources, with metamerism function.
6. No warm-up time or flickering which insures quick and reliable color judgment.
7. Economic power consumption and low heat generation for high light efficiency.
8. Name of light source can be changed, easy to add light.
9. Metal box, durable in use.
Light source:
D65 International standard Artificial Daylight
Color temperature: 6500K Power: 18W
TL84 Applied to stores in Europe, Japan and China
Color temperature: 4000K Power: 18W
CWF (Cool White Fluorescent) American Standard
Color temperature: 4150K Power: 18W
F "Sun-setting Light Yellow" incandescent light source(imitation of sunset)
Color temperature: 2700K Power: 40W
UV Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments
Wavelength: 365nm Power: 18W
A American shopwindow spotlight
Color temperature：3000K Power：60W
