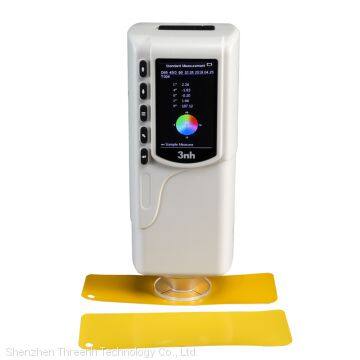

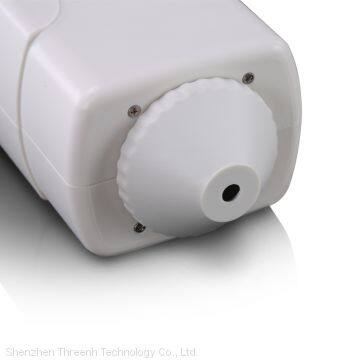

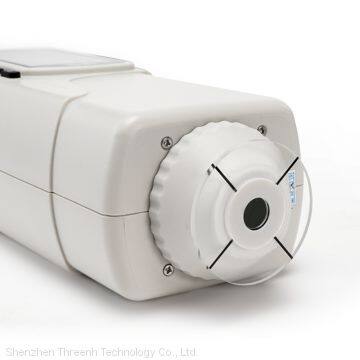

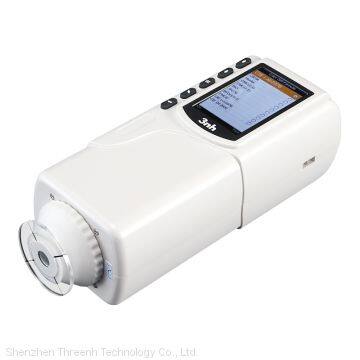

3nh Colorimeter Portable Economic Accurate Color Difference Analyzer
- 10000 Piece / Pieces per Month
- Shenzhen, China
- T/T Credit Card PayPal Other
- 2 days
- Winner3005 dry particle micron measuring instruments for abrasive powder test
- Winner2000ZD laser size analysis equipment-winner
- Winner2000ZD particle measurement & analysis instruments
- Winner2000ZD particle fully automatic analyzer
- Winner312 Spray Laser Particle Size instrument
- Winner312 Spray Laser Particle Analysis Instrument
Product Details
Brand Name: | 3NH | Place of Origin: | China | Model Number: | NR series |
Product Description
Company Brief Introduction:
Shenzhen Threenh Technology Co., Ltd.(Hereinafter referred to as 3nh) is a high-tech enterprise. We've been researching, developing, producing and marketing photoelectric detection products since 1998.
3nh team has strong capability to design, develop and produce in photoelectric detection technology field and color management field.
3nh products obtain a large number of innovation patents, core technologies and intellectual property rights. They are widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory.
Our products are exported around the world and customization service is also available. Please feel free to contact us for more cooperation discussing.
Model | NR145 | NR20XE | NR10QC | NR200 | NR110 | NR60CP | NR100 |
Optical Geometry | 45°/0° | 45°/0° | 8°/D | 8°/D | 8°/D | 8°/D | 8°/D |
Standards compliant | CIE No.15,GB/T 3978 | ||||||
Sensor | Silicon Photoelectric Diode Array | ||||||
Measuring Aperture | Φ8mm flat | Φ20mm | Φ4mm | Φ8mm | Φ4mmflat, Φ4mmsharp | Φ8mmflat, Φ4mmsharp | |
Color Space | CIE LAB,XYZ,LCh | CIE LAB,LCh | CIE LAB,LCh,XYZ | CIE LAB,LCh,XYZ | CIE LAB, LCh, XYZ CIE RGB, CIE LUV | CIE LAB | |
Observer | CIE 10° Standard observer | ||||||
Illuminant | D65 | D65, A, C, D50, F2, F6, F7, F8, F10, F11, F12 | D65 | ||||
Displayed Data | Chromaticity Values, Color Difference Values, Pass/Fail Result, Color Offset/Deviation Direction | ||||||
Measurement Time | 1.5s | ||||||
Repeatability | ΔE*ab Within 0.08(average value for 30 times) | ΔE*ab 0.03 | ΔE*ab 0.08 | ΔE*ab 0.08 | ΔE*ab 0.03 | ΔE*ab 0.08 | |
Errors Between Each Equipment | ΔE*ab Within 0.4(average value for measuring BCRA series II 12pcs palettes) | ||||||
Size | 205X67X80mm | 205X70X100mm | 205X67X80mm | ||||
Weight | About 400g(including battery) | 500g | |||||
Battery Performance | Rechargeable Li-on Battery, 3.7V@3200mAh | ||||||
Lamp Life | 5 years, more than 1.6 million measurements | ||||||
Display | TFT Color 2.8inch@(16:9) | ||||||
Interface | USB Standard: 100, Standard: 100, Standard: 100, Standard: 100, Standard: 100, | ||||||
Data Storage | Standard: 100, Sample: 20000 | Standard: 100 Sample: 10000 | Standard: 100 Sample: 20000 | Standard: 100 Sample: 20000 | Standard: 100 Sample: 20000 | Standard: 100 Sample: 10000 | |
0~40oC(32~104°F) | |||||||
Storage Environment | -20~50oC(-4~122°F) | ||||||
PC Software | CQCS3 software | No software | CQCS3 software | CQCS3 software | CQCS3 software | / | |
Standard Accessories | Power adapter, manual, quality management software (official website download), USB cable, wristband | ||||||
Optional Accessories | Micro Printer, Powder Test Box |
