3NH 45°/0° 8mm Aperture Spectrophotometer Precise Color Tester in Durable & High Quality
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
3nh
Place of Origin:
China
Model Number:
NS800
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen, China
Delivery Detail:
2 days
Related Products
-
3NH D/8° Spectrophotometer 8mm Aperture High Accurac Colorimeter With Long WarrantyNegotiableMOQ: 1 Piece -
3NH D/8° Spectro Colorimeter 4mm Aperture Accurate Color Analyzer for Cloth Metal Liquid MasterbatchNegotiableMOQ: 1 Piece
-
3NH 45°/0° Spectrophotometer 8mm Aperture Traffic Sign Measurement Version Portable ColorimeterNegotiableMOQ: 1 Piece
-
3NH UV Grating Spectrophotometer 8/4mm Aperture High Accuracy Instrument for Plastic Paint Printing TextileNegotiableMOQ: 1 Piece
-
3NH Color Spectrophotometer With Customized Aperture High Accuracy Instrument for Plastic Paint Printing TextileNegotiableMOQ: 1 Piece
Brand Name
3nh
Place of Origin
China
Model Number
NS800
Introduction:

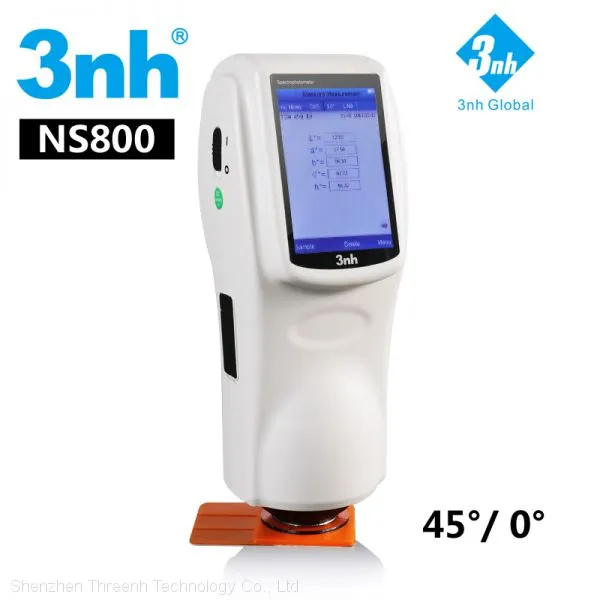

NS800 spectrophotometer uses the principle of combination LED precision spectroscopy, separates the light according to a certain wavelength interval, and adopts groups of sensor array to perform sensitive analysis. NS800 spectrophotometer with higher accuracy is very sensitive to any colors. It not only can measure L*ab value and delta E value accurately, but also can display spectral reflectance curve which can realize color matching function and calculate the real parameters of various color formulas.
Product Features
1. Aesthetic design perfectly combined with ergonomics structure.
2. 45/0 geometrical optics structure, comply with CIE, ISO, ASTM, DIN standard.
3. 3.5 inch large capacitive touch screen.
4. Two standard observer perspectives, multiple light sources modes, a variety of color systems.
5. The repeatability ΔE*ab is within 0.04, the errors between each instrument ΔE* ab is less than 0.2.
6. Large capacity storage, can save more than 10000 data.
7. PC software with powerful extension functions.
8. High hardware configuration with a number of innovative technologies.
9. Oversized integrating sphere, more effective homogenization ray of lights and precise measurement.
10. 15° oblique angle screen, more in line with the human eye observation.
Application Industry
NS800 spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It can measure reflectance spectrum and other color index precisely. NS800 spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.
NS800 Spectrophotometer Specifications
| Model | NS800 |
| Illumination/observation system | 45/0 method (45 ring-shaped illumination, vertical viewing), Comply with CIE No.15，GB/T 3978 |
| Integrating sphere Size | Φ58mm |
| Light Source | combined LED sources |
| Sensor | Silicon photodiode array |
| Wavelength range | 400~700nm |
| Wavelength interval | 10nm |
| Reflectance range | 0~200% |
| Measuring Aperture | Φ8mm |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV |
| Color difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00 |
| Other Chromaticity Data | WI(ASTM E313，CIE/ISO, AATCC, Hunter), YI(ASTM D1925，ASTM 313), TI(ASTM E313，CIE/ISO), Metamerism Index (Mt), Color Stain, Color Fastness |
| Observer | 2°/10° |
| Illuminant | D65，A,C,D50，D55，D75，F2，F6，F7，F8，F10，F11,F12 |
| Display Data | Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation |
| Measurement Time | 1.5s |
| Repeatability | Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%) |
| Colorimetric Value | Standard deviation within Delta E*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.) |
| Inter Instrument Agreement | Within Delta E*ab 0.2 (Average for 12 BCRA Series II color tiles) |
| Dimension | L*W*H=90*77*230mm |
| Weight | 600g |
| Battery | Li-ion battery. 5000 times within 8 hours |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Display Screen | TFT 3.5inch, Capacitive Touch Screen |
| Interface | USB/RS-232 |
| Data Memory | 1000 Standards, 15000 Samples |
| Operating Temperature | 0~40℃(32~104°F) |
| Storage temperature | -20~50℃(-4~122°F) |

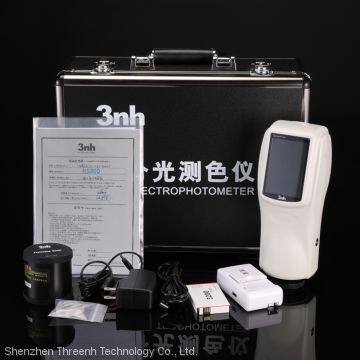

| Standard Accessory | Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap |
| Optional Accessory | Micro Printer, Universal Test Compon |
| Others | Provide complete spectrum reflectance curve, Input L, a, b value manually |
| Notes | The specifications are subject to change without notice |
