Description

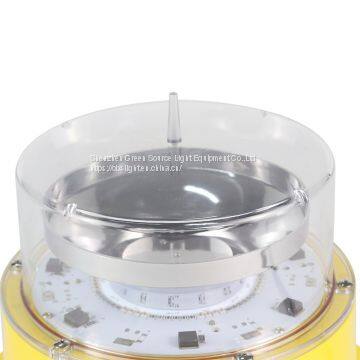

GS-MI/D medium-intensity double color aviation obstruction Light, its base is caste by high intensity aviation aluminum with full sealed structure;Light source adopts high efficient LED chip , which has the high light intensity, long service life, lamp shade adopts PC materials, which has strong ability of corrosion, anti-UV, anti-shock;intelligent circuit design,it emitted white light at daytime and change to red light automatically at night, control circuit has strong ability of lighting protection and with anti-surge protection device, it can adapt to extremely bad working environment.This lamp provide many kinds of function, user can adjust as require.
Specification
Name |
Parameter |
FAA Standard |
L-864/865 |
Type |
GS-MI/D |
Power voltage |
AC180V~264V |
Power Supply Frequency |
50HZ～60HZ |
Average power consumption |
≤20W |
Flash rate |
red light:20~40times/min |
Continuous working time |
200ms at night, 100ms at daytime |
Light intensity |
2000cd （±25%）～20000cd （±25%） |
Horizontal Out-put |
360° |
Vertical Divergence |
≥3° |
Service Life of the Light Source |
≥20years |
Emitting Color |
White at daytime,red at night |
Overall Size(mm) |
255mm×255mm×210mm |
Installation Size(mm) |
￠234mm×M8 |
IP Protection |
IP68 |
Function&Features
l The shell adopts high intensity aviation aluminum to cast, with full-seal structure.
l With CREE chip, which has the specific of high light intensity, low power consumption, long service life.
l Independent designed patent condensing lens, the field angle follow the standard of IAA,ICAO.
l Lamp shade adopts tempered PC material,which has strong ability of corrosion, anti-UV, anti-shock.
l With anti-surge protection device,it can adapt to extremely bad working environment.
l Adopts advanced technology of stoving varnish, which provide excellent heating dispersion, it can reduce the volume and weight of the light.
l Offer anti-shock,lighting protection,light fastness, rain and snow resistance function.
l With over-current protection function.
l Customizable GPS function.
Usage notice
l Don't use any out of nominal voltage,or will destroy equipment
l After install and adjust product function must be check the waterproof circle tighten the screws, in order to avoid water.
l Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.
l After finished the installation, the personnel must check whether the device is in a good waterproof processing and whether the screw spikes are tightened.
l Non-professional workers can not do the device maintenance, in order not to expand the error and be hurt.
Application
l Block
l Airport
l High Mast lamp
l Chimney
l Bridge
l Iron tower
l Communication towers
l High rise building
