Description

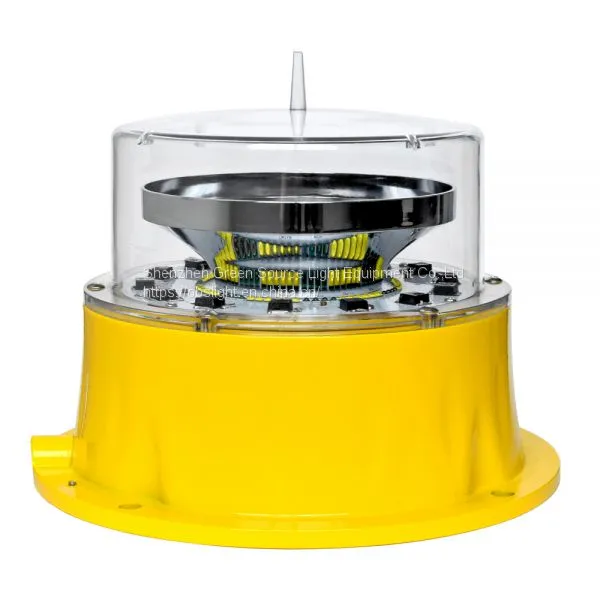

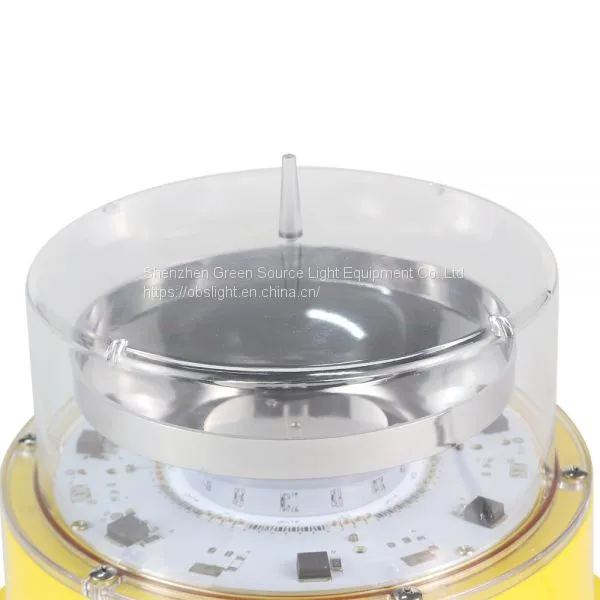

GS-MI/D medium-intensity double color aviation obstruction Light, its base is caste by high intensity aviation aluminum with full sealed structure;Light source adopts high efficient LED chip , which has the high light intensity, long service life, lamp shade adopts PC materials, which has strong ability of corrosion, anti-UV, anti-shock;intelligent circuit design,it emitted white light at daytime and change to red light automatically at night, control circuit has strong ability of lighting protection and with anti-surge protection device, it can adapt to extremely bad working environment.This lamp provide many kinds of function, user can adjust as require.
Specification
Parameter |
|
FAA Standard |
L-864/865 |
Type |
GS-MI/D |
Power voltage |
AC180V~264V |
Power Supply Frequency |
50HZ～60HZ |
Average power consumption |
≤20W |
Flash rate |
red light:20~40times/min |
Continuous working time |
200ms at night, 100ms at daytime |
Light intensity |
2000cd （±25%）～20000cd （±25%） |
Horizontal Out-put |
360° |
Vertical Divergence |
≥3° |
Service Life of the Light Source |
≥20years |
Emitting Color |
White at daytime,red at night |
Overall Size(mm) |
255mm×255mm×210mm |
Installation Size(mm) |
￠234mm×M8 |
IP Protection |
IP68 |
Optically Controlled Ambient Brightness |
50/100Lux |
Ambient Temperature |
-50℃～65℃ |
Net Weight |
5.5kg |
Anti-Wind Ability |
80m/s |
Function&Features
l The shell adopts high intensity aviation Aluminum to cast, with full-seal structure.
l With CREE Chip, Which has the specific of high intensity, low power consumption , long service life.
l Independent researching and developing advanced optical system, field angle follow FAA and ICAO requirements.
l Lamp shade adopts PC material, which has strong ability of corrosion, anti-UV, anti-shock;
l With anti-surge protection device,it can adapt to extremely bad working environment.
l Adopt advanced high thermal conductivity baking paint technology, provide excellent heat dispersion, it can reduce lamp volume and weight.
l With the impact resistance, anti lightning, resistant to sunlight, anti snow, can resist typhoons, hail and other severe weather
l With over-current protection function.
l Customized GPS function.
