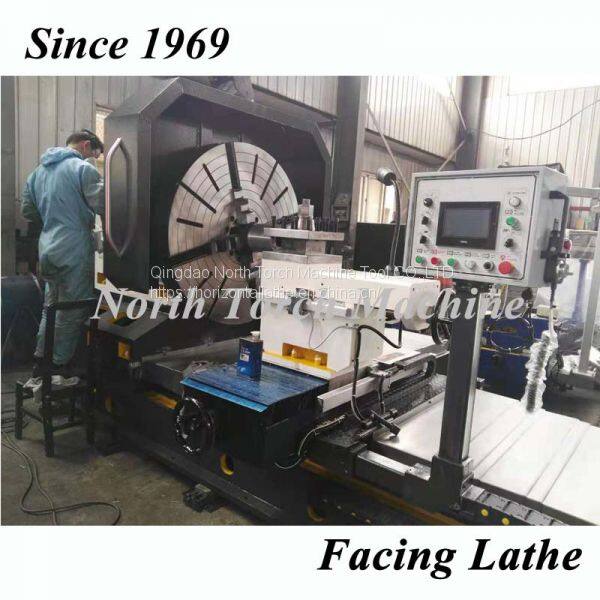

Flat Bed Engine Facing in Lathe Machine With 2 Years Warranty

FOB Price

US$ 1 - 10000 / Unit

1 Unit(Min. Order)

Port Qingdao,China
Payment TermsT/T
Delivery Detail2 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	NTM or customized lathe brand is also available	Place of Origin	China
Model Number	CK64125 CK61160 CK64200 CK64250 CK64300 CK64500	Type	Horizontal
Certification	ISO9001, CE, EAC, BV	After-sales Service Provided	Engineers available to service machinery overseas
Weight	15T	Dimension(LWH)	560024002300
Voltage	380V, 415V, 220V according to customer local request	Condition	New
Power(W)	15KW	Automatic Grade	Automatic
CNC or Not	CNC	Max. Swing Diameter	1600 mm

Product Description

Economic Facing Lathe , Flange turning lathe, impeller turning lathe
For Turning Auto Spare Parts, Alloy wheel,Tube Plate,Tire Mold,Wheel Hub Turbine,Diameter 2000 mm Flange,Oil Pan,etc
Exported to Norway, Chile, Pakistan, Thailand, Georgia, Iran,Mexico.

More than 50 years' experience in machinery industry since 1960s.

Manual Control,FANUC ,SIMENS or Chinese Brand system (Optional)

Base adopts triangular guide design

Reasonable structure

High performance with low cost

Maximize Customer's Profitability under the minimum invest cost compared with other competitors.

We are specialized in designing and manufacturing customized lathes for over 20 years , if you have special request and demands, please feel free to contact us.

Application: The base guide of floor-type lathe adopts rectangular structure, which ensures a large span and high rigidity. It is very suitable for low speed and high load cuttings. This machine has a high carrying capacity, high rigidity, optimal appearance design and easy operation. It is widely used for machining neutral parts with large diameter, such as tire mold, large flange tube plate, turbine parts, end enclosure, etc. It is also extensively applicable for manufacturing the parts of chemical industry, heavy machinery, mining and railways equipments and aviation industry.

2. Standard Technical Parametes

Specifications of End Facing Lathe
Name	Unit	CK64125	CK64160	CK64200	CK64250	CK64300
Swing Diameter over Machine Bed	mm	φ1250mm	φ1600mm	φ2000mm	φ2500mm	φ3000
Chuck Diameter	mm	φ1000mm	φ1250mm	φ1600mm	φ2000mm	φ2500mm
Chuck-jaw seat length	mm	Embedded	Embedded	500mm	500mm	500mm
Work-piece Length	mm	500mm	750mm	750mm	1000mm	1000mm
Work-piece Weight	T	2T	2T	3T	3T	5T
Spindle Diameter	mm	φ190mm	φ200mm	φ220mm	φ220mm	φ260mm
Spindle Speed	r/min	10-200 r/min	4-160 r/min	4-160 r/min	3-106 r/min	3-106 r/min
X Axis Stroke	mm	625mm	800mm`	1000mm	1250mm	1500mm
Z Axis Stroke	mm	500mm	750mm	1000mm	1000mm	1000mm
X Axis Rapid Feed Speed	mm/min	2500mm/min	2500mm/min	2500mm/min	2000mm/min	2000mm/min
Z Axis Rapid Feed Speed	mm/min	2000mm/min	2000mm/min	2000mm/min	2000mm/min	2000mm/min
Cutting Tool Carriage Size		240*240	280*280	300*300	300*300	300*300
Cutting Tool Shank Size	mm	32*32mm	40*40mm	40*40mm	40*40mm	40*40mm
Feed Control		Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor
Motor Parameters
Main Motor Power	KW	15KW	18.5KW	18.5KW	22KW	37KW
Feed Motor of X Axis	KW	2.3KW	2.3KW	2.3KW	2.3KW	2.3KW
Feed Motor of Z Axis	KW	2.3KW	5.5KW	5.5KW	5.5KW	5.5KW
Lubrication Motor Power	KW	0.37KW	0.37KW	0.37KW	0.55KW	0.55KW
Machine Accuracy
Cylindricity	mm	0.03/300mm	0.03/300mm	0.03/300mm	0.03/300mm	0.03/300mm
Flatness	mm	0.03/300mm	0.03/300mm	0.03/300mm	0.03/300mm	0.03/300mm
Roughness	Ra	Ra3.2	Ra3.2	Ra3.2	Ra3.2	Ra3.2
Machine Dimensions	mm	318019101870	394019801900	419026702450	425027702800	440033003300
Machine Weight	T	7T	9.5T	12T	14T	16T

3. After -salse Service and Maintenance

1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.

2. Warranty period: One year after acceptance of the lathe.

3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.

4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.

5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.

For more details, please feel free to contact us. Thanks!
