Economic Flange Turning Lathe Machine With 2 Years Quality Warranty

FOB Price

US$ 1 - 10000 / Unit

1 Unit(Min. Order)

Port Qingdao,China
Payment TermsT/T
Delivery Detail2 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	NTM or customized lathe brand is also available	Place of Origin	China
Model Number	CK6020 CK6025 CK6030 CK6035	Type	Horizontal
Certification	ISO9001, CE, EAC, BV	After-sales Service Provided	Engineers available to service machinery overseas
Weight	15T	Dimension(LWH)	560024002300
Voltage	380V, 415V, 220V according to customer local request	Condition	New
Power(W)	22KW	Automatic Grade	Automatic
CNC or Not	CNC	Max. Swing Diameter	2000 mm

Product Description

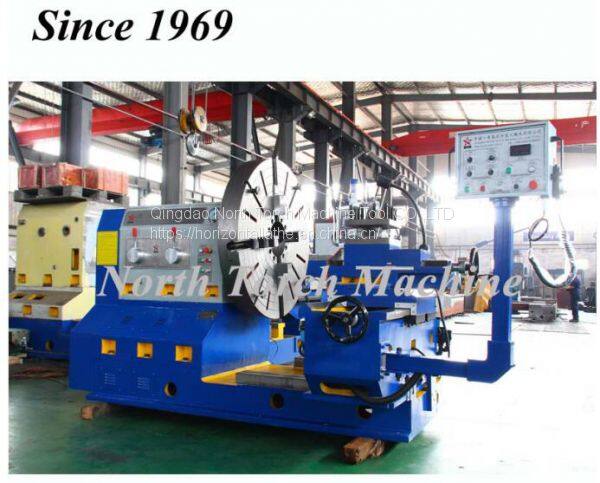

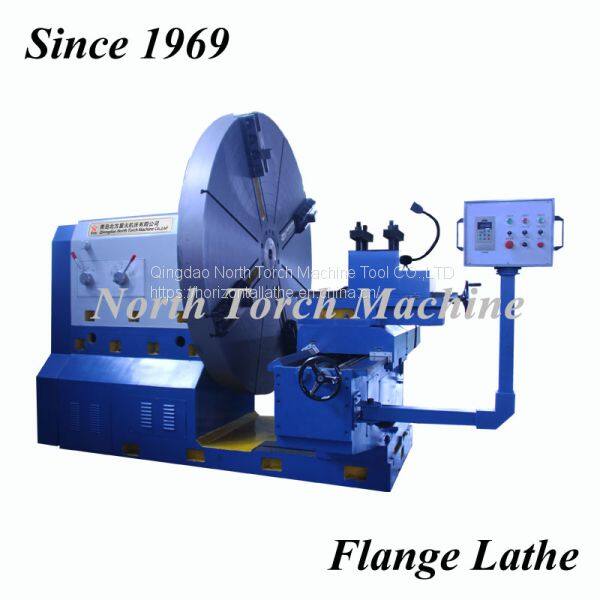

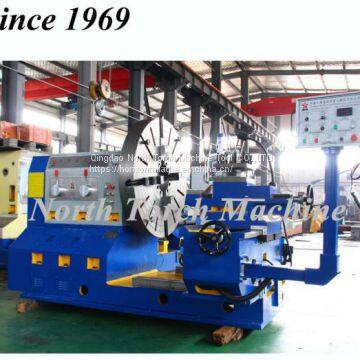

Professional Flange turning lathe, impeller turning lathe
For Turning Auto Spare Parts, Alloy wheel,Tube Plate,Tire Mold,Wheel Hub Turbine,Diameter 2000 mm Flange,Oil Pan,etc

Exported to Norway, Chile, Pakistan, Thailand, Georgia, Iran,Mexico.

More than 50 years' experience in machinery industry since 1960s.

Manual Control,FANUC ,SIMENS or Chinese Brand system (Optional)

We have our own foundry which can contorl the casting quality very well

Professional machining equipments and inspection tool for lathe machine

Machine bed and headstock are one-piece castings

High performance with low cost

Maximize Customer's Profitability under the minimum invest cost compared with other competitors.

We are specialized in designing and manufacturing customized lathes for over 20 years , if you have special request and demands, please feel free to contact us.

Application: The base guide of floor-type lathe Flange Turning CNC Lathe adopts rectangular structure, which ensures a large span and high rigidity. It is very suitable for low speed and high load cuttings. This machine has a high carrying capacity, high rigidity, optimal appearance design and easy operation. It is widely used for machining neutral parts with large diameter, such as tire mold, large flange tube plate, turbine parts, end enclosure, etc. It is also extensively applicable for manufacturing the parts of chemical industry, heavy machinery, mining and railways equipments and aviation industry.

2. Standard Technical Parametes of Flange turning lathe machine

CK60 series - Flange Turning Lathe Floor Type CNC Lathe
Type	Unit	CK6016	CK6018	CK6020	CK6025	CK6030
Swing Diameter over machine bed	mm	φ1600mm	φ1800mm	φ2000mm	φ2500mm	φ3000
Chuck Diameter	mm	φ1000mm	φ1250mm	φ1600mm	φ2000mm	φ2500mm
Chuck jaw seat length	mm	400mm	400mm	500mm	500mm	500mm
Work-piece length	mm	500mm	500mm	500mm	750mm	1000mm
Work-piece Weight	T	2T	2T	3T	3T	3T
Spindle Diameter	mm	φ190mm	φ200mm	φ220mm	φ220mm	φ260mm
Spindle speeds	r/min	14-108r/min	14-108r/min	4-160r/min	4-106r/min	4-106r/min
X Axis Stroke	mm	800mm	900mm`	1000mm	1250mm	1500mm
Z Axis Stroke	mm	350mm	350mm	350mm	350mm	350mm
X Axis Rapid Speed	mm/min	2500mm/min	2500mm/min	2500mm/min	2500mm/min	2500mm/min
Z Axis Rapid Speed	mm/min	2000mm/min	2000mm/min	2000mm/min	2000mm/min	2000mm/min
Cutting Tool Carriage Size		300*300	300*300	300*300	300*300	300*300
Cutting Tool Carriage Size	mm	40*40mm	40*40mm	40*40mm	40*40mm	40*40mm
Motor Parameters
Main motor power	KW	11KW	11KW	15KW	18.5KW	22KW
Feed Motor Power of X Axis	KW	2.3KW	2.3KW	2.3KW	2.3KW	2.3KW
Feed Motor Power of Z Axis	KW	2.3KW	5.5KW	5.5KW	5.5KW	5.5KW
Lubrication Motor Power	KW	0.37KW	0.37KW	0.37KW	0.55KW	0.55KW

3. After -salse Service and Maintenance

1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.

2. Warranty period: One year after acceptance of the lathe, flange turning lathe, floor type lathe.

3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.

4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.

5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.

For more details, please feel free to contact us. Thanks!
