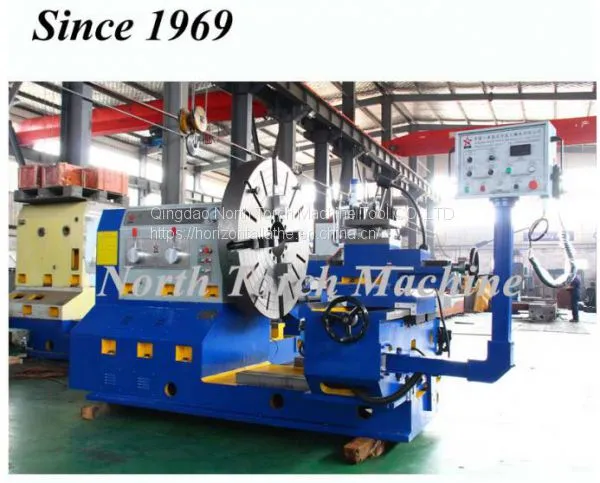

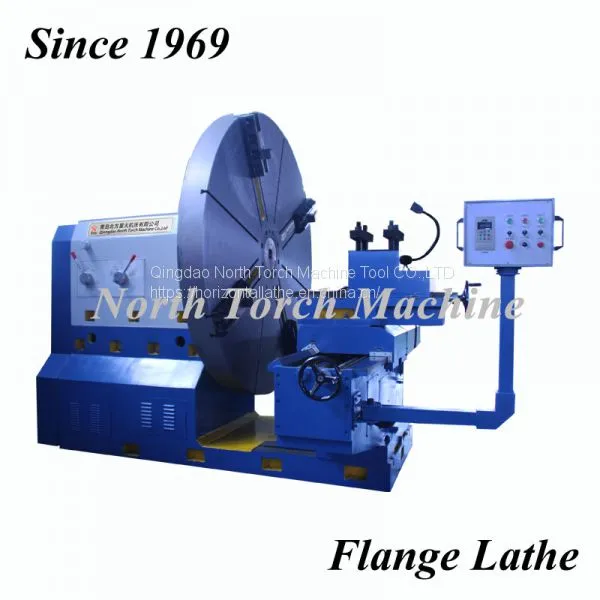

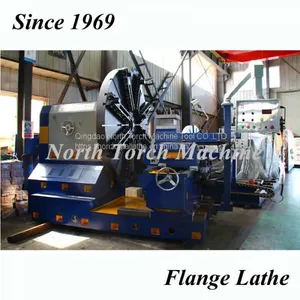

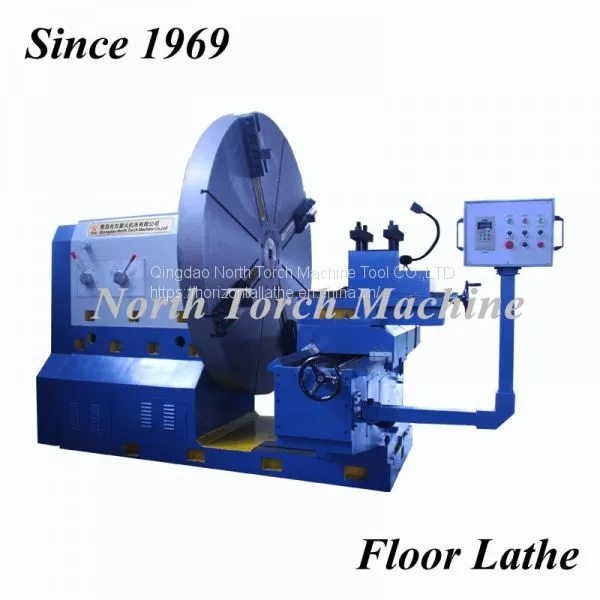

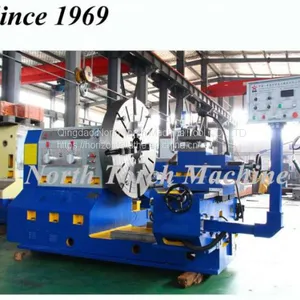

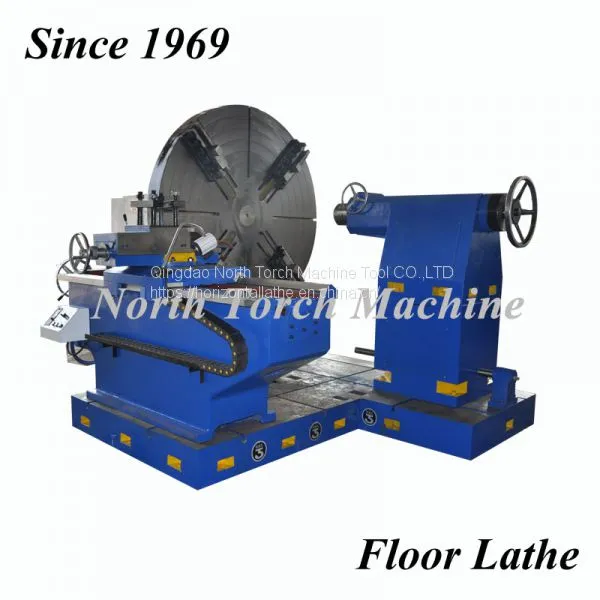

China Professional Flange Turning Lathe Machine
US$ 1 - 10000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
NTM or customized lathe brand is also available
Place of Origin:
China
Model Number:
CK6020 CK6025 CK6030 CK6035
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao,China
Delivery Detail:
2 days
Related Products
-
China Professional Flange Turning Lathe MachineUS$ 1 - 10000MOQ: 1 Unit -
China Professional Flange Turning Lathe MachineUS$ 1 - 10000MOQ: 1 Unit
-
Economic Flange Turning Lathe Machine With 2 Years Quality WarrantyUS$ 1 - 10000MOQ: 1 Unit
-
Economic Flange Turning Lathe Machine With 2 Years Quality WarrantyUS$ 1 - 10000MOQ: 1 Unit
-
Professional Heavy Duty Horizontal Roll Turning CNC Lathe for 40T Mill Roll, Cylinder.US$ 20000 - 300000MOQ: 1 Set
Brand Name
NTM or customized lathe brand is also available
Place of Origin
China
Model Number
CK6020 CK6025 CK6030 CK6035
Type
Horizontal
Certification
ISO9001, CE, EAC, BV
After-sales Service Provided
Engineers available to service machinery overseas
Weight
15T
Dimension(L*W*H)
5600*2400*2300
Voltage
380V, 415V, 220V according to customer local request
Condition
New
Power(W)
22KW
Automatic Grade
Automatic
CNC or Not
CNC
Max. Swing Diameter
2000 mm
Professional Flange turning lathe, impeller turning lathe
For Turning Auto Spare Parts, Alloy wheel,Tube Plate,Tire Mold,Wheel Hub Turbine,Diameter 2000 mm Flange,Oil Pan,etc
For Turning Auto Spare Parts, Alloy wheel,Tube Plate,Tire Mold,Wheel Hub Turbine,Diameter 2000 mm Flange,Oil Pan,etc
Exported to Norway, Chile, Pakistan, Thailand, Georgia, Iran,Mexico.
More than 50 years' experience in machinery industry since 1960s.
Manual Control,FANUC ,SIMENS or Chinese Brand system (Optional)
Machine bed and headstock are one-piece castings
High performance with low cost
Maximize Customer's Profitability under the minimum invest cost compared with other competitors.
We are specialized in designing and manufacturing customized lathes for over 20 years , if you have special request and demands, please feel free to contact us.
Application: The base guide of floor-type lathe Flange Turning CNC Lathe adopts rectangular structure, which ensures a large span and high rigidity. It is very suitable for low speed and high load cuttings. This machine has a high carrying capacity, high rigidity, optimal appearance design and easy operation. It is widely used for machining neutral parts with large diameter, such as tire mold, large flange tube plate, turbine parts, end enclosure, etc. It is also extensively applicable for manufacturing the parts of chemical industry, heavy machinery, mining and railways equipments and aviation industry.
2. Standard Technical Parametes of Flange turning lathe machine
3. After -salse Service and Maintenance
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe, flange turning lathe, floor type lathe.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
For more details, please feel free to contact us. Thanks!
Tag: Flange Turning Lathe, threading flange lathe, facing lathe, horizontal flange threading lathe
Manual Control,FANUC ,SIMENS or Chinese Brand system (Optional)
We have our own foundry which can contorl the casting quality very well
Professional machining equipments and inspection tool for lathe machine
Machine bed and headstock are one-piece castings
High performance with low cost
Maximize Customer's Profitability under the minimum invest cost compared with other competitors.
We are specialized in designing and manufacturing customized lathes for over 20 years , if you have special request and demands, please feel free to contact us.
Application: The base guide of floor-type lathe Flange Turning CNC Lathe adopts rectangular structure, which ensures a large span and high rigidity. It is very suitable for low speed and high load cuttings. This machine has a high carrying capacity, high rigidity, optimal appearance design and easy operation. It is widely used for machining neutral parts with large diameter, such as tire mold, large flange tube plate, turbine parts, end enclosure, etc. It is also extensively applicable for manufacturing the parts of chemical industry, heavy machinery, mining and railways equipments and aviation industry.
2. Standard Technical Parametes of Flange turning lathe machine
| CK60 series - Flange Turning Lathe Floor Type CNC Lathe | ||||||
| Type | Unit | CK6016 | CK6018 | CK6020 | CK6025 | CK6030 |
| Swing Diameter over machine bed | mm | φ1600mm | φ1800mm | φ2000mm | φ2500mm | φ3000 |
| Chuck Diameter | mm | φ1000mm | φ1250mm | φ1600mm | φ2000mm | φ2500mm |
| Chuck jaw seat length | mm | 400mm | 400mm | 500mm | 500mm | 500mm |
| Work-piece length | mm | 500mm | 500mm | 500mm | 750mm | 1000mm |
| Work-piece Weight | T | 2T | 2T | 3T | 3T | 3T |
| Spindle Diameter | mm | φ190mm | φ200mm | φ220mm | φ220mm | φ260mm |
| Spindle speeds | r/min | 14-108r/min | 14-108r/min | 4-160r/min | 4-106r/min | 4-106r/min |
| X Axis Stroke | mm | 800mm | 900mm` | 1000mm | 1250mm | 1500mm |
| Z Axis Stroke | mm | 350mm | 350mm | 350mm | 350mm | 350mm |
| X Axis Rapid Speed | mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2500mm/min |
| Z Axis Rapid Speed | mm/min | 2000mm/min | 2000mm/min | 2000mm/min | 2000mm/min | 2000mm/min |
| Cutting Tool Carriage Size | 300*300 | 300*300 | 300*300 | 300*300 | 300*300 | |
| Cutting Tool Carriage Size | mm | 40*40mm | 40*40mm | 40*40mm | 40*40mm | 40*40mm |
| Motor Parameters | ||||||
| Main motor power | KW | 11KW | 11KW | 15KW | 18.5KW | 22KW |
| Feed Motor Power of X Axis | KW | 2.3KW | 2.3KW | 2.3KW | 2.3KW | 2.3KW |
| Feed Motor Power of Z Axis | KW | 2.3KW | 5.5KW | 5.5KW | 5.5KW | 5.5KW |
| Lubrication Motor Power | KW | 0.37KW | 0.37KW | 0.37KW | 0.55KW | 0.55KW |
3. After -salse Service and Maintenance
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.2. Warranty period: One year after acceptance of the lathe, flange turning lathe, floor type lathe.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
For more details, please feel free to contact us. Thanks!
Tag: Flange Turning Lathe, threading flange lathe, facing lathe, horizontal flange threading lathe
