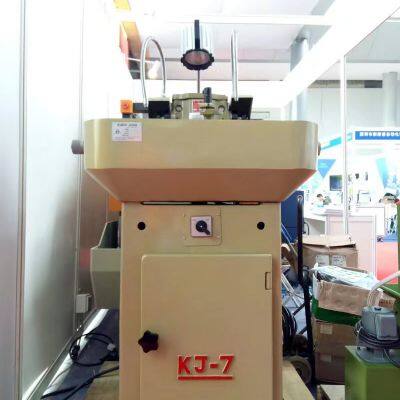

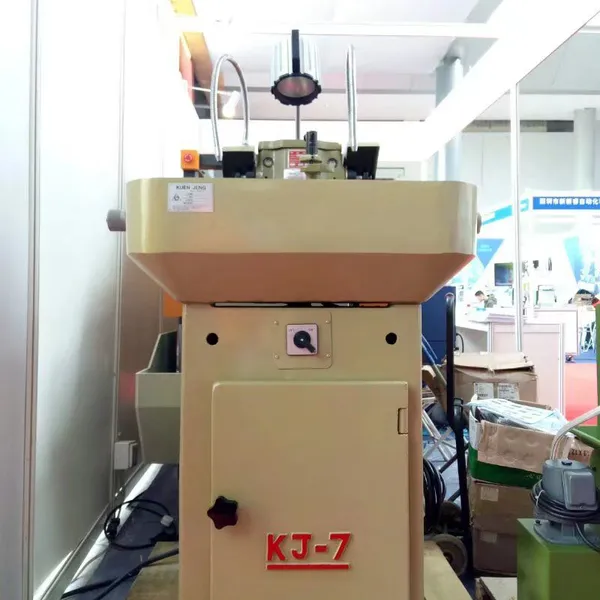

Help CenterKunzheng Kj-7 Universal Sharpening Machine Turning Tool Sharpening Machine
Related Products
-
Chipblaster B-SeriesUS$ 12800MOQ: 1 Case -
Jingcheng Horizontal Milling Machine Small Horizontal Milling Machine Manufacturer Direct SalesUS$ 1100MOQ: 1 Case
-
Jingcheng Small Horizontal Milling Machine, Yb-214 Horizontal Milling MachineUS$ 2000MOQ: 1 Case
-
Yb-216 Horizontal Milling Machine, Jingcheng Small Horizontal Milling MachineUS$ 2600MOQ: 1 Case
-
Jingcheng Lathe,YB-15US$ 1200MOQ: 1 Case
MERITS:
·Most suitably used for various carbide singlepoint turning tooto keep tool sharp.Equipped with double-faced diamond wheel for rough
grinding and lapping at a time.Directly ?correctly read out the preset angle,to adjust thefixture precisely for anale cutting.
.Infeed and reciprocating motion tool to obtain a perfectcutting surface and durable sand wheel.
SPECIAL ATTACHMENTS:(ROUND BARCRINDER)
Free angle adjustment benefits to grind for round shank toolincluding half-round drill, flat drill ,single-gear or double geamiller,etc.Grinding/lapping to be circular with handle orgrinding/lapping to be flat with reciprocating motion.
Model
Motor spmdie speed
Diamond wheel
Swiveling angle of toolholders
Shank size oftools Infeed strokeSpindle height
KJ-7
Main motor:1/2HP,Coolant pump:1/8HP3200rpm/60HZ,2600rpm/50HZ
Roughing:SDC-200
Lapping:SDC-600
150(0.D.)x36(1.D)x25mm(w)Horizontal Plane-90°(L&R)
Vertical Plane-32°(L&R)
Front & Rear-45°
Up to 20mm sq.(7/8" square)
15mm (5/8)"
1000mm
2
Dongguan Kunzheng Machinery Equipment Co., Ltd. is a wholly-owned Taiwanese enterprise; Headquartered in Taichung, Taiwan, we have been dedicated to the production and manufacturing of hardware machinery for over 60 years; Dongguan Kunzheng Machinery Equipment Co., Ltd. currently mainly produces Kunzheng brand series mechanical equipment and various brands of automatic lathe components. The Kunzheng equipment series produced by the company extensively uses relevant components from Japan, Sweden, and Italy to enhance the high quality, precision, performance, and rigidity of the machines. Meet the stricter processing conditions of our customers. Widely applied in aerospace industry, medical industry, automotive industry, semiconductor industry, 3C industry, clock and jewelry, electronic appliances, hardware, mold room and other processing industries.
Main production equipment series:
Kunzheng CNC lathes, horizontal lathes, and milling composite machines. Slant bed type CNC lathe, dual Y-axis CNC lathe. CNC walking machine, CNC convex machine, walking and cutting CNC lathe.
Kunzheng KJ-7 Universal Sharpening Machine is suitable for various CNC lathes, machining centers, TSUGAMI, CITIZEN, MIYANO, NOMURA, TORNOS, STAR, RIKEN, HANWHA, EUGEO CNC walking machines and other series of sharpening machines. Can install round bar accessories to process drill bits, round bars, and other workpieces. Kunzheng KJ-7 Universal Sharpening Machine Knife Holder. Kunzheng KJ-5, KJ-3 special sharpening machine for cutting tools.
Kunzheng desktop lathe series: K-15, K-25, K-32 clutch Kunzheng desktop lathes.
Kunzheng spindle: 15 type Kunzheng spindle, 20 type Kunzheng spindle, 25 type Kunzheng spindle. P8, P10 type walking machine spindle
Kunzheng drill bit grinder; Kunzheng milling tooth socket; Kunzheng fixed flat bottomed degreaser; KG-3T Kunzheng gear rolling machine.
The specifications of Jingcheng desktop lathes produced by Dongguan Kunzheng Machinery Equipment Co., Ltd. include: 15 type, 20 type, 25 type, 32 type, 45 type, 52 type, and 60 type. The product features: high speed, precision, high output, and excellent quality. The casting is made of HT250 material and undergoes quenching treatment with a hardness of HRC 40-45 to ensure product stability and durability. Grinding the bed track and trailer dovetail to ensure machining accuracy. Suitable for secondary processing, chamfering, drilling, tapping, cutting, deburring, car roundness, and car steps of various metal products, wooden products, clock and jewelry, hardware parts, electronics, semiconductors, etc; It is also the first choice for retrofitting non-standard automation equipment!
The specifications of small horizontal milling machines include YB-211, YB-214, and YB-216. This product features high precision, high production efficiency, easy operation, suitable for large-scale processing, and can be installed with various clamp bases for gas and manual on the workbench; Suitable for milling various metal and non-metal parts.
Among them, Kunzheng automatic lathe accessories involve various brand series of complete machine components such as Wangzhu, Mingyang, Licun, Changyong, Shengji automatic lathes, etc; In order to meet a more diverse range of customers. Our R&D team is more actively developing more exquisite and perfect hardware machinery and its spare parts.
Dongguan Kunzheng Machinery Equipment Co., Ltd. is your preferred high-quality supplier of whole plant equipment.
Dongguan Kunzheng Machinery Equipment Co., Ltd
Production and sales:
Hardware machinery: CNC horizontal lathe, turning milling composite machine CNC lathe, CNC walking machine, automatic lathe. Desktop lathes, universal sharpening machines, gear hobbing machines, Kunzheng spindles and other peripheral equipment.
Mold room equipment: milling machine, grinding machine, ordinary lathe, engraving machine, spark machine.
Automatic lathe accessories: Desktop lathe accessories: turning tool, cylinder clamp, chuck seat, wire tapping, drilling tail clamp
Taiwan diamond grinding wheel, Taiwan imported clutch brake pads, and opening and closing claws.
Machine tool accessories, hardware spare parts, mold accessories, specialized cutting fluids for mechanical equipment, etc.
