Heavy Duty Horizontal Lathe Machine for Turning Wind Power Shaft

FOB Price

US$ 1 - 999 / Unit

1 Unit(Min. Order)

Port Qingdao,China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	NTM or customized brand is also available	Place of Origin	China
Model Number	CG61160 CG61200 CG61300 CG61400	Type	Horizontal
Certification	CE, ISO9001, EAC,BV	After-sales Service Provided	Engineers available to service machinery overseas
Weight	20T	Dimension(LWH)	1200032003000
Voltage	440V, 380V, 220V, 110V according to customer's local request.	Condition	New
Power(W)	45KW	Automatic Grade	Automatic
CNC or Not	CNC	Max. Swing Diameter	1000 mm

Product Description

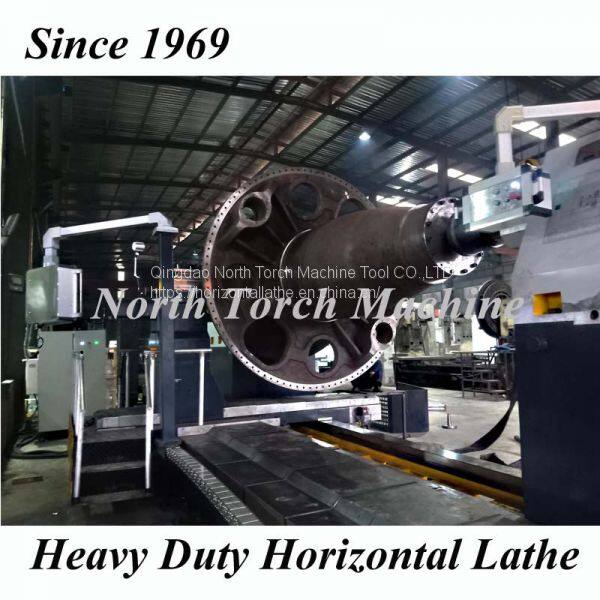

Wind Power Shaft Turning Heavy Duty Horizontal Lathe
For Turning Facing Sugar Mill Cylinder,Coal Graphite Electrodes,Shaft, Shipyard Propeller, Impeller, Tire Mold,Automobile Hub Turbine,Flange,Oil Pan,Shaft,etc

This is specially designed heavy duty horizontal lathe machine with milling & drilling functions. The customer use our horizontal lathe firstly for turning the cylinder body surface and facing excircle and machining the grooving, then drilling the holes on the whole body surface of cylinder. This kind of multi-funcitonal lathe machine help the user save clmaping time and greatly improve the machining efficiency by one lathe machine, besides, it also saves the input cost of CNC Machine Tools.

Our advantages:

More than 50 years'experience in machine industry since 1960s

We have our own foundry that can control the quality and production cost very well.

Professional Machining Equipments like gantry milling machine, 12 meters CNC Grinding Machine, CNC Boring machine, etc

Professional inspection equipments like CMM for headstock, Ultrasonic Flaw Detection for castings, Hardness tester, Dial Indicator, etc

Maximize Customer's Profitability under the minimum invest cost.
Application: This series heavy duty horizontal lathe can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, but also the external/internal cylindrical / conical/ spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body. What's more, it can also realize the constant speed cutting line. This series heavy duty horizontal CNC Lathe is extensively used in Automobile industry, minings and metallurgy, wind power, shipping building and transportation, and other machinery industry, etc.

2. Technical Parameters

Name		CG61100	CG61125	CG61160	CG61200	CG61250	CG61300
Description	Unit	CG61100	CG61125	CG61160	CG61200	CG61250	CG61300
Max. Swing Over Bed	mm	1000	1250	1600	2000	2500	3000
Max. Swing Over the skateboard	mm	650	800	1200	1650	1800	2800
Max. Weight of Work-piece	T	10	15	20	20	20	40
Max. Length of Work-piece	mm	3000-12000
Gears of Spindle Speed	/	Infinitely Variable Speed/step-less speed
Range of Spindle Speed	r/Min	10-300	10-200	10-160	4-80	4-80	1.6-63
Chuck Diameter	mm	800	1000	1250	1600	2000	2500
X,Z-Axis Feed Range	mm/Min	0-3000
Horizontal Stroke	mm	500	625	800	1000	1250	1000
Longitudinal Stroke	mm	3000-12000
Main Driving Motor	Kw	11	22	45	75	75	75
Cutting Force (Carriage)	Kn	4	6	20	40	40	60
Sleeve Diameter of Tailstock	mm	180	180	290	290	290	480
Spindle Diameter of tailstock	mm	125	125	160	160	160	240

3. After-sale Service and Maintenance

Exported to Chile, Mexico, India, Pakistan, Australia, Russia, Argentina.Etc used for machining Aluminum Mold, Tyre Mold,Automobile Wheel, Turbine, Shipyard Propeller, etc.

1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.

2. Warranty period: One year after acceptance of the lathe.

3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.

4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.

5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.

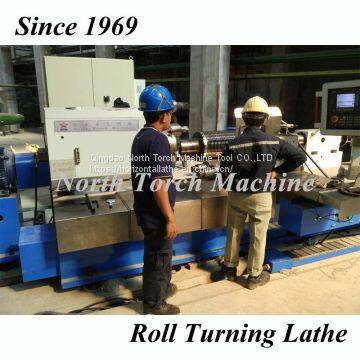

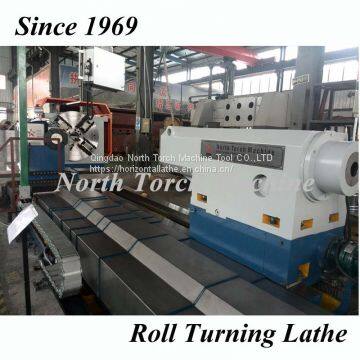

Other Machine Pictures--Professional Heavy Duty Roll Lathe Machine

Current Customers for Heavy Duty Horizontal CNC Lathe: Norway, Romania, India, Iran, Thailand, Singapore, Russia, Mexico,etc.

For more details, please feel free to contact us. Thanks!
