HTP-20 pneumatic inner tooth clutch
HTP pneumatic inner tooth clutch is linked by two ends of tooth engaged in axia movement after supplying air pressure, released by return springs after exhausting air pressure. Working thoery is similar with BTC pneumatic tooth clutch.

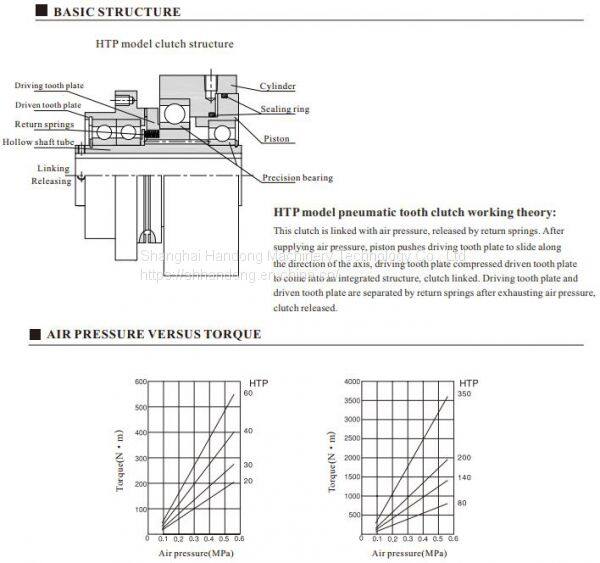

HTP model air shaft tooth clutch is linked with air pressure, released by return springs. After supplying air pressure, piston pushes driving tooth plate to slide along the direction of the axis, driving tooth plate compressed driven tooth plate to come into an integrated structure, clutch linked. Driving tooth plate and driven tooth plate are separated by return springs after exhausting air pressure, clutch released.
Tooth and tooth connect structure, it can transmit high power without slippage, following is the technical data of it:
