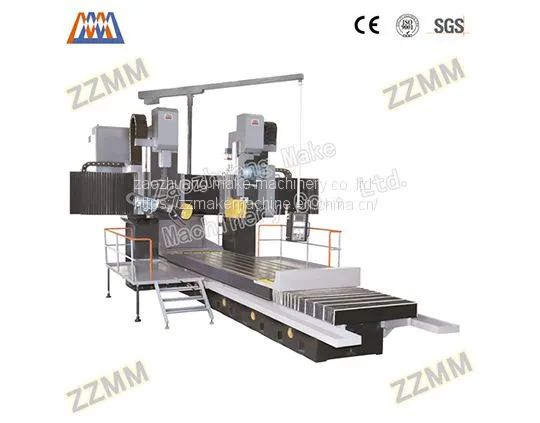

Help CenterStandard Type CNC Gantry Guideway Grinding Machine
Related Products
-
Vertical Drilling MachineNegotiableMOQ: 1 Piece -
Hydraulic Surface Grinder My1024ahr/Ahd Metal Grinder MachineNegotiableMOQ: 1 Unit
-
Hydraulic Hose Crimping Machine(MM-F51N)NegotiableMOQ: 2 Pieces
-
Digital Control Hydraulic Hose Crimping Machine (MM-F32D)NegotiableMOQ: 2 Pieces
-
Digital Hose Crimping Machine (MM-F20D)NegotiableMOQ: 2 Pieces
Features:
1. Composed of PLC,hydraulic transmission system,servo motor-reducer-ball screw drive system,box shape frame,etc.
2. Horizontal grinding head is mainly for grinding level plane(Grinding incline 90°of V type guideway is possible),vertical grinding head is for side plane(Electrical angle adjustment & hydraulic locking,grinding incline of V type guideway &swallow-tail slot at any angle is possible).
3. Gantry structure and close,strong & box structure composed of double column,beam & bed.Rectangular staged guideway with good mechanical property & high rigidity.
4. State-patented spindle for horizontal grinding head and roller bearings for vertical grinding head.
5. Stepless & stable table motion with low noise,independent hydraulic station with cooling unit.Long-range-control & stepless table moving speed with inching & auto function.
6. It is with auto lubrication and it stops & alarms automatically if oil not enough.
| Specifications | MK1630 | MK1640 | MK2040 | MK2060 | MK2080 | MK2440 | MK2460 | MK2480 | MK2860 | MK2880 |
| Max. Grinding width/length mm | 1600/3000 | 1600/4000 | 2000/4000 | 2000/6000 | 2000/8000 | 2400/4000 | 2400/6000 | 2400/8000 | 2800/6000 | 2800/8000 |
| Max. grinding height(H./V.) mm | 800/750 | 800/750 | 1200/1050 | 1200/1050 | 1200/1050 | 1200/1050 | 1200/1050 | 1200/1050 | 1500/1200 | 1500/1200 |
| Max. work-piece height mm | 800 | 800 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1500 | 1500 |
| Max. work-piece weight kg | 5000 | 6000 | 8000 | 10000 | 12000 | 10000 | 14000 | 18000 | 25000 | 30000 |
| Distance between columns mm | 1700 | 1700 | 2100 | 2100 | 2100 | 2500 | 2500 | 2500 | 3000 | 3000 |
| Table width/length mm | 1250/3000 | 1250/4000 | 1600/4000 | 1600/6000 | 1600/8000 | 2000/4000 | 2000/6000 | 2000/8000 | 2500/6000 | 2500/8000 |
| T-slot quantity/width | 7/28 mm | 7/28 mm | 9/28 mm | 9/28 mm | 9/28 mm | 9/28mm | 9/28mm | 9/28mm | 11/28mm | 11/28mm |
| Max. table travel mm | 3200 | 4200 | 4200 | 6200 | 8200 | 4200 | 6200 | 8200 | 6200 | 8200 |
| Table moving speed m/min | 5-18 | 5-18 | 5-18 | 5-18 | 5-18 | 5-18 | 5-18 | 5-18 | 5-18 | 5-18 |
| Spindle speed (H./V.) rpm | 1300/1450 | 1300/1450 | 1300/1450 | 1300/1450 | 1300/1450 | 1300/1450 | 1300/1450 | 1300/1450 | 868/970 | 868/970 |
| Sand-wheel size (O./W./I.) mm | φ500/75/φ203 | φ500/75/φ203 | φ500/75/φ203 | φ500/75/φ203 | φ500/75/φ203 | Φ500/75/203 | Φ500/75/203 | Φ500/75/203 | Φ600/100/203 | Φ600/100/203 |
| φ405/62/φ127 | φ405/62/φ127 | φ405/62/φ127 | φ405/62/φ127 | φ405/62/φ127 | Φ405/62/φ127 | Φ405/62/φ127 | Φ405/62/φ127 | Φ500/75/φ203 | Φ500/75/φ203 | |
| Main Motor power (H./V.)Kw | 11/7.5 | 11/7.5 | 11/7.5 | 11/7.5 | 11/7.5 | 11/7.5 | 11/7.5 | 11/7.5 | 22/11 | 22/11 |
| Dimensions (L./W./H.) mm | 12000/6000/6000 | 16000/6000/6000 | 16000/6500/6500 | 21000/6500/6500 | 25000/6500/6500 | 16000/7200/6500 | 21000/7200/6500 | 25000/7200/6500 | 21000/9000/6600 | 25000/9000/6600 |
