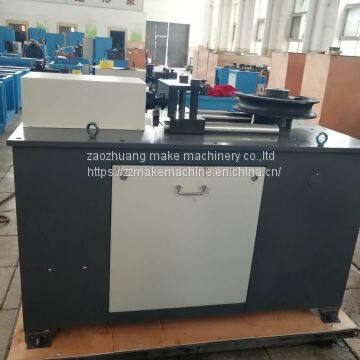

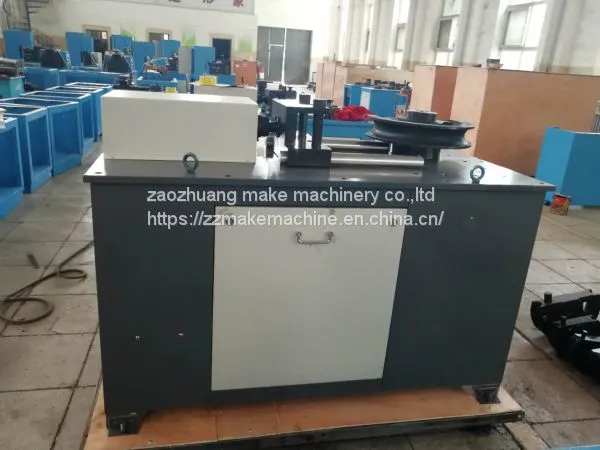

Help CenterPipe Bending Machine (JGWG-80Z)
Related Products
-
High Quality Metal Pipe Bender (JGWG-50Z)NegotiableMOQ: 1 Piece -
High Quality Metal Pipe Bender (JGWG-110Z)NegotiableMOQ: 1 Piece
-
High Quality Metal Pipe Bender (MMTB-50)NegotiableMOQ: 1 Piece
-
High Quality Metal Pipe Bender (JGWG-40Z)NegotiableMOQ: 1 Piece
-
Box/Square Type Column Vertical Drilling Machine (Z5132A)NegotiableMOQ: 1 Piece
The JGWG-80Z metal pipe benders designed,developed and manufactured by NFM.Includes mechanical drive and can make adjustments to workpiece by holding mechanically.Machine in JGWG series can bend such workpieces as low-carbon and stainless round tubes,square tubes,steel angles,I-shaped steelstripes and round steel bars to achieve your desired shapes. Being specialized equipment for construction and beautfication works today,the JGWG series are widely applied in the field of building construction,decoration industry,furniture building and garden construction. The equipment features "one-touth" operation on single workpiece and data-program controlled mass processing. Being easy to operate,reasonable in composition, and low power consumption with high work efficiency,the equipment is ideal for bending metal pipes.
| JGWG-80Z | |||
| Dimension of workpieces | Round pipe | Max. | Φ80 |
| Min. | Φ40 | ||
| Stainless steel pipe | Max. | Φ50.8 | |
| Min. | Φ32.2 | ||
| Square pipe | Max. | 80*80 | |
| Min. | 40*40 | ||
| Angle of bending | 180 | ||
| Rate of main shaft rotation r/min | 2 | ||
| Performance of motor | kw | 5.5 | |
| r/min | 1400 | ||
| v | 380 | ||
| hz | 50 | ||
| Hydraulic motor for specific purposes | kw | 1.5 | |
| r/min | 1400 | ||
| v | 380 | ||
| hz | 50 | ||
| Dimension after packing L*W*H/mm | 1580*880*1200mm | ||
| Net weigh | 950kg | ||
| Gross weight | 1050kg | ||
| Standard moulds | Φ76,Φ48.3 | ||
