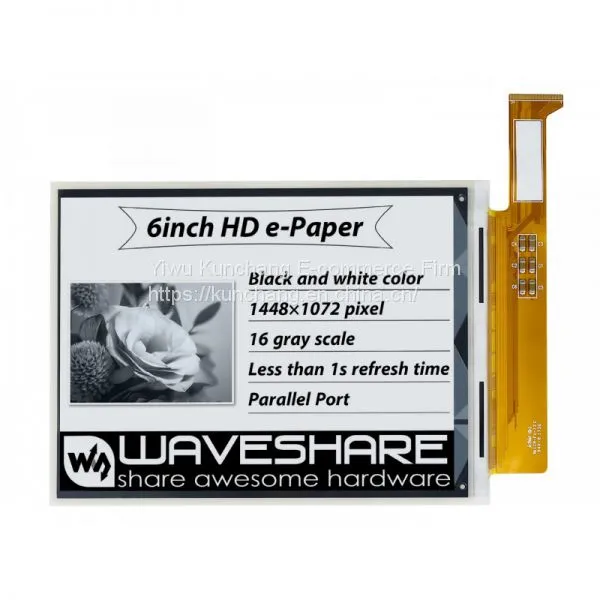

1448 x 1072 high definition, 6inch E-Ink raw display, black/white, 16 gray scale, without PCB
- 1000 Piece / Pieces per Month
- 800x600, 6inch E-Ink display HAT for Raspberry Pi, IT8951 controller, USB/SPI/I80/I2C interface
- Compute Module IO Board with PoE Feature, for Raspberry Pi CM3 / CM3L / CM3+ / CM3+L
- 13.3inch Magic Mirror, Voice Assistant, Touch Control computer panel
- EVK407I, STM32F4 Development Board
- XCore407I, STM32F4 Core Board
- MLX90640 IR Array Thermal Imaging Camera 32x24 Pixels 110 FOV
Product Description
Overview
This is an E-Ink raw display, 6inch, 1448×1072 high definition, communicating via parallel port, supports partial refresh.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
No backlight, keeps displaying last content for a long time even when power down
Low power consumption, basically power is only required for refreshing
Comes with development resources and manual (examples for Raspberry Pi/STM32)
Specifications
Operating voltage: 5V
Interface: parallel port
Outline dimension: 138.4mm × 101.8mm × 1.01mm
Display size: 122.4mm × 90.6mm
Dot pitch: 0.0845mm × 0.0845mm
Resolution: 1448 × 1072
Display color: black, white
Gray scale: 2-16 (1-4 bit)
Full refresh time:<1s
Viewing angle: >170°
Development Resources
Wiki : /wiki/6inch_HD_e-Paper_HAT
Selection Guide
PART NUMBER | COLORS | GREY SCALE | RESOLUTION | DISPLAY SIZE (MM) | OUTLINE DIMENSION (MM) | FULL REFRESH TIME (S) | PARTIAL REFRESH | INTERFACE |
---|---|---|---|---|---|---|---|---|
1.54inch e-Paper | black, white | 2 | 200×200 | 27.60 × 27.60 | 31.8 × 37.3 | 2 | √ | SPI |
1.54inch e-Paper (B) | red, black, white | 2 | 200×200 | 27.60 × 27.60 | 31.8 × 37.3 | 8 | × | SPI |
1.54inch e-Paper (C) | yellow, black, white | 2 | 152×152 | 27.51 × 27.51 | 31.8 × 37.3 | 27 | × | SPI |
2.13inch e-Paper | black, white | 2 | 250×122 | 48.55 × 23.71 | 59.2 × 29.2 | 2 | √ | SPI |
2.13inch e-Paper (B) | red, black, white | 2 | 212×104 | 48.55 × 23.71 | 59.2 × 29.2 | 15 | × | SPI |
2.13inch e-Paper (C) | yellow, black, white | 2 | 212×104 | 48.55 × 23.71 | 59.2 × 29.2 | 15 | × | SPI |
2.13inch e-Paper (D) | black, white | 2 | 212×104 | 48.55 × 23.71 | 59.2 × 29.2 | 2 | √ | SPI |
2.7inch e-Paper | black, white | 2 | 264×176 | 57.29 × 38.19 | 70.4 × 45.8 | 6 | × | SPI |
2.7inch e-Paper (B) | red, black, white | 2 | 264×176 | 57.29 × 38.19 | 70.4 × 45.8 | 15 | × | SPI |
2.9inch e-Paper | black, white | 2 | 296×128 | 66.89 × 29.05 | 79.0 × 36.7 | 2 | √ | SPI |
2.9inch e-Paper (B) | red, black, white | 2 | 296×128 | 66.89 × 29.05 | 79.0 × 36.7 | 15 | × | SPI |
2.9inch e-Paper (C) | yellow, black, white | 2 | 296×128 | 66.89 × 29.05 | 79.0 × 36.7 | 15 | × | SPI |
2.9inch e-Paper (D) | black, white | 2 | 296×128 | 66.90 × 29.06 | 79.0 × 36.7 | 2 | √ | SPI |
4.2inch e-Paper | black, white | 2 | 400×300 | 84.80 × 63.60 | 90.1 × 77.0 | 4 | × | SPI |
4.2inch e-Paper (B) | red, black, white | 2 | 400×300 | 84.80 × 63.60 | 90.1 × 77.0 | 15 | × | SPI |
4.2inch e-Paper (C) | yellow, black, white | 2 | 400×300 | 84.80 × 63.60 | 90.1 × 77.0 | 15 | × | SPI |
5.83inch e-Paper | black, white | 2 | 600×448 | 118.80 × 88.26 | 125.4 × 99.5 | 3.5 | × | SPI |
5.83inch e-Paper (B) | red, black, white | 2 | 600×448 | 118.80 × 88.26 | 125.4 × 99.5 | 14 | × | SPI |
5.83inch e-Paper (C) | yellow, black, white | 2 | 600×448 | 118.80 × 88.26 | 125.4 × 99.5 | 26 | × | SPI |
6inch e-Paper | black, white | 16 | 800×600 | 122.40 × 90.60 | 138.4 × 101.8 | <1 | √ | Parallel port |
6inch HD e-Paper | black, white | 16 | 1448×1072 | 122.40 × 90.60 | 138.4 × 101.8 | <1 | √ | Parallel port |
7.5inch e-Paper | black, white | 2 | 800×480 | 163.20 × 97.92 | 170.2 × 111.2 | 5 | × | SPI |
7.5inch e-Paper (B) | red, black, white | 2 | 800×480 | 163.20 × 97.92 | 170.2 × 111.2 | 16 | × | SPI |
7.5inch e-Paper (C) | yellow, black, white | 2 | 640×384 | 163.20 × 97.92 | 170.2 × 111.2 | 16 | × | SPI |
7.8inch e-Paper | black, white | 16 | 1872×1404 | 158.18 × 118.64 | 173.8 × 127.6 | <1 | √ | Parallel port |
9.7inch e-Paper | black, white | 16 | 1200×825 | 202.8 × 139.43 | 218.8 × 156.43 | <1 | √ | Parallel port |
10.3inch e-Paper (D) | black, white | 16 | 1872×1404 | 209.66 × 157.25 | 227.7 × 165.8 | <1 | √ | Parallel port |
12.48inch e-Paper | black, white | 2 | 1304×984 | 252.98 × 190.90 | 261.5 × 211.0 | <8 | × | SPI |
12.48inch e-Paper (B) | red, black, white | 2 | 1304×984 | 252.98 × 190.90 | 261.5 × 211.0 | <16 | × | SPI |
